Network ACCESS POINT DAP - X3060
Network
/ D-Link /
DAP - X3060
Spesification Network DAP - X3060
Maximize your performance with Wi-Fi 6 and easy-to-use management platform

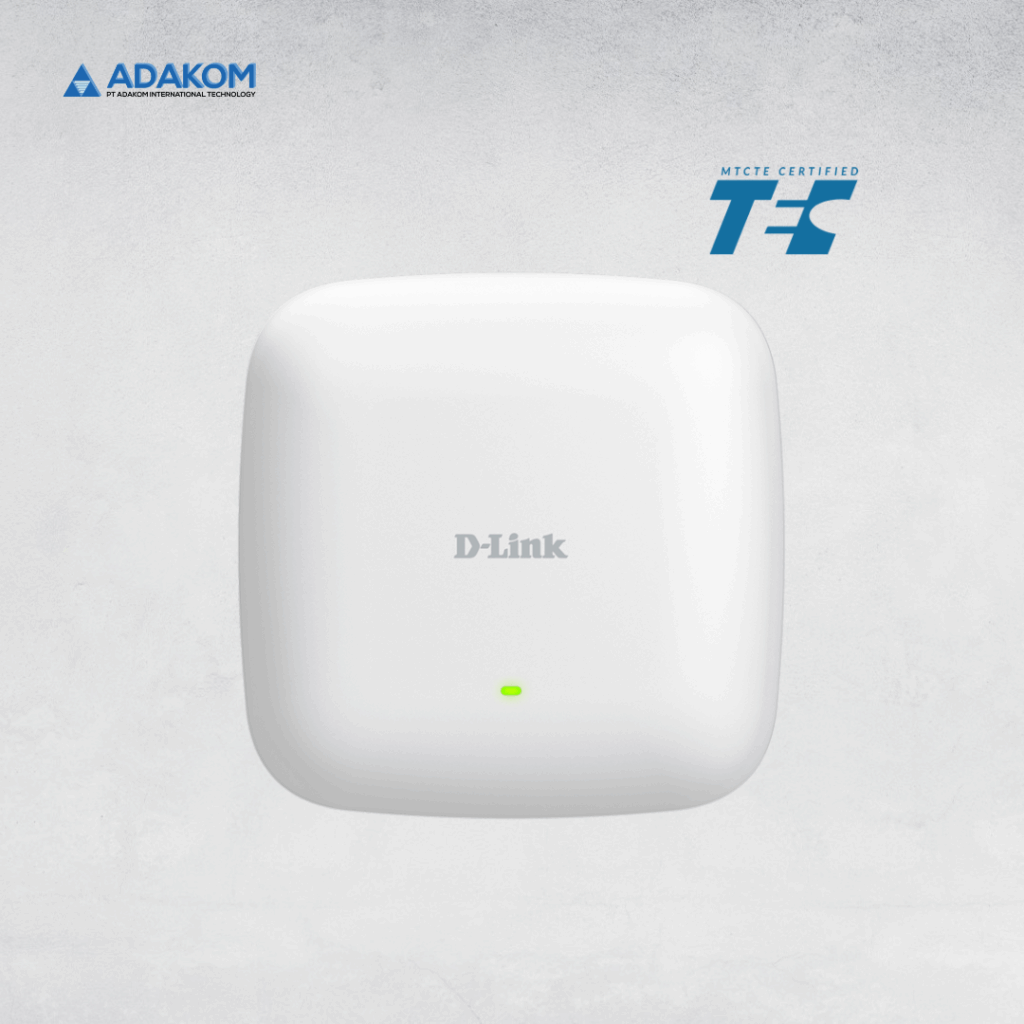

The D-Link AX3000 Wi-Fi 6 Ceiling Mount Access Point (DAP-X3060) is engineered to deliver next-generation wireless performance for businesses, institutions, and modern workspaces. With Wi-Fi 6 technology, it provides speeds of up to 3.0 Gbps, ensuring smooth connectivity for high-density environments such as offices, schools, hotels, and public venues. Its ceiling-mount design offers discreet installation while maximizing coverage and signal strength across large areas.

Equipped with dual-band 2×2 MIMO, band steering, and airtime fairness, the DAP-X3060 intelligently manages multiple devices, ensuring optimal performance and reduced latency. The 2.5 Gigabit Ethernet LAN port provides ultra-fast wired backhaul, while support for 802.3at Power over Ethernet (PoE) simplifies installation by eliminating the need for separate power cables. Flexible operating modes allow deployment as an access point, wireless client, or repeater, adapting to diverse networking needs.

For businesses, the customizable captive portal enhances guest Wi-Fi management, enabling branded login pages and secure access control. Combined with enterprise-grade reliability, the DAP-X3060 ensures seamless connectivity, scalability, and security — making it the ideal solution for organizations that demand high-speed, stable, and future-ready wireless infrastructure.

Optimised Wi‑Fi for a superior client experience.

The DAP-X3060 supports Band steering, 2×2 MU-MIMO and beamforming – all designed to work together to alleviate congestion.

And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation – allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.

Multiple Operation Modes

The DAP-X3060 can be configured to fit the needs of your network and optimise performance.

– Access point
– Wireless distribution system
(WDS) with access point
– WDS/bridge (no AP broadcasting)

Simple and clean installation, anywhere.

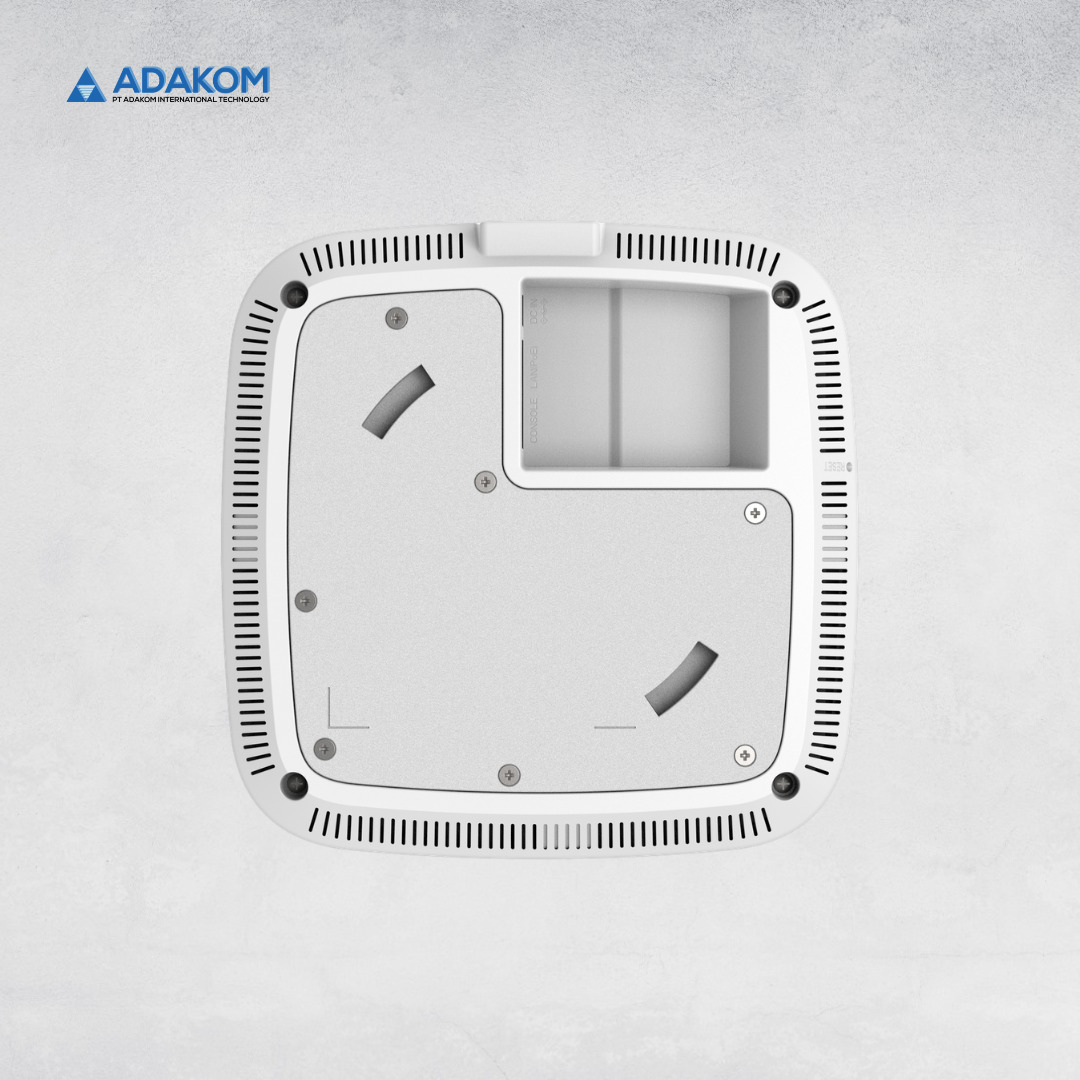

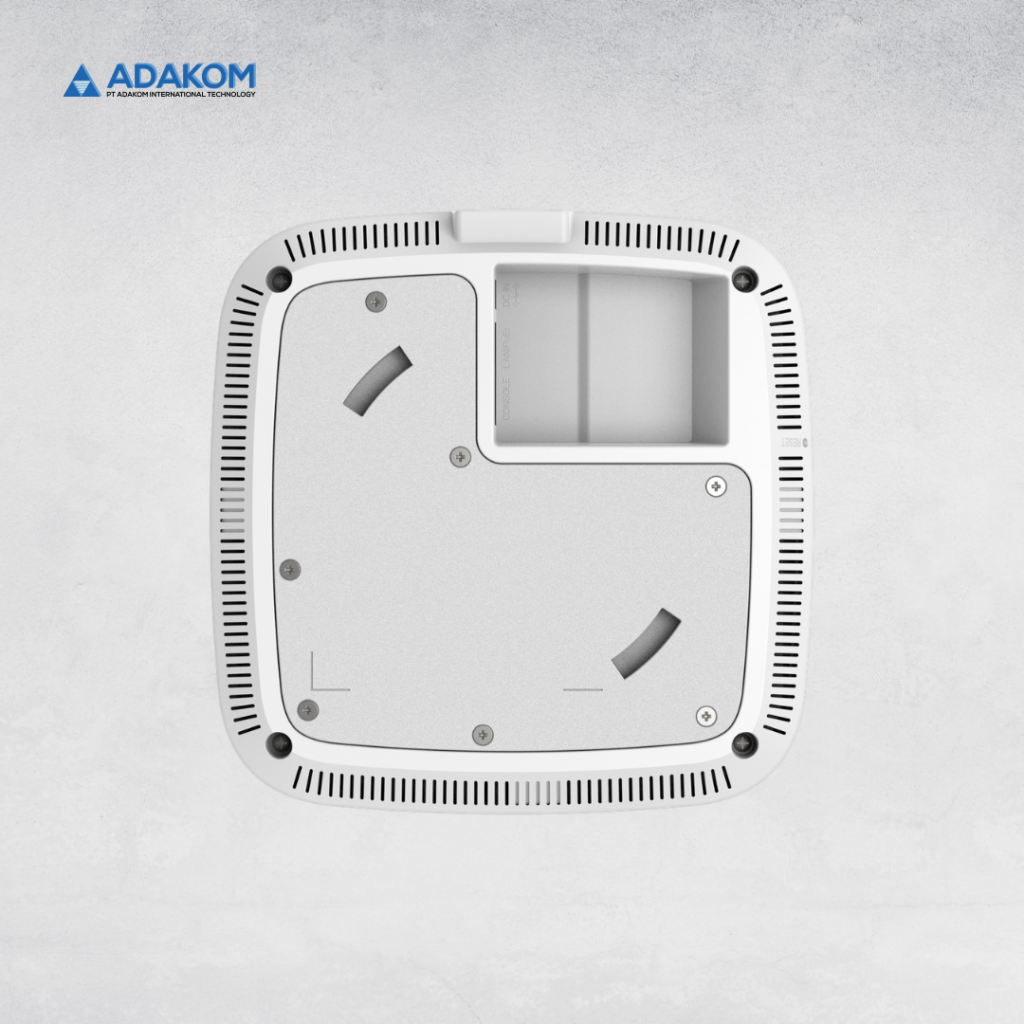

It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X3060’s PoE function allows for an easy installation. No need to run extra power lines and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

Manage your business network with powerful controls

The DAP-X3060 works with our Nuclias Connect software-based management platform, allowing you to manage and control your business network from anywhere with an internet connection. This enables easy access, automation, and network scalability.

With Nuclias Connect’s traffic analytics and status reports, insights derived from this data can be used to create business value. Traffic can be viewed across the entire network and down to the level of a single Access Point.

Comprehensive on‑site network management

Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access, and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.

Scale your Wi‑Fi alongside your business, from anywhere

Nuclias Connect is a comprehensive network management platform designed to administer D-Link’s access points and switches. This integrated solution, tailored for on-premises deployment, encapsulates a rich spectrum of functionalities aimed at enhancing network oversight and control.

Get your guests online through a captive portal

Not only can your guests connect using just their email address, Facebook or Google account, our Captive Portal also gives your business the opportunity to increase brand awareness, advertise promotions and collate user insights that enable businesses to better understand their customers.

Category : Network
Brand : D-Link
Product : DAP - X3060
Description

Features

High-Speed Wi-Fi 6 Access Point for Modern Networks



  • Wi-Fi 6 AX3000 Speeds Up to 3.0 Gbps for ultra-fast, reliable wireless connectivity.

  • 2.5 Gigabit Ethernet LAN High-speed wired backhaul for maximum performance.

  • Dual-Band 2×2 MIMO Intelligent band steering and airtime fairness for efficient device management.

  • Flexible Operating Modes Functions as an access point, client, or repeater to suit deployment needs.

  • 802.3at PoE Support Simplified installation with power delivered through Ethernet cable.

  • Customizable Captive Portal Branded guest Wi-Fi login pages with secure access control.

  • Ceiling-Mount Design Discreet installation with wide coverage for large areas.

  • Enterprise-Grade Reliability Built for scalability, stability, and long-term business use.

Features
DAP-X3060 Nuclias Connect AX3000 Access Point Specifications

DAP-X3060 – Nuclias Connect AX3000 Access Point

General

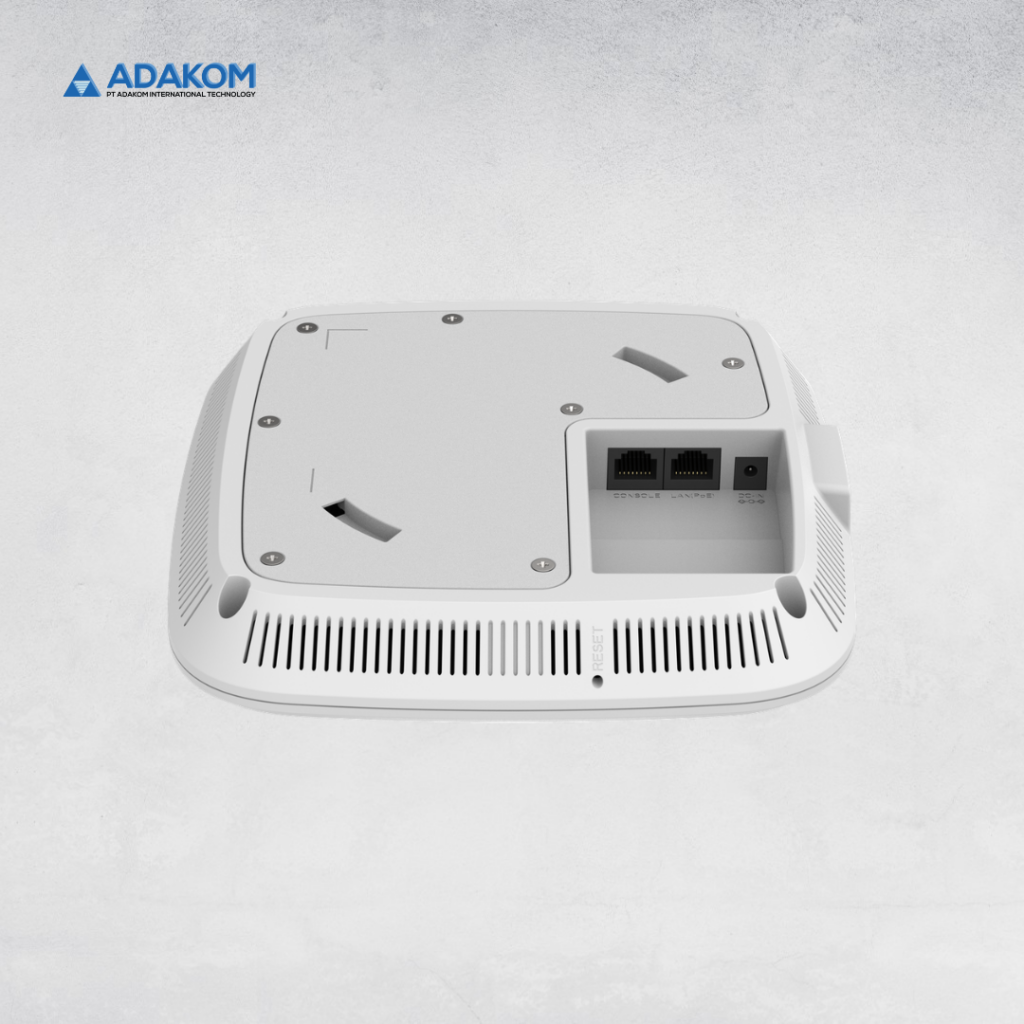

Device Interfaces1 x RJ45 console port, 1 x 10/100/1000/2500 Ethernet (PoE) LAN port, factory reset button, power input
LEDPower/Status
Antennas4 x internal antennas
Antenna Gain3 dBi (2.4 GHz), 3 dBi (5 GHz)
Maximum Output Power23 dBm (2.4 GHz), 22 dBm (5 GHz)
Data Signal RateUp to 574 Mbps (2.4 GHz), up to 2401 Mbps (5 GHz)

Functionality

StandardsIEEE 802.11a/b/g/n/ac/ax, IEEE 802.3u/ab, IEEE 802.3az Energy-Efficient Ethernet (EEE), IEEE 802.3at PoE
Operating Frequency2.4 - 2.483 GHz, 5.15 - 5.35 GHz, 5.47 - 5.85 GHz
Security ProtocolWPA/WPA2/WPA3™ Personal/Enterprise, WEP 64/128-bit, SSID broadcast disable, MAC address access control, internal RADIUS server

Software

Network ManagementWeb (HTTP), Secure Socket Layer (SSL), Traffic control, D-Link Nuclias Connect, D-View 8

Physical

Power Supply12V / 2.5A (optional power adapter), IEEE 802.3at PoE
Max. Power Consumption14.07 W by ADP, 16.7 W by PoE
MTBF>30,000 hours
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 65°C (-4°F to 149°F)
Operating Humidity10% to 90%
Storage Humidity5% to 90%
Weight612.4 g (1.35 lb)
Dimensions190 x 190 x 42.8 mm (7.48 x 7.48 x 1.68 in)
CertificationsCE, FCC, IC, RCM, LVD, EN 60601-1-2

Order Information

ModelDAP-X3060 — Nuclias Connect AX3000 Access Point
