Dell Pro 17 Plus

Spesification Monitor- Dell Pro 17 Plus

Big screen. Bold clarity. Smarter collaboration.

Description :

The Dell 75" 4K UHD IPS Touch Monitor delivers expansive 3840 x 2160 resolution with vibrant color accuracy and wide 178° viewing angles. Featuring a 20-point multi-touch screen, integrated 40W speakers, and advanced connectivity including HDMI 2.0, DisplayPort 1.4, USB-C with 90W power delivery, and Ethernet, it’s designed for interactive collaboration and seamless multitasking. With anti-glare coating, ComfortView technology, and durable 3H glass hardness, it ensures comfortable extended use. Backed by ENERGY STAR 8.0, EPEAT Gold certification, and a 3-year advanced exchange warranty, this monitor combines performance, sustainability, and reliability for modern workspaces and classrooms.

Brand : DELL

Category : Monitor

Product : Dell Pro 17 Plus

Features

Connect to productivity

Power of USB-C

Keep your laptop powered during presentations with USB-C charging that delivers up to 90W of power.

Expand your efficiency

See more content at once and increase team engagement by daisy chaining two 4K monitors.

Extensive connectivity

Make your monitor a productivity hub with many connectivity options including HDMI and DP ports.

A built-in Ambient Light Sensor intelligently optimises brightness and colour temperature based on your surroundings.

Effortless audio

Built-in dual 20W speakers allow convenient conversation without the need to connect additional devices.

Works with devices on macOS®

Tested with devices on macOS, this USB-C monitor is ready-to-work with Mac^® devices. Requires USB-C or HDMI connectivity. Daisy chaining multiple displays via a single cable requires Thunderbolt connectivity. Please check your device for compatibility, as select M-series chips may not support some features. Install Dell Display and Peripheral Manager application to customize advance settings.

Simplified setup

Manage your meeting space

This monitor with Crestron Connected^® and Crestron XiO Cloud^® allows remote management and control within a network control system.

Easy to install
Our displays are VESA-compatible, so this monitor is easy to mount to a mobile cart, a stand or whichever mounting solution fits your space.

Lock it down
Reduce display changes in high traffic environments with lock mode, a feature that allows IT to control menu and power options.

Built for teamwork

Group work without the wait

Twenty-point InGlass™ Touch technology allows multiple contributors to interact with the screen simultaneously, eliminating wait time and facilitating seamless collaboration. And, the touch functionality is compatible with most industry standard software, so it integrates seamlessly, however you work.

Write naturally

Palm rejection allows users to rest their hands naturally onscreen without triggering unwanted actions. Mimicking a more natural writing tool, the dual-tip stylus has an ergonomic, easy-grip design, a fine writing tip and a precise eraser. It magnetically attaches to the side of the display for effortless access.

Inclusive for all

Our unique Dell Screen Drop is the world’s first accessibility feature, designed to improve reachability for users working from different heights.

Collaboration at your fingertips

Experience intuitive touch technology, a feature that lets you annotate with your fingers and erase with the palm of your hand.

Visual clarity and comfort

Display every detail brilliantly on a 75-inch screen with 4K resolution.

Optimize eye comfort with the always-on built-in ComfortView Plus, which reduces low blue light without compromising color.

Get good views and see consistent colors from any seat in the room with the wide viewing angle enabled by In-Plane Switching (IPS) technology.

Minimize eye strain with anti-glare technology and keep your screen looking clean and clear thanks to anti-smudge features.

Dell Display and Peripheral Manager

Experience Dell’s singular, innovative application to optimize the performance of your entire Dell PC workspace.

Maximize productivity
Easy Arrange tiles apps across screens with pre-set partitions and customizes up to five windows, enhancing multitasking. Easy Arrange Memory saves and restores app profiles manually, on schedule, or at start-up.

Customize your views

Work comfortably, day or night. Automate your brightness and contrast settings to match your schedule.

More manageable
Save time and boost IT efficiency with the Dell Device Management Console to manage your Dell peripheral fleet at scale, from a single cloud-based console. Discover expanded Command Line Interface features from Dell Display and Peripheral Manager.

Environmentally forward thinking

Material innovation

Your monitor has been thoughtfully crafted with 85% recycled plastic like post-consumer plastic and closed loop plastic, 90% recycled aluminum and at least 20% recycled glass.Using recycled materials helps conserve natural resources and contributes to a lower environmental footprint.

Environmental standards

This monitor is certified ENERGY STAR^® and registered EPEAT Gold with Climate+ meaning it has met high standards for energy efficiency and climate impact.

Seamlessly modernize your tech

We can help you responsibly and securely retire your legacy IT equipment, regardless of brand, while addressing your sustainability goals.

Packaging with purpose

This monitor ships in a box made from 100% renewable materials. We are reducing plastic waste wherever possible and transitioning to a responsible fiber-based solution. Plus, we’re saving over 600 trees each year by using less paper in packaging.

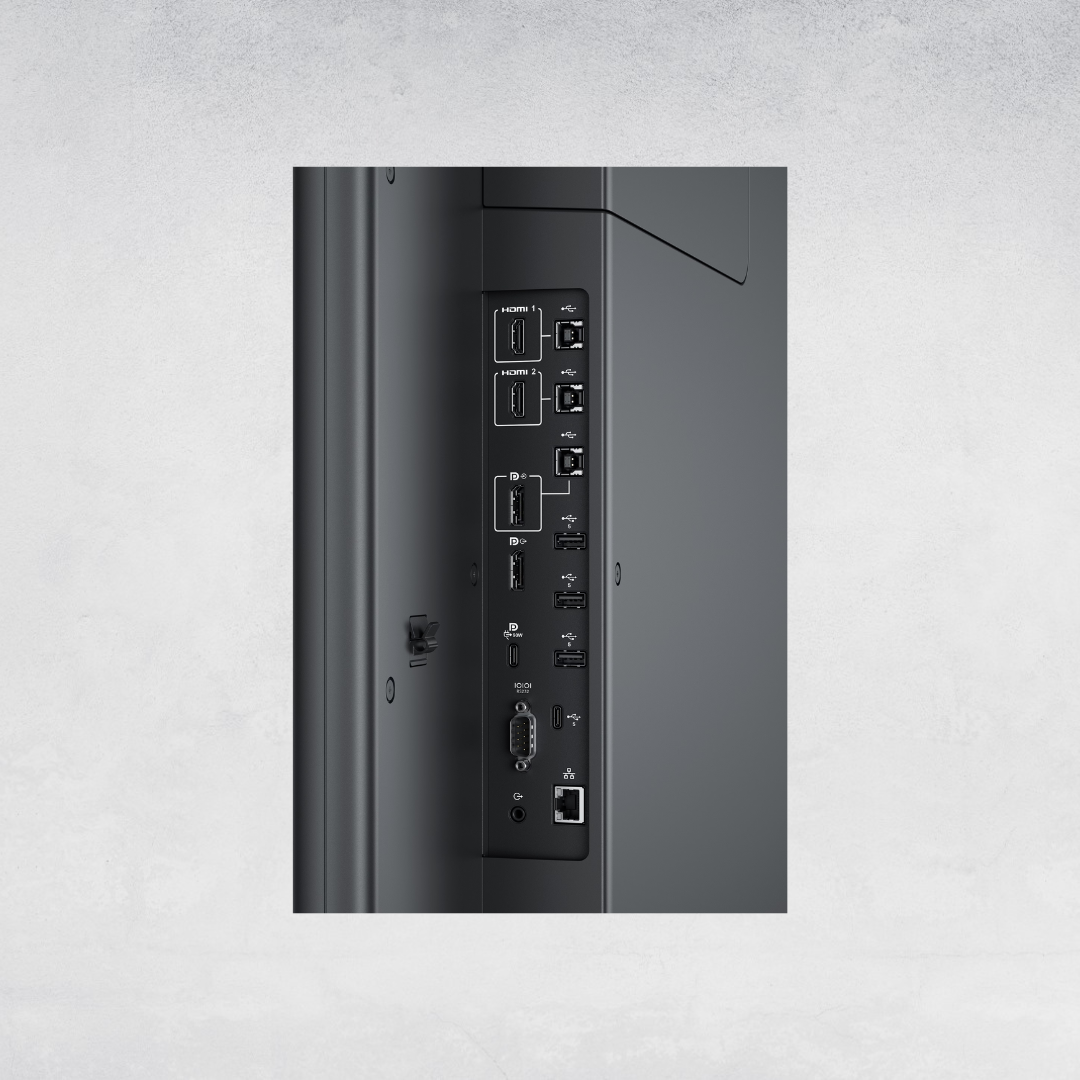

Right view

HDMI 2.0 ports (HDCP 2.2) (Supports up to 4K 3840 x 2160, 60 Hz)
HDMI 2.0 ports (HDCP 2.2) (Supports up to 4K 3840 x 2160, 60 Hz)
DisplayPort 1.4 port (HDCP 2.2)
DisplayPort (out)
USB-C 5Gbps upstream ports (DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W)
RS232 connector
Audio line-out port
USB-B 5Gbps upstream ports (3)
USB 5Gbps Type-A downstream port (3)
USB-C 5Gbps downstream ports (Power Delivery up to 15 W)
RJ45 ethernet port, 1 GbE

Cables Included

Power cable
Power cable to connect the Dell Pro Micro to the display
USB 3.2 Gen1 Type A-to-B upstream 1.8m
DisplayPort to DisplayPort, 3m
USB Gen1 Type C-to-C, 1.8m
HDMI to HDMI, 3m

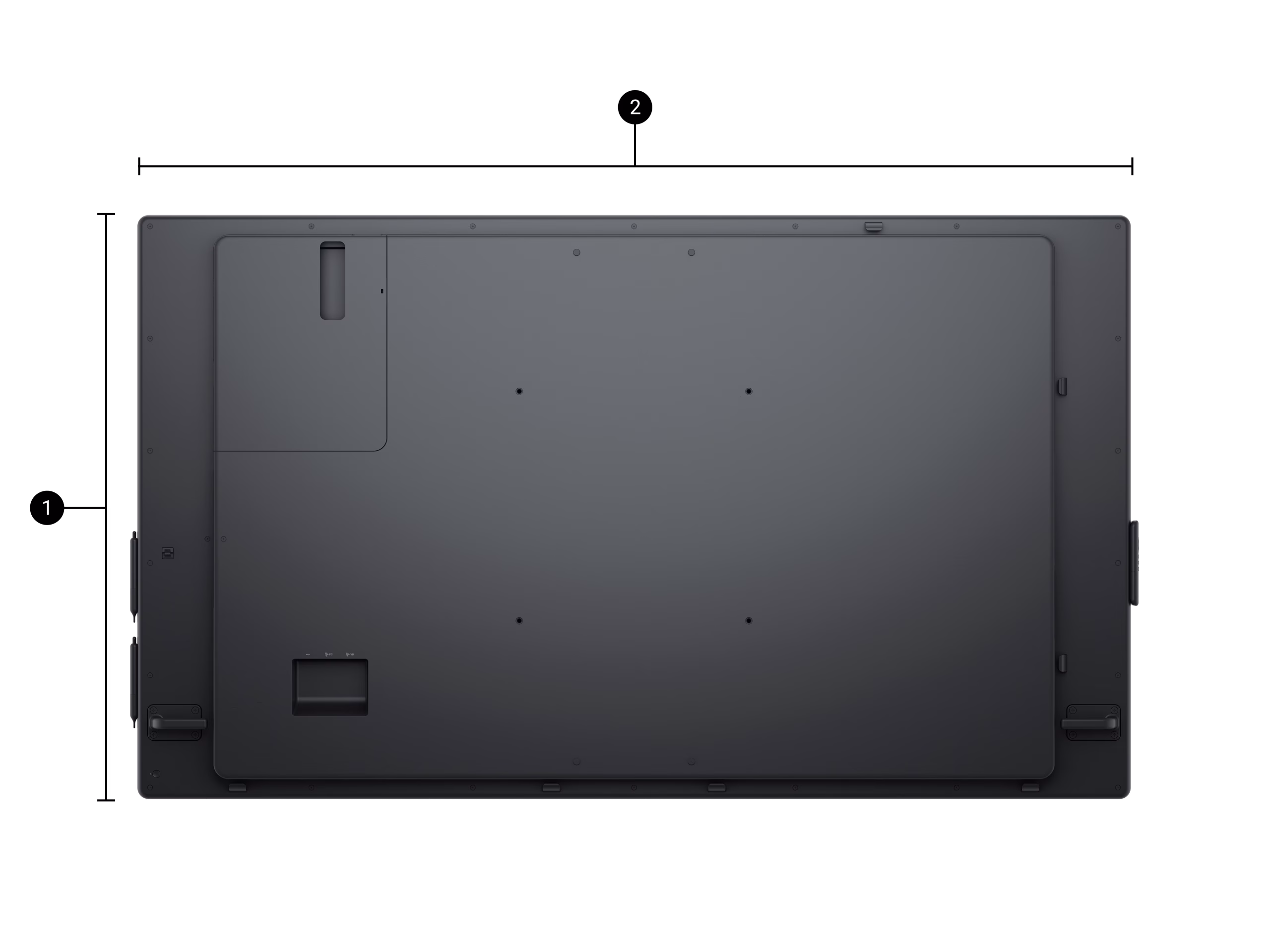

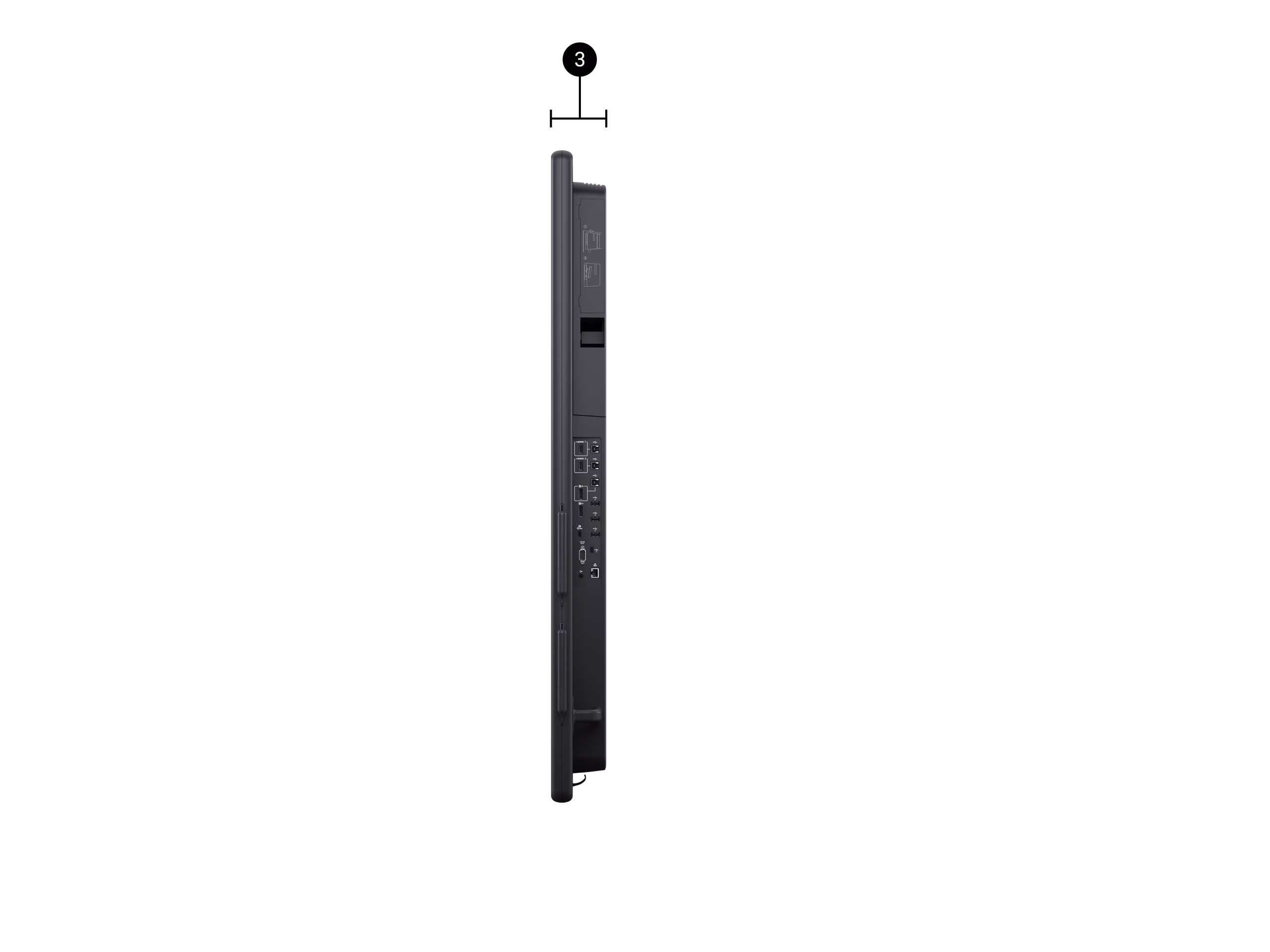

Dimensions and weight

Monitor height: 40.44 in. (1027.16 mm)
Monitor width: 68.74 in. (1745.89 mm)
Monitor depth: 3.46 in. (87.80 mm)

Weight

Weight with cables and accessories: 132.54 lb (60.12 kg)
Weight without cables and accessories: 130.27 lb (59.09 kg)

Dell 75" 4K UHD IPS Touch Monitor - Technical Specifications

Technical Information
Specification	Details
Screen Size Class	75"
Viewable Screen Size	74.5"
Screen Mode	4K UHD
Panel Technology	IPS (In-plane Switching)
Pixel Pitch	0.4296 mm x 0.4296 mm
Response Time	8ms GTG
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° \| Vertical: 178°
Mount Type	Panel Mount
Backlight Technology	LED Edgelight System
HDCP Supported	Yes
Features	Anti-glare, BFR Free, Cable Lock Slot, Arsenic-free Glass
Horizontal Frequency	30 kHz to 140 kHz (DP/HDMI)
Vertical Frequency	24 Hz to 75 Hz (DP/HDMI)
Glass Hardness	3H
Operation Hours	16 Hours / 7 Days
Daisy Chain	Yes

Video
Specification	Details
Maximum Resolution	3840 x 2160
Color Supported	1.07 Billion Colors
Native Contrast Ratio	1,200:1
Brightness	400 cd/m²
Color Gamut	72% NTSC (CIE 1931)
Maximum Preset Resolution	3840 x 2160 at 60 Hz
Pixel Per Inch (PPI)	59
Maximum Refresh Rate	60 Hz

Audio
Specification	Details
Speakers	Yes
Number of Speakers	2
Speaker Output Power	40 W

Touchscreen Information
Specification	Details
Multi-touch Screen	Yes
Number of Touchpoints	20 simultaneous

Interfaces / Ports
Port Type	Details
DisplayPort	1x DP 1.4 (HDCP 2.2), 1x DP 1.4 Out (MST)
HDMI	2x HDMI 2.0 (HDCP 2.2)
Audio	1x Analog 2.0 audio line out (3.5 mm)
Ethernet	1x RJ45 Ethernet port, 1GbE
RS232	1x RS232 port
USB-C	1x Upstream (DP Alt Mode, 90W PD), 1x Downstream (15W PD)
USB-A	3x Downstream (5Gbps)
USB-B	3x Upstream (5Gbps)

Environmental Conditions
Condition	Details
Operating Temperature	32°F (0°C) to 104°F (40°C)
Non-operating Temperature	-4°F (-20°C) to 140°F (60°C)
Operating Humidity	10% to 80% (Non-condensing)
Non-operating Humidity	5% to 90% (Non-condensing)

Power Description
Specification	Details
Operating Power Consumption	128 W
Maximum Power Consumption	410 W
Input Voltage Range	100V AC to 240V AC
Frequency	50 Hz / 60 Hz
Voltage Current	9.50 A

Physical Characteristics
Specification	Details
VESA Mount Compatible	Yes
VESA Mount Standard	400 x 400 mm
Bezel Width	Top: 1.89" \| Bottom: 2.01" \| Left/Right: 1.89"
Dimensions	Height: 40.44" \| Width: 68.74" \| Depth: 3.46"
Weight	Approx. 130.27 lb

Miscellaneous
Specification	Details
Cables Included	Power cable, OptiPlex system cable, 1x DP-to-DP 1.4 cable (3.0m), 1x HDMI cable (3.0m), 1x USB-A to B upstream cable (3.0m), 1x USB-C to C upstream cable (1.8m)
Package Contents	Monitor, OptiPlex holder, Remote control, 2x AAA batteries, 2x Stylus, 2x Stylus nib, Quick Start Guide, Safety & Regulatory Information
Certifications	EPEAT Gold, ENERGY STAR 8.0, RoHS, TCO Certified Edge
