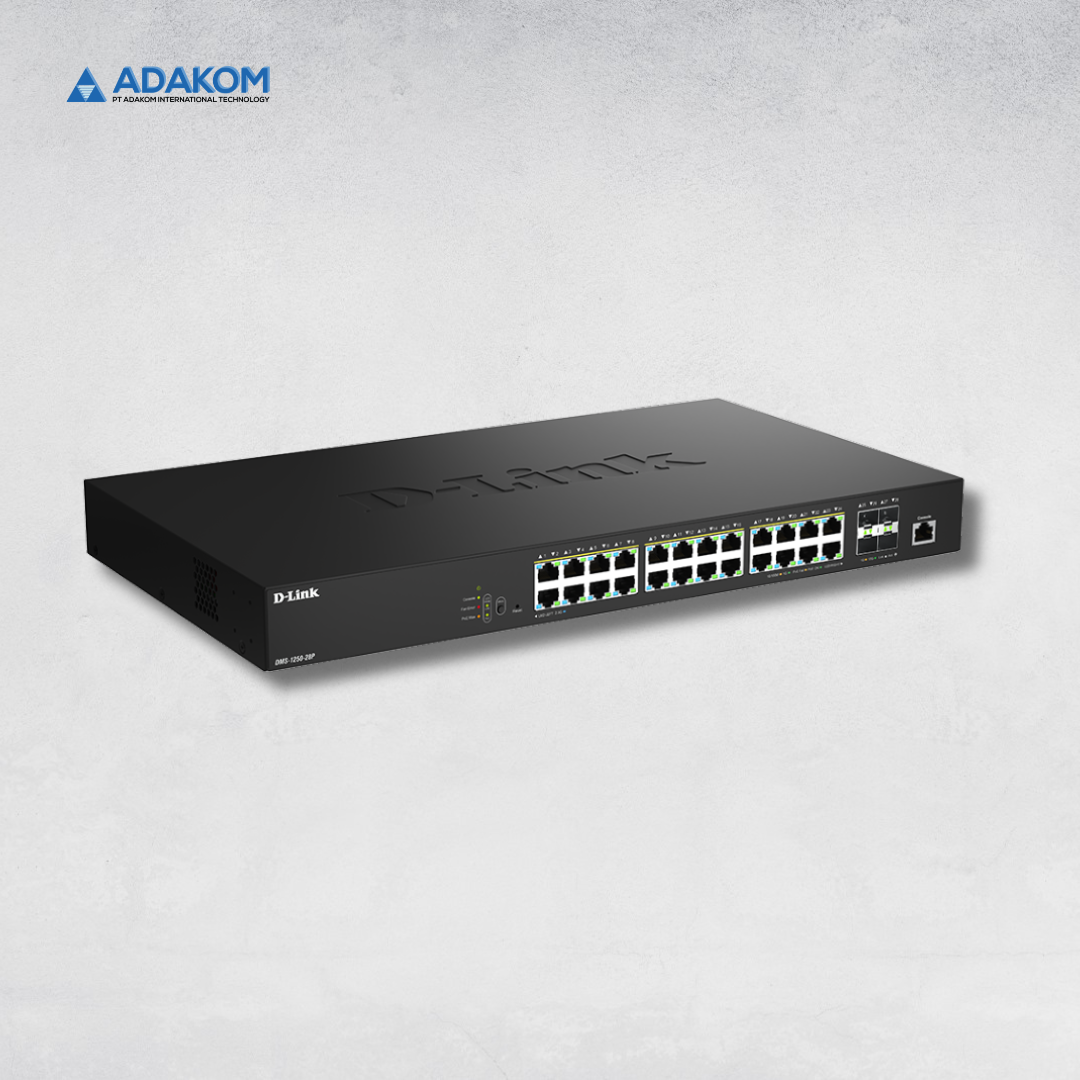

D-Link DMS-1250-28P-side right

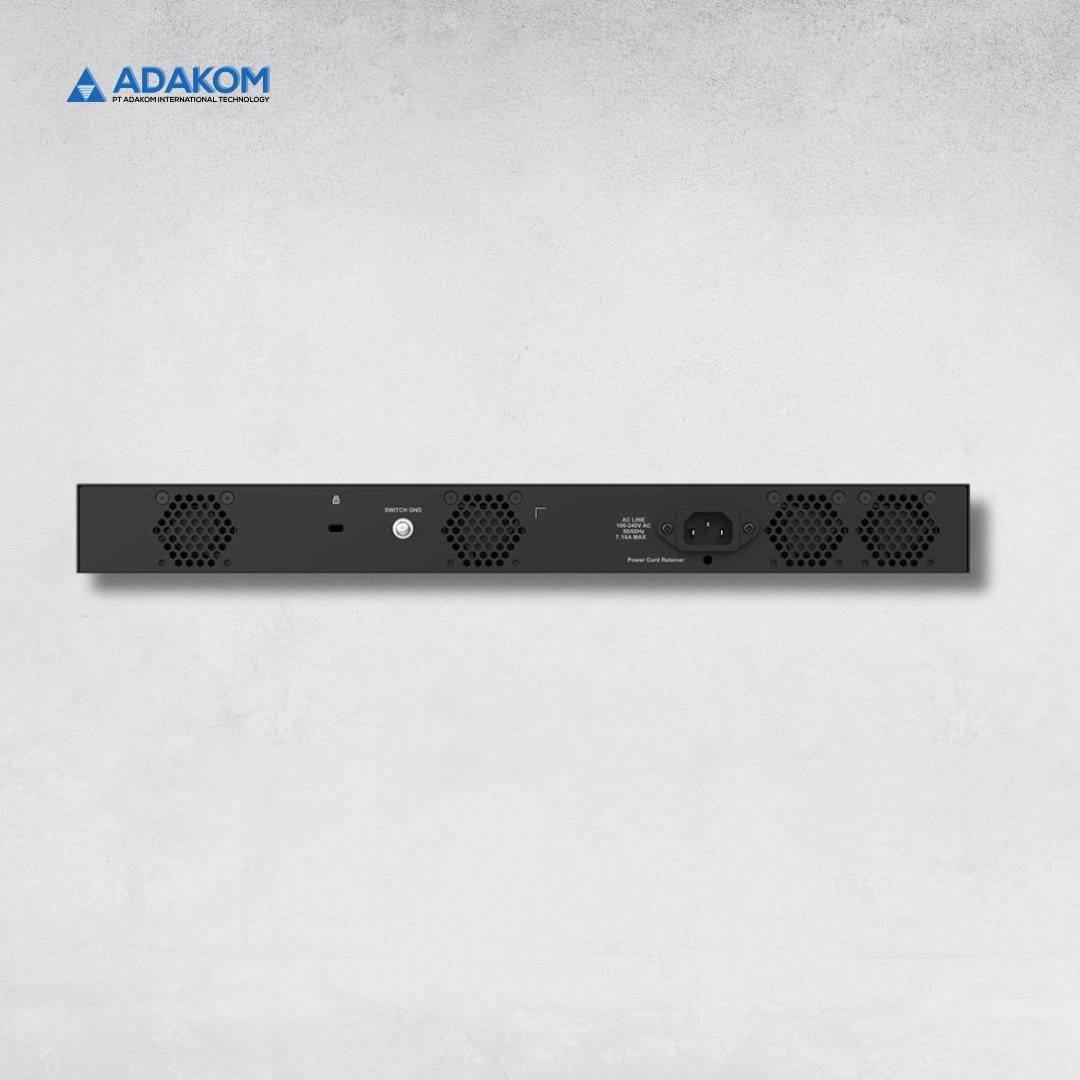

D-Link DMS-1250-28P-back

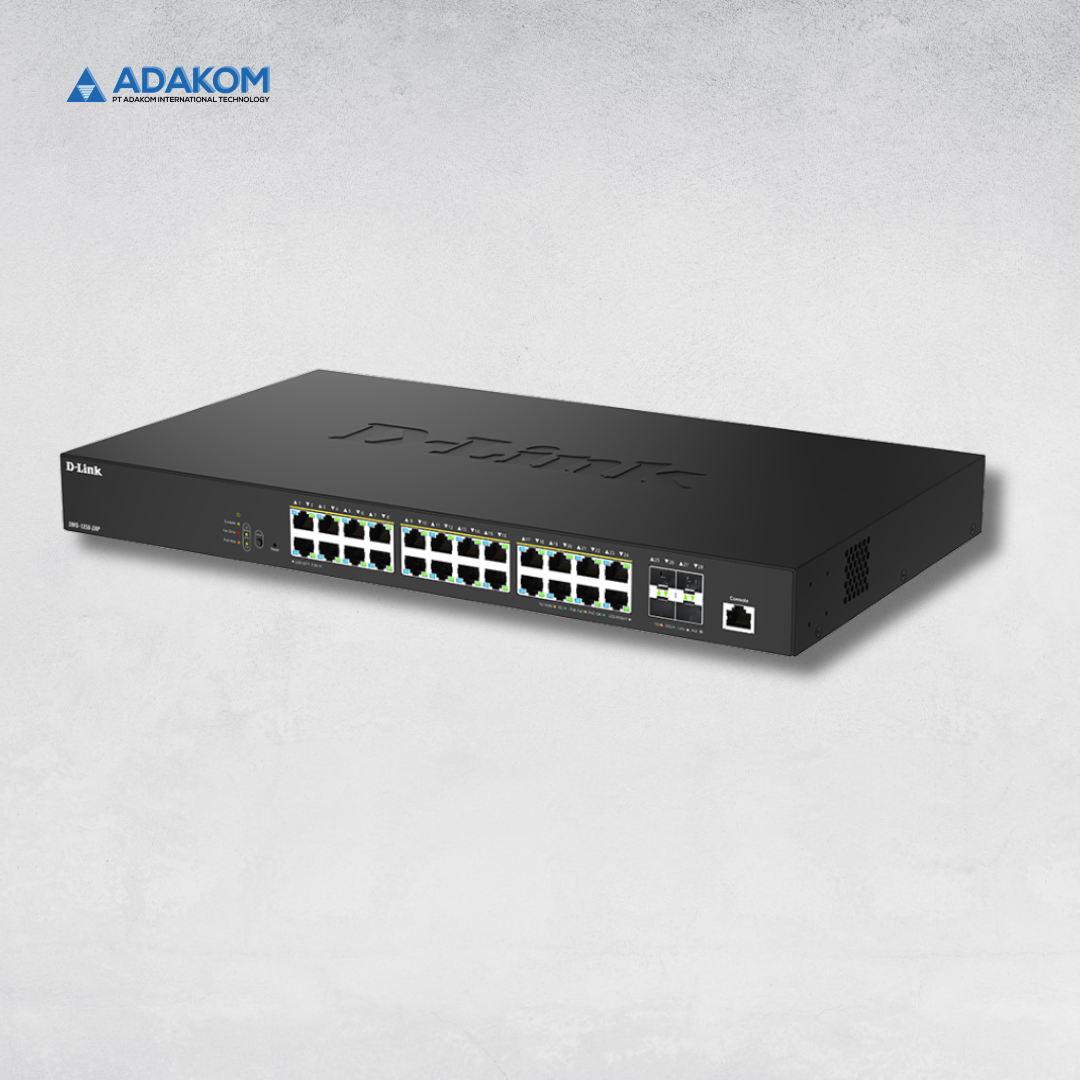

D-Link DMS-1250-28P-side left
Spesification Network Switch DMS-1250-28P
Next-Gen Multi-Gigabit PoE++ Switch for Enterprise Networks

The D-Link DMS-1250-28P is engineered to meet the demands of modern enterprise networks, offering 28 x 2.5G PoE++ access ports and 4 x 10G SFP+ uplinks for seamless connectivity. With support for IEEE 802.3af/at/bt PoE standards, it delivers up to 90W per port and a total PoE budget of 475W, making it ideal for powering Wi-Fi 6/7 access points, PTZ cameras, digital signage, and IoT devices.

Multi-Gigabit Ethernet ensures high-speed backhaul without re-cabling, while built-in 6kV surge protection safeguards against electrical spikes. Advanced Layer 3 Lite features such as VLAN segmentation, static routing, ERPS, QoS, IGMP snooping, and redundancy enhance performance and reliability across enterprise and campus environments.

Administrators benefit from centralized management via Web UI, CLI, SNMP, Nuclias Controller, and D-View 8, with real-time monitoring and visual dashboards. Smart cooling with five-speed fans optimizes airflow and noise, ensuring stable operation in busy networks. With TAA/NDAA compliance, robust security (802.1X, ACLs, DHCP snooping, IP-MAC binding, Safeguard Engine™), and a lifetime warranty, the DMS-1250-28P is a future-proof investment for schools, offices, retail, and government deployments.

Category : Network
Brand : D-Link
Product : DMS-1250-28P
Description

Features – D-Link DMS-1250-28P

  • 28 x 2.5G PoE++ Ports – High-speed access for Wi-Fi 6/7 APs, cameras, signage, and PCs.

  • 4 x 10G SFP+ Uplinks – Flexible connectivity to servers, storage, or core switches.

  • PoE++ Power Budget 475W – Up to 90W per port for power-hungry devices.

  • Multi-Gigabit Ethernet – Eliminates bottlenecks without re-cabling.

  • Advanced Layer 3 Lite – VLANs, static routing, ERPS, QoS, IGMP snooping.

  • Built-in 6kV Surge Protection – Protects against electrical spikes.

  • Smart Cooling System – Five-speed fans for optimized airflow and noise control.

  • Strong Security – 802.1X, ACLs, DHCP snooping, IP-MAC binding, Safeguard Engine™.

  • Centralized Management – Web UI, CLI, SNMP, Nuclias Controller, D-View 8.

  • TAA/NDAA Compliant – Certified for government and regulated environments.

  • Lifetime Warranty – Backed by D-Link’s 39+ years of networking expertise.

Features
D-Link DMS-1250-28P Specifications

D-Link DMS-1250-28P – 28-Port 2.5G Layer 2 Standard Smart PoE Switch

General

Device Type28-Port 2.5G Layer 2 Standard Smart PoE Switch
Interfaces24 x 10/100/1000/2500BASE-T PoE ports, 4 x 10G SFP+ uplink ports
PoE StandardIEEE 802.3af/at compliant
PoE Budget740W
Switching Capacity336 Gbps
Packet Forwarding Rate250 Mpps
MAC Address Table32K entries
Packet Buffer Memory4 MB

Standards

Ethernet StandardsIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3bz 2.5GBASE-T, IEEE 802.3ae 10GBASE-X
PoE StandardsIEEE 802.3af, IEEE 802.3at
Other StandardsIEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control

Features

L2 FeaturesIGMP Snooping, STP/RSTP/MSTP, Link Aggregation (LACP), Port Mirroring, Loopback Detection, Jumbo Frame support
VLAN802.1Q VLAN, Auto Voice VLAN, Auto Surveillance VLAN, up to 4K VLAN groups
QoS802.1p QoS, 8 queues per port, WRR, DSCP, bandwidth control
L3 FeaturesStatic routing (IPv4/IPv6), up to 512 IPv4 routes, 256 IPv6 routes

Security

Access ControlACLs (up to 1K rules), IP-MAC-Port Binding, ARP Inspection, DHCP Snooping
Authentication802.1X port-based, RADIUS, local database, EAP/TLS/TTLS/PEAP
Safeguard EngineProtection against traffic flooding and DoS attacks

Management

InterfacesWeb-based GUI, Telnet CLI, SNMP v1/v2c/v3, D-Link Network Assistant, D-View 8
FeaturesDual image/configuration, cable diagnostics, system log, firmware upgrade, DHCP auto configuration

Physical & Environmental

Power Input100–240 V AC, 50/60 Hz
Max Power Consumption~740W (PoE full load)
Operating Temperature0 to 50 °C
Humidity0% to 95% RH
Dimensions440 x 430 x 44 mm
Weight~6.5 kg
CertificationsCE, FCC, VCCI, BSMI, UL, LVD

Order Information

ModelDMS-1250-28P – 28-Port 2.5G Layer 2 Standard Smart PoE Switch
Optional SFP/SFP+ TransceiversDEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-330T/R, DEM-331T/R, DEM-431XT, DEM-432XT
