Display - Seagate SkyHawk 3.5" 4 TB
Display
/ Seagate /

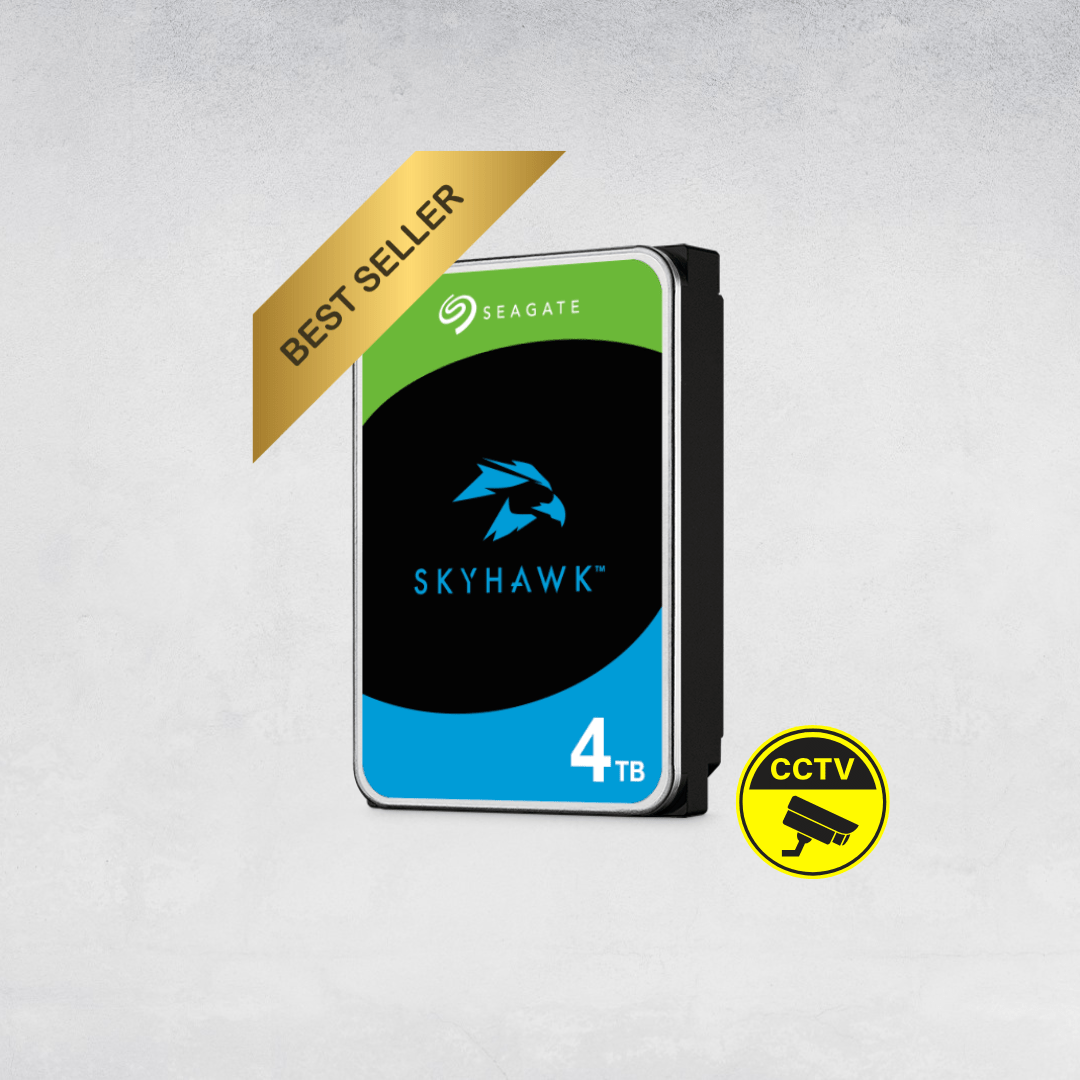

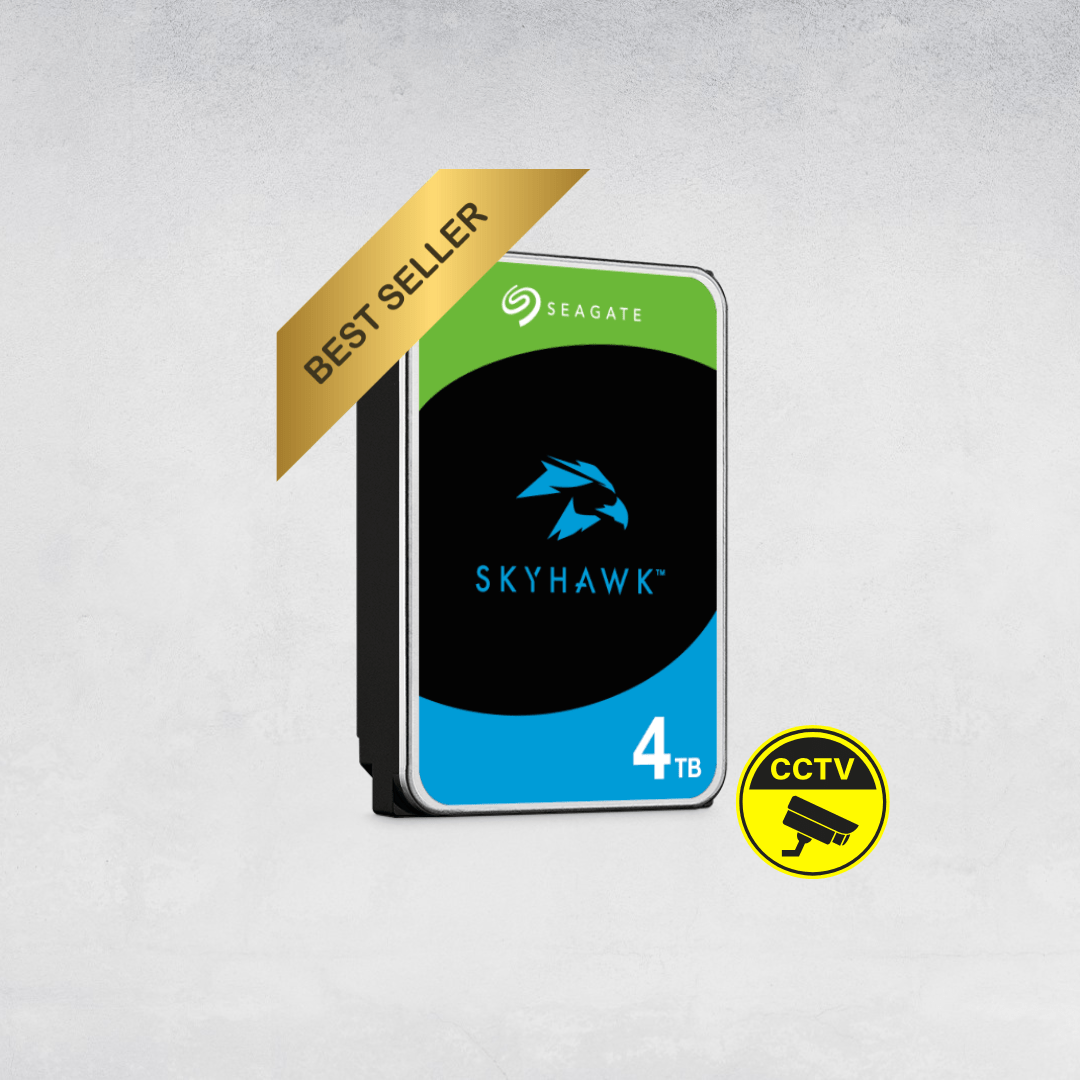

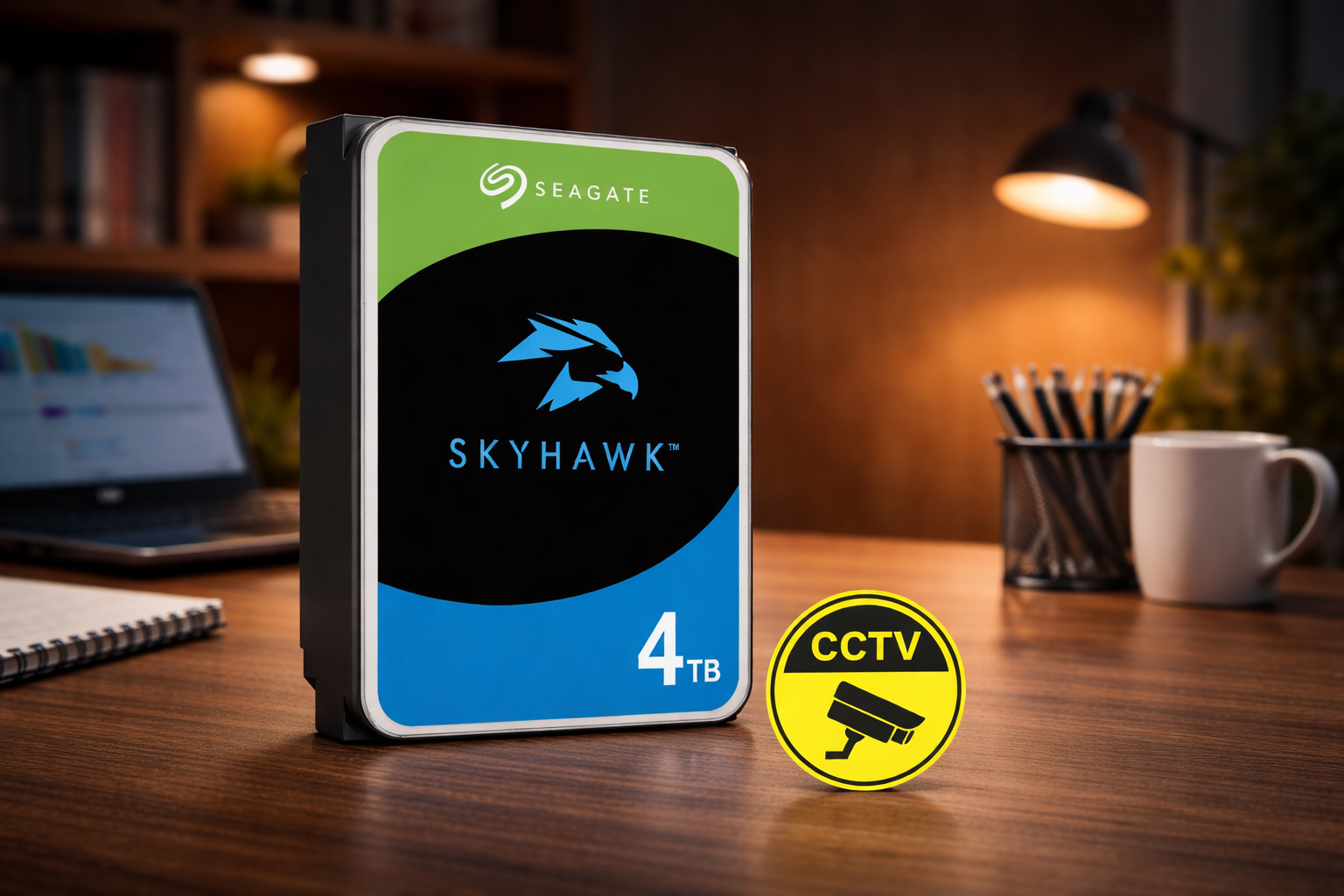

Seagate SkyHawk 3.5" 4 TB
Spesification Display - Seagate SkyHawk 3.5" 4 TB
Built for Surveillance. Ready 24/7
Description :
Seagate SkyHawk is a hard drive engineered specifically for CCTV, NVR, and DVR surveillance systems, built for continuous 24×7 operation. Powered by ImagePerfect™ technology, it delivers smooth, uninterrupted video recording with high reliability for long‑term security monitoring.
Brand : Seagate
Category : Hard Drive
Product : Seagate SkyHawk 3.5" 4 TB
Features
24×7 Surveillance Optimization
Designed for non-stop operation under heavy workloads typical of security systems.
ImagePerfect™ Firmware
Minimizes frame drops and ensures smooth, reliable video capture—even with high‑resolution cameras.
Up to 24TB Capacity
Provides ample space for long-duration recordings from multiple cameras, suitable for small to large installations.
Workload Rate Up to 180TB/Year
Up to three times higher than standard desktop drives, supporting demanding surveillance environments.
Supports Up to 64 Cameras
Ideal for professional NVR/DVR systems as well as home surveillance setups.
Enhanced Data Protection
Equipped with RV sensors on select models for improved stability in multi-drive environments.
| Category | Specification | Details |
|---|---|---|
| Surveillance Optimization | Firmware | ImagePerfect™ – optimized for 24×7 surveillance, minimized dropped frames |
| Workload Rating | 180 TB/year | |
| Camera Support | Up to 64 HD cameras simultaneously | |
| SkyHawk Health Management | Included (prevention, intervention, recovery) | |
| Best-fit Applications | NVR, DVR, Hybrid DVR, multi-bay CCTV storage systems | |
| Interface & Performance | Interface | SATA 6 Gb/s |
| Cache | 64 MB (ST4000VX007) / 256 MB (ST4000VX013 variant) | |
| Spindle Speed | ~5900 RPM (Surveillance-optimized) | |
| Sustained Transfer Rate | Up to 190 MB/s | |
| RV Sensors | Yes – helps maintain performance in multi-drive NVR systems | |
| Streaming Support | ATA Streaming Commands for consistent frame capture | |
| Reliability & Durability | MTBF | 1,000,000 hours |
| Power-On Hours | 8760 hours/year (24/7 operation) | |
| Nonrecoverable Read Errors | 1 per 1014 bits | |
| Load/Unload Cycles | 300,000 cycles | |
| Tarnish-resistant Components | Yes – protection for harsh surveillance environments | |
| Warranty | 3 Years Limited Warranty | |
| Power Consumption | Startup Current | 1.8 A (12V) |
| Operating Power | Approx. 5.3–5.6 W | |
| Idle Power | Approx. 4.0 W | |
| Standby Mode | ~0.5–0.6 W | |
| Energy Efficiency | Low-power design reduces heat output for improved reliability | |
| Environmental | Operating Temperature | 0°C to 70°C |
| Non-operating Temperature | -40°C to 70°C | |
| Acoustics | Performance-optimized for surveillance (low noise) | |
| Power-On Vibration Handling | Designed for multi-bay NVR systems with RV compensation | |
| Physical Specifications | Form Factor | 3.5-inch |
| Dimensions (W × D × H) | Approx. 101.6 × 146.99 × 20.2 mm | |
| Weight | ~490 g | |
| Bytes per Sector | 4096 bytes (4K native) | |
| Connector | Standard SATA data & power connectors | |
| Model Variants | Primary 4TB Model | ST4000VX007 |
| Enhanced Cache Variant | ST4000VX013 (256MB cache) | |
| Series Name | Seagate SkyHawk Surveillance HDD |
