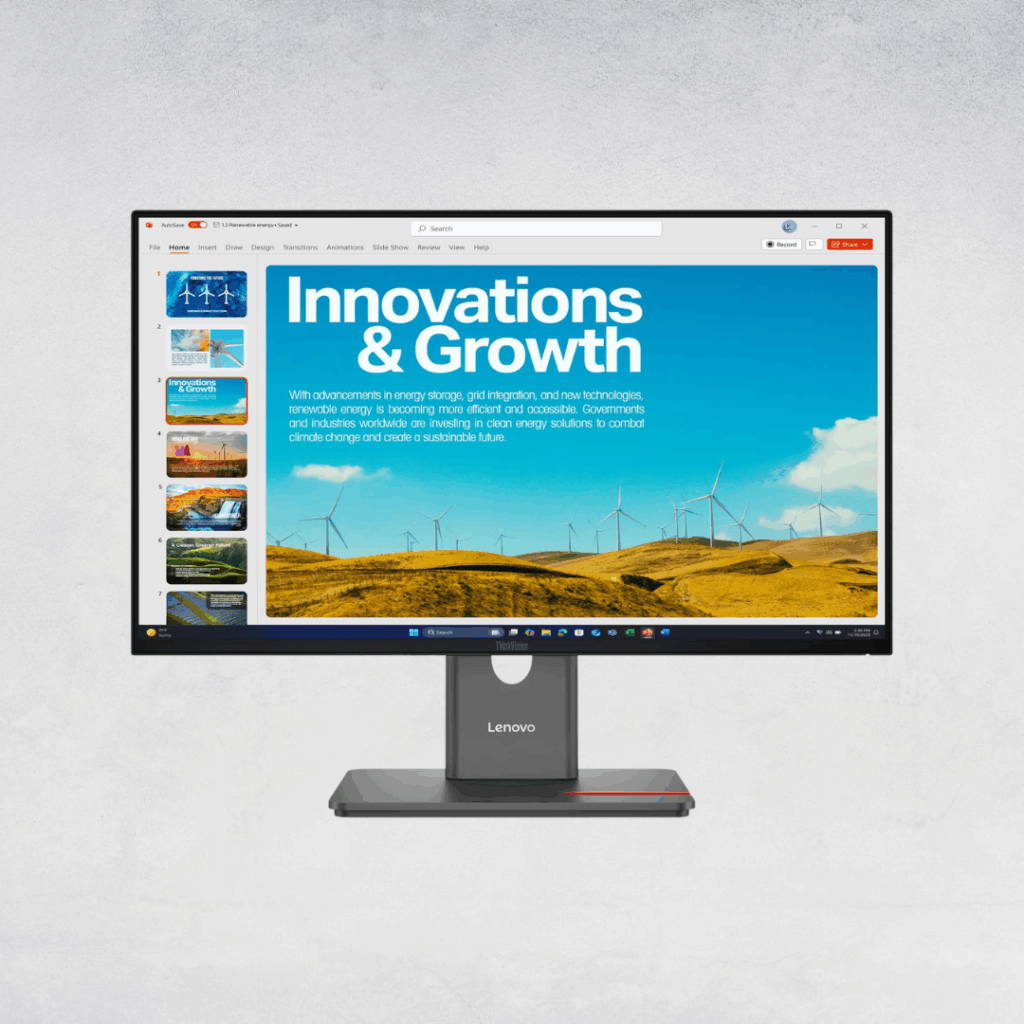

ThinkVision P24QD-40 - font

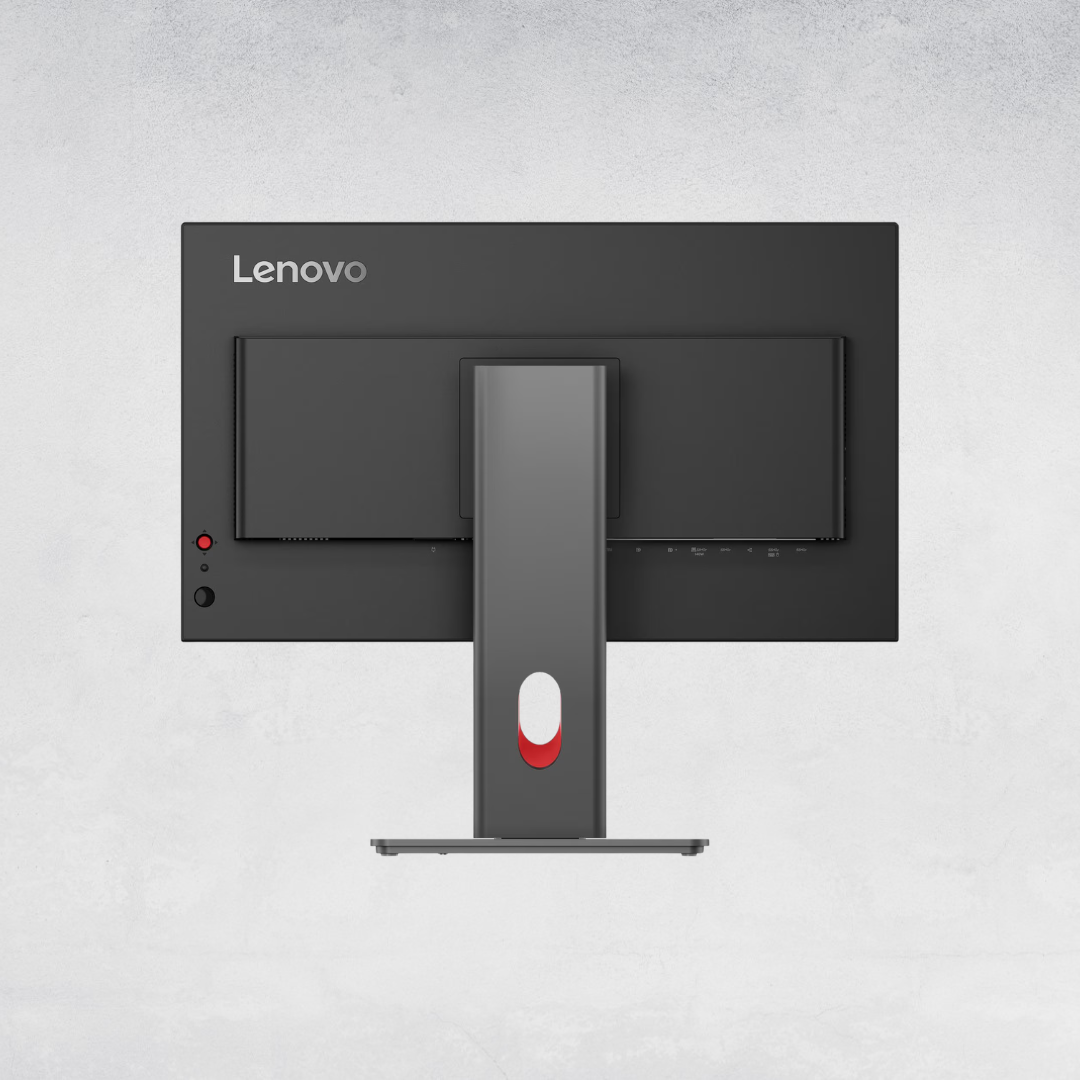

ThinkVision P24QD-40 - back

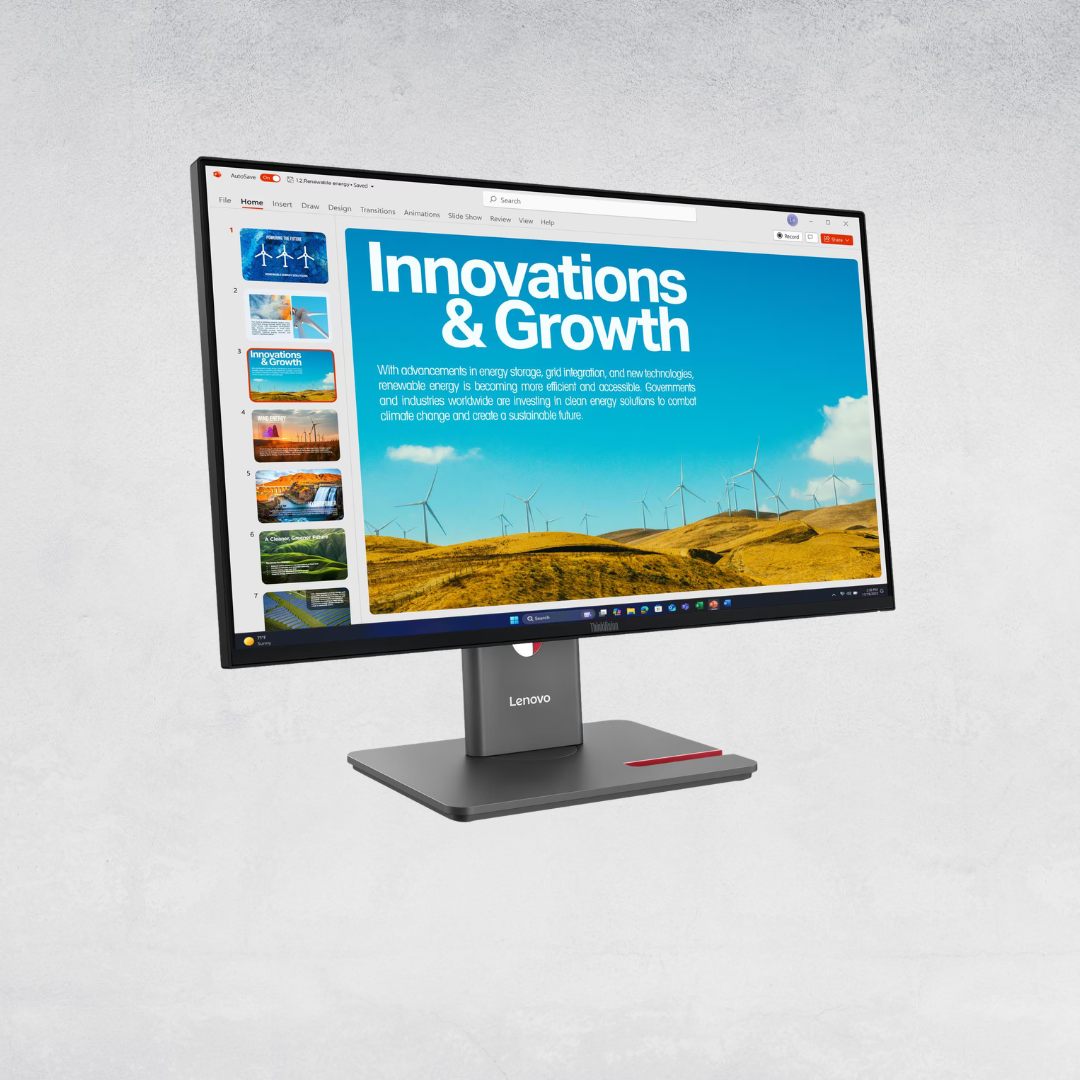

ThinkVision P24QD-40 - side right
ThinkVision P24QD-40 - back left

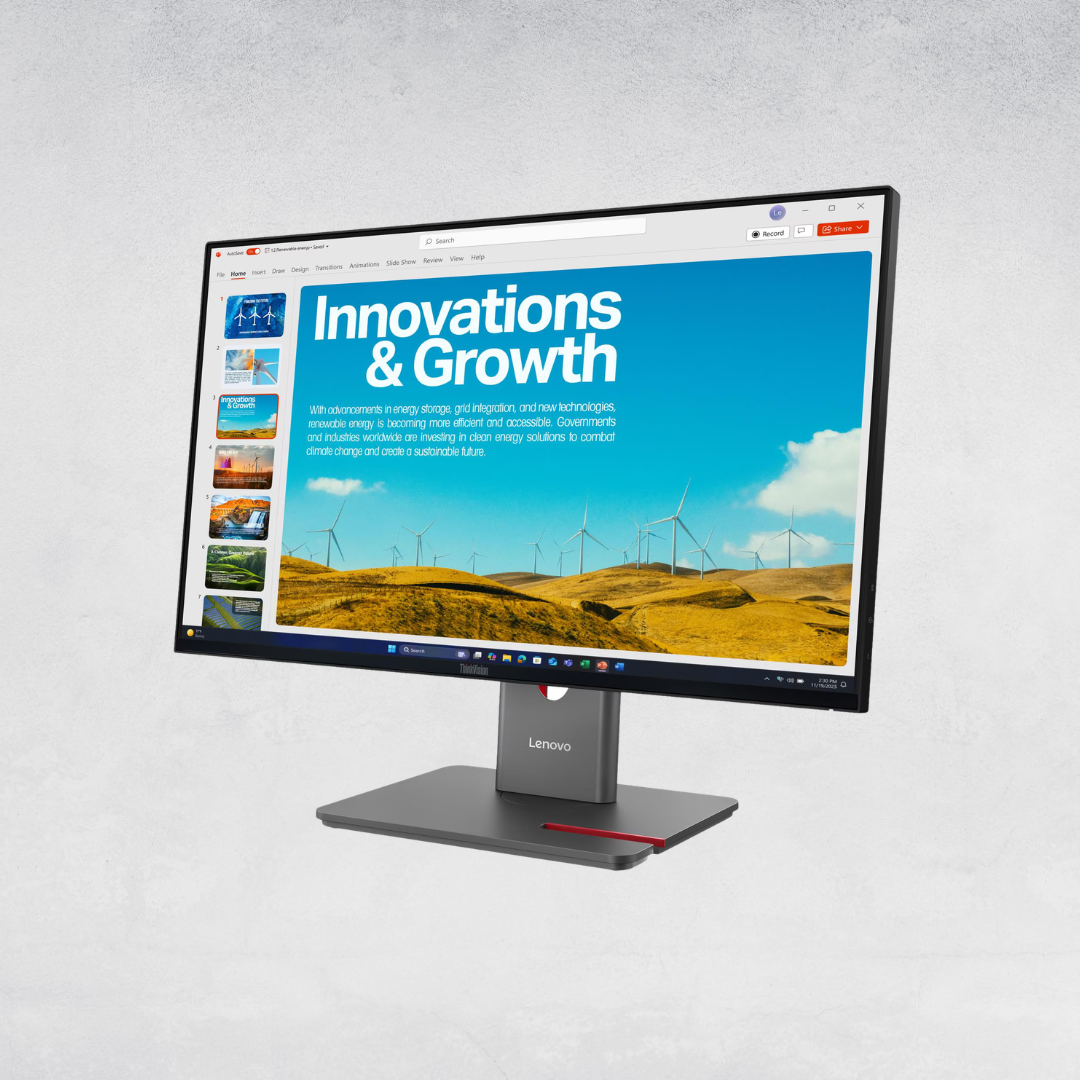

ThinkVision P24QD-40 - side left

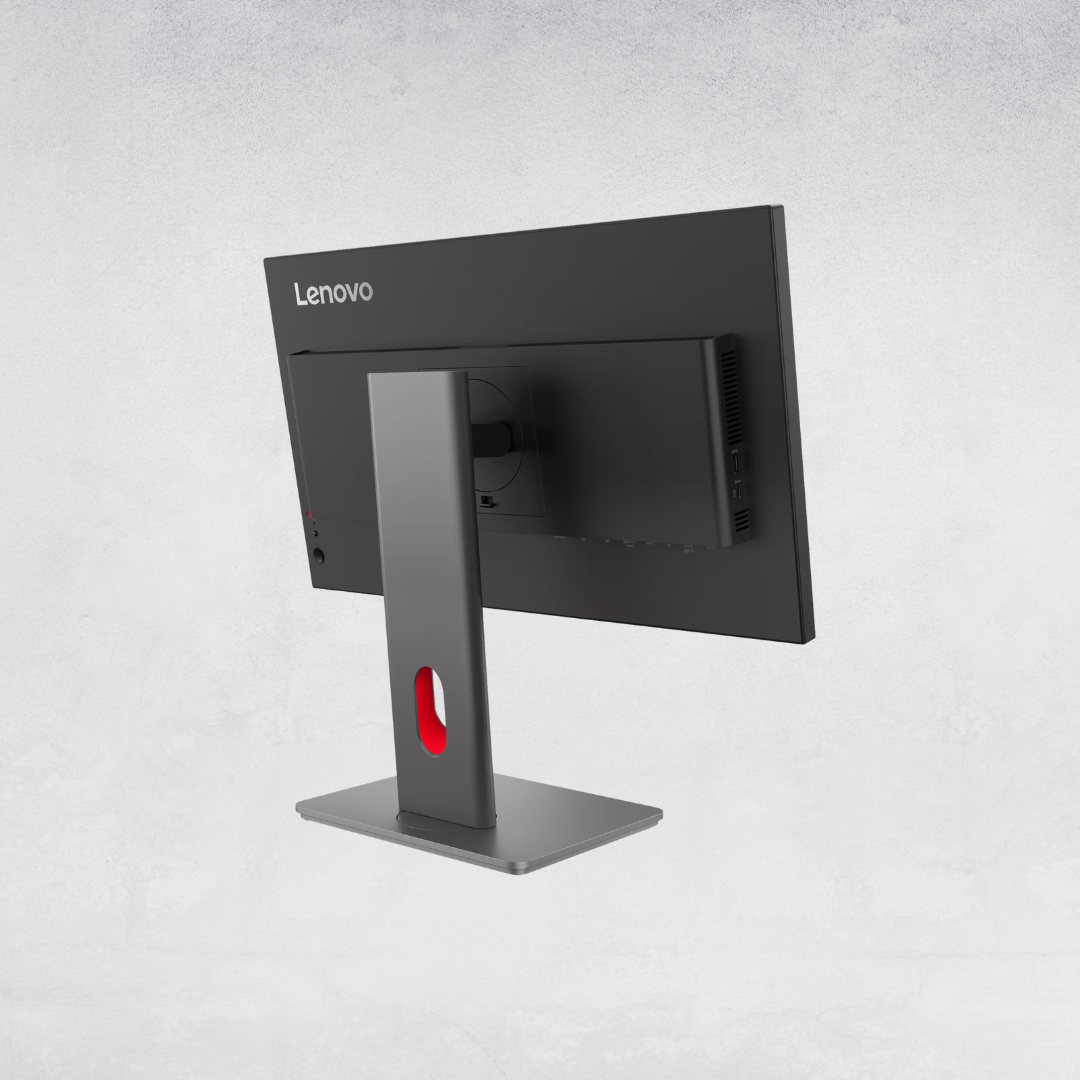

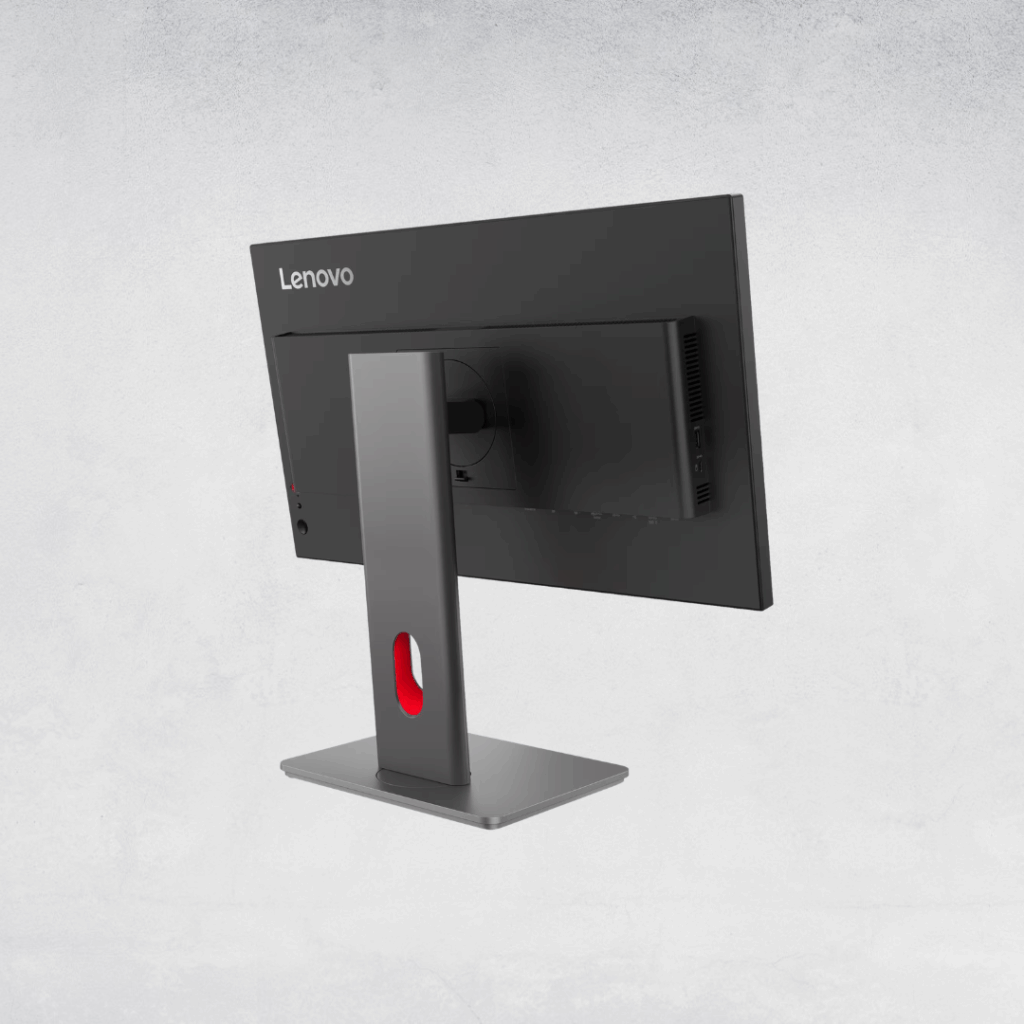

ThinkVision P24QD-40 - back right

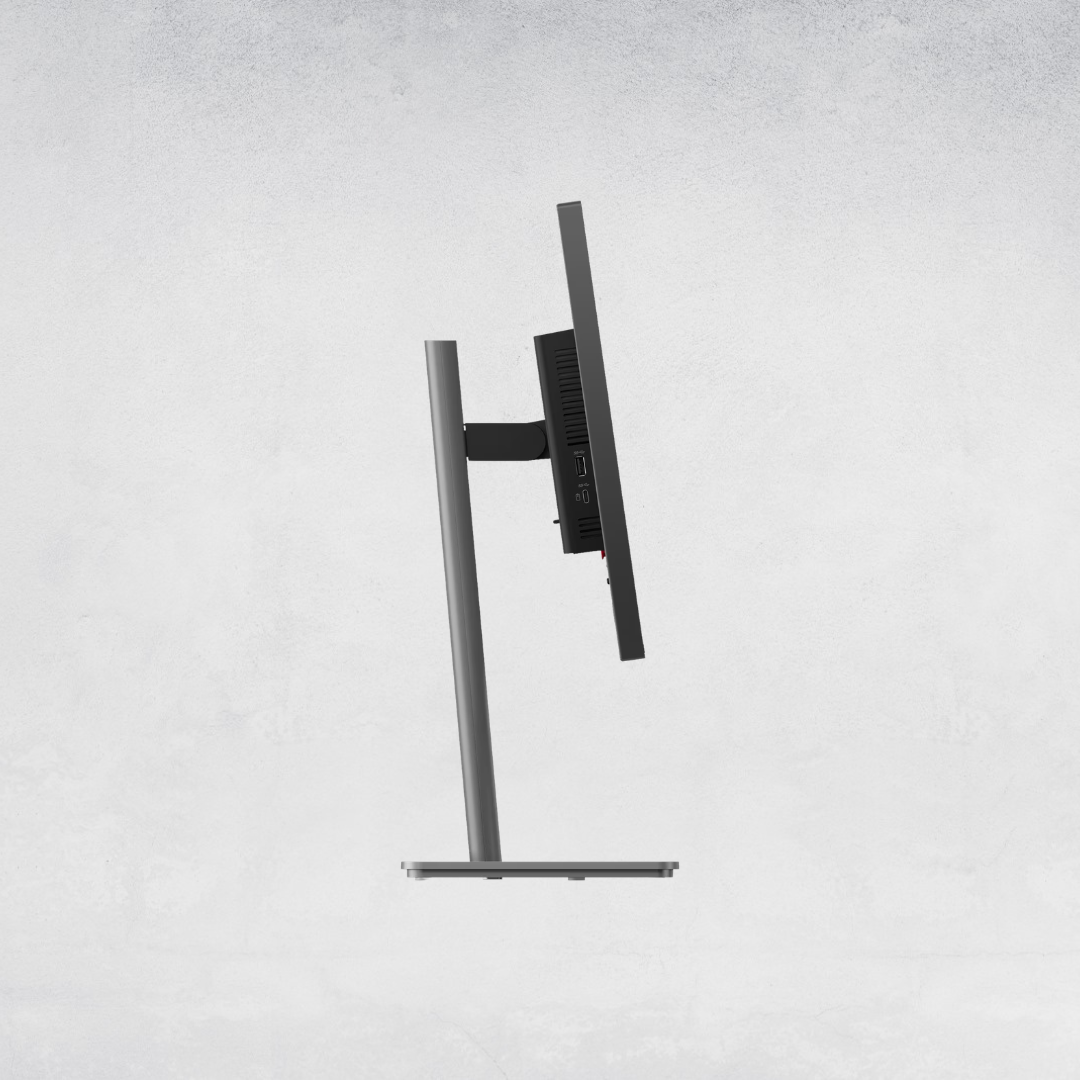

ThinkVision P24QD-40 - right

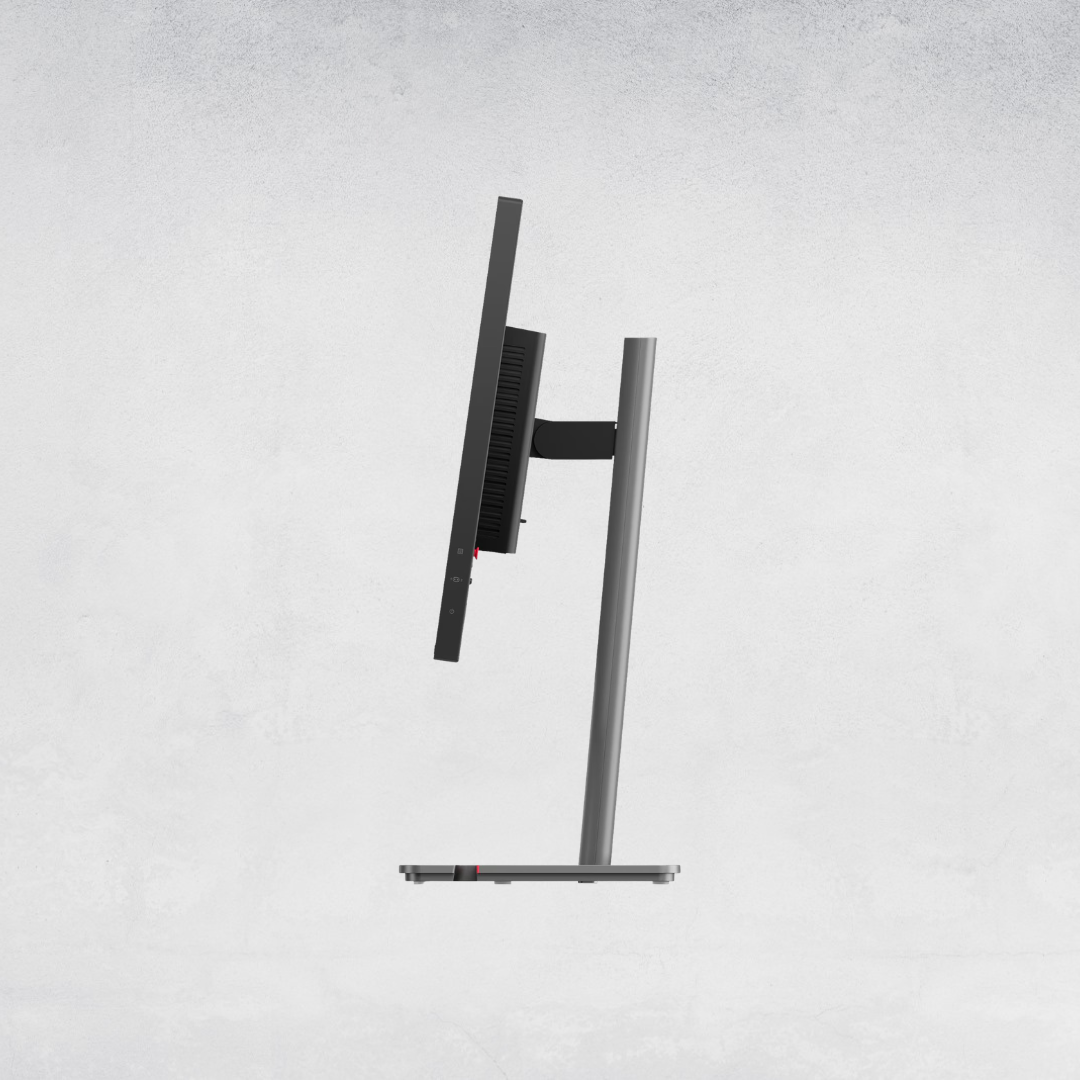

ThinkVision P24QD-40 - left
Spesification Monitor - ThinkVision P24QD-40
Designed for the contemporary workspace!

The Lenovo ThinkVision P24QD-40 is a 23.8-inch QHD IPS monitor engineered for advanced productivity and connectivity. Featuring a 2560 × 1440 resolution, HDR10 compliance, and up to 120Hz refresh rate, it delivers sharp, smooth, and vibrant visuals. With 99% sRGB and 99% BT.709 coverage, factory calibration (Delta E<2), and TÜV Rheinland Eye Comfort 5-star certification, it ensures precise color accuracy and superior eye comfort. The monitor integrates versatile connectivity including HDMI 2.1, DP 1.4 in/out, USB-C Gen2 with 140W PD, RJ45 Ethernet, and a built-in KVM switch for seamless multi-device control. Ergonomic adjustments (tilt, lift, pivot, swivel), cable management, and Eyesafe 2.0 certification make it a powerful and flexible choice for modern workspaces.

Category : Monitor
Brand : Lenovo
Product : ThinkVision P24QD-40
Description

Features

Smart energy saving

Match your screen to your workflow with the 48-120Hz variable refresh rate¹ ThinkVision P24QD-40 monitors, optimized for seamless visuals while saving energy

Superior one-cable docking solution

Take advantage of superior connectivity with the USB-C one-cable solution with DP out for display, up to 140W PD 3.1 charging,
and 2.5G RJ45 for a fast, stable, and secure internet connection on ThinkVision docking monitors.

Simple remote management

Empower IT administrators with remote asset management and full control of your monitors with Lenovo Display Fleet Manager. Effortlessly adjust display and peripheral settings for more comfort and productivity using Lenovo Accessory Display Manager

Features

Ports and slots

Rear view

1.
HDMI® 2.1 TMDS
7.
USB-A (USB 5Gbps), USB downstream
2.
DisplayPort™ 1.4 (HBR3 DSC)
8.
USB-A (USB 5Gbps), USB downstream
3.
DP out
9.
USB-A (USB 5Gbps), with BC 1.2 USB downstream
4.
USB-C® (USB 10Gbps), 140W/DP 1.4, upstream
10.
USB-C® (USB 5Gbps), 15W, USB downstream
5.
USB-B (USB 5Gbps), USB upstream
11.
USB-A (USB 5Gbps), USB downstream
6.
Ethernet (2.5GbE RJ-45)

ThinkVision P24QD-40 Monitor - Tech Specs

Lenovo ThinkVision P24QD-40 Monitor - Technical Specifications


Display
Panel Size23.8-inch
Screen Dimensions535.0 mm x 311.1 mm
Panel Type4-sided Ultra Thin, IPS
Active Area526.8 mm x 296.4 mm
BacklightWLED
Aspect Ratio16:9
Resolution2560 x 1440 (QHD)
Pixel Pitch0.2058 mm x 0.2058 mm
DPI/PPI123
Viewing Angle178° / 178°
Response Time4 ms (Extreme), 6 ms (Normal)
Refresh Rate48–120 Hz
Brightness300 cd/m²
Contrast Ratio1500:1 (Typical)
Dynamic Contrast Ratio3M:1 (Typical)
Color Gamut99% sRGB, 99% BT.709
Color Support16.7 Million
Color Depth8-bit (6+FRC)
HDR ComplianceYes (HDR10)
Anti-GlareYes
Connectivity
Video Signal1 x USB-C Gen2 (DP 1.4 Alt Mode HBR3), 1 x HDMI 2.1, 1 x DP 1.4 (HBR3), 1 x DP 1.4 Out
EthernetYes (RJ45, 2.5G)
USB Upstream1 x USB-B (USB 3.2 Gen 1), 1 x USB-C (USB 3.2 Gen 2, PD3.1 up to 140W, DP1.4 Alt Mode HBR3)
USB Downstream4 x USB-A (USB 3.2 Gen 1, 1 x BC1.2), 1 x USB-C (USB 3.2 Gen 1, up to 15W PD, data only)
Multimedia
Modular Camera/Speaker SupportYes (Optional)
Special Features
Factory CalibrationYes (Avg. Delta E<2 at sRGB)
KVM SwitchYes (with eKVM)
SoftwareLDFM, Lenovo ThinkColour
Natural Low Blue LightYes
Multi-syncYes
Mirror Power ButtonYes
Power
Consumption (Typical/Max)16.5W / 210W
Sleep/Off Mode< 0.5W
Switch-Off Mode< 0.3W
ENERGY STAR Consumption14.5W / 47.4kWh
Power SupplyInternal
Smart PowerYes
Voltage RequiredAC 100–240 V (50–60Hz)
What's in the Box
Monitor with StandYes
Power Cable1 x Power Cable (1.8 m)
DP Cable1 x DP 1.4 Cable (1.8 m)
USB Cable1 x USB Type-C to Type-C Gen2 Cable (1.5 m), 1 x USB Type-B to Type-A Gen1 Cable (1.8 m)
Factory Calibration ReportYes
Quick Setup GuideYes
Certifications
ENERGY STARYes
TCO10
TCO Edge2.1
EPEATGold
VOC CertificationYes
RoHSYes (2011/65/EU)
Windows CertificationWindows 10, Windows 11
EU Energy LevelLevel-D
China Energy EfficiencyTier 2
TÜV Rheinland Eye Comfort5 Stars
TÜV Rheinland Low Blue LightYes (Hardware Solution)
Eyesafe Display CertificationYes (Eyesafe 2.0)
Mechanical
Tilt Angle-5° / +23.5°
Swivel Angle-45° / +45°
Lift Range155 mm
Pivot-90° / +90°
VESA MountYes (100 x 100 mm)
ThinkCentre M Series Tiny SupportYes
