Tiny Desktop ThinkCentre M75q

Description

Performance

• Processor Options:
  • Up to AMD Ryzen™ 7 PRO 8700GE (Zen 4, 8 cores, 16 threads, boost up to 5.1 GHz, 16MB cache)
  • Other configurations: Ryzen™ 5 PRO 8500GE (6 cores, 12 threads, boost up to 5.0 GHz)
• Graphics: Integrated AMD Radeon™ RDNA graphics (depending on CPU)
• Chipset: AMD SoC platform
• Operating System: Windows 11 Pro (default), Linux options available

Memory & Storage

• RAM:
  • DDR5 SO-DIMM, up to 32GB DDR5-5200
  • Dual-channel capable (2 slots)
• Storage:
  • M.2 2280 PCIe Gen4 NVMe SSD, up to 1TB
  • Example: 256GB SSD TLC Opal (expandable)
• Storage Support: One drive, up to 1TB SSD

Display & Graphics

• External Display Support: via HDMI and DisplayPort outputs
• Resolution: Supports up to 4K external monitors
• Integrated Graphics: AMD Radeon Vega or RDNA depending on CPU generation

Connectivity & Ports

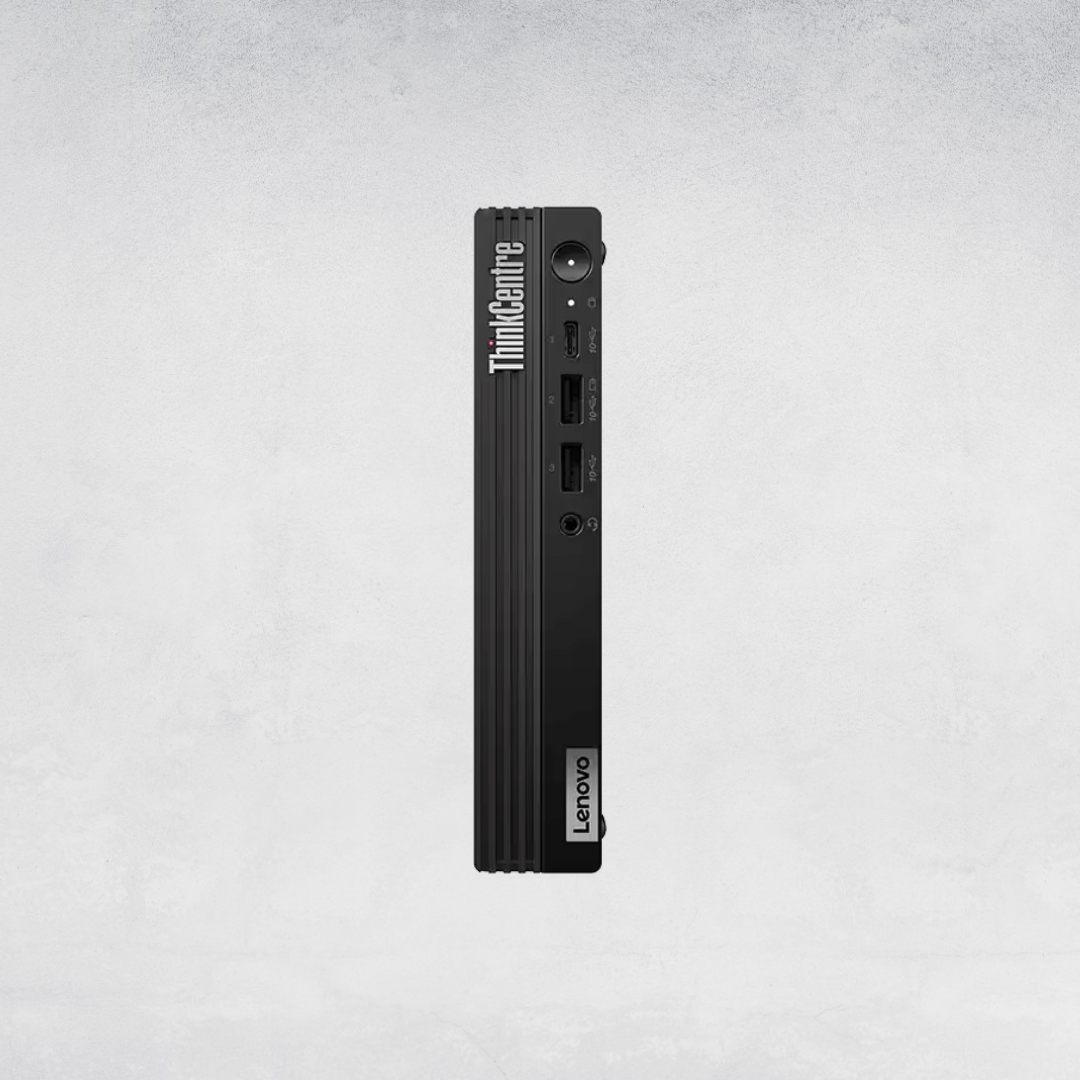

• Front Ports:
  • 2 × USB-A (USB 3.2 Gen 2 / Gen 1)
  • 1 × USB-C (USB 3.2 Gen 2)
  • 1 × Audio combo jack

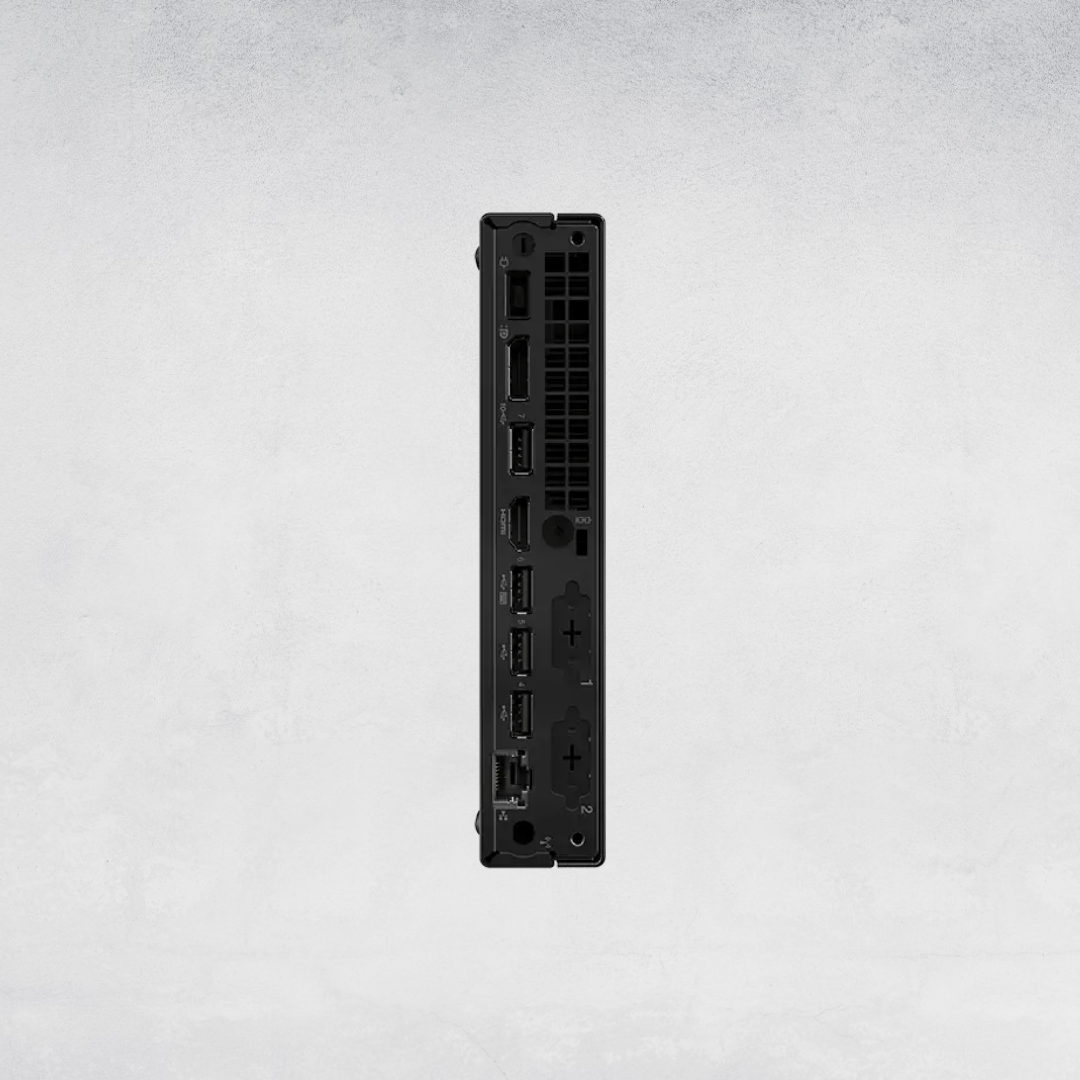

• Rear Ports:
  • 1 × USB-A (USB 3.2 Gen 2)
  • 2 × USB-A (USB 2.0)
  • 1 × HDMI-out 2.1
  • 1 × DisplayPort
  • 1 × Ethernet (RJ-45)
  • 1 × Power connector
• Wireless: Wi-Fi 6E, Bluetooth 5.3 (optional depending on configuration)

Design & Dimensions

• Form Factor: 1-liter Tiny Desktop (ultra-compact)
• Dimensions: 36.5 mm × 179 mm × 182.9 mm (H × W × D)
• Weight: ~1.32 kg (2.91 lbs)
• Mounting: VESA mount compatible (can be mounted behind monitor or under desk)
• Color: Black (ThinkCentre classic design)

Security & Management

• Features:
  • Smart USB protection
  • BIOS-based HDD password
  • Kensington® lock slot
• Enterprise Ready: AMD PRO technologies for manageability and enhanced security

Summary

The Lenovo ThinkCentre M75q Tiny Gen 5 is a compact 1-liter business desktop powered by AMD Ryzen PRO processors, offering enterprise-grade performance, DDR5 memory, PCIe Gen4 SSD storage, multiple USB/HDMI/DP ports, and Wi-Fi 6E. Its ultra-small form factor makes it ideal for offices, healthcare, retail, and education environments where space-saving, reliability, and efficiency are critical.
