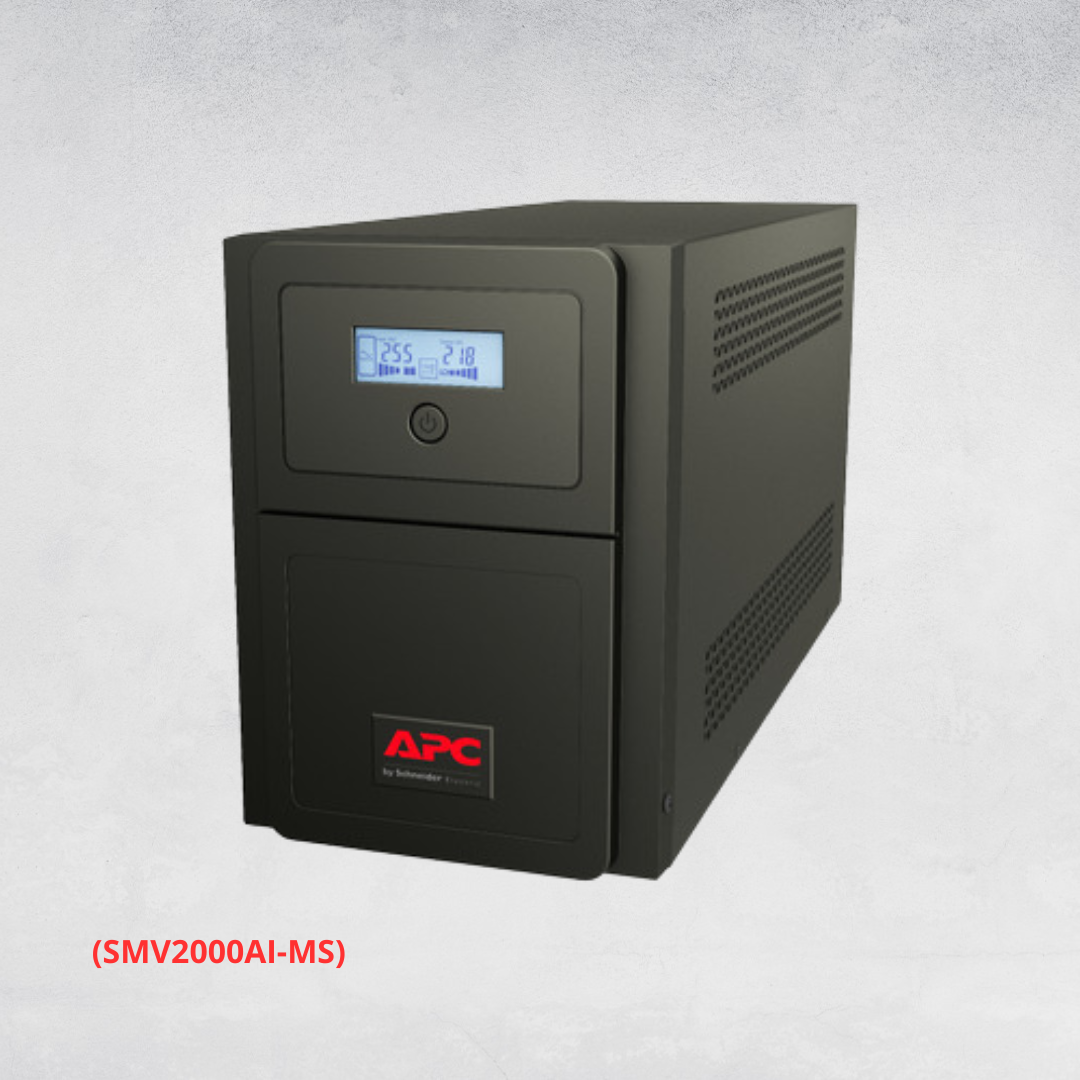

APC Easy UPS SMV 2000VA, Universal Outlet, 230V (SMV2000AI-MS)

Description

⚙️ Key Specifications
• Model: SMV2000AI-MS
• UPS Type: Line-Interactive
• Power Capacity: 2000VA / 1400W
• Nominal Input Voltage: 230V (range: 165–290V ±5V)
• Nominal Output Voltage: 230V
• Input Frequency: 50/60 Hz ±1 Hz (auto-sensing)
• Output Frequency: 50/60 Hz ±1 Hz (unsynchronized)
• Waveform Type: Pure sine wave
• Voltage Regulation: Automatic Voltage Regulation (AVR)
• Transfer Time: 2–6 ms typical, 12 ms max
• Crest Factor: 3:1
🔋 Battery System
• Battery Type: Sealed lead-acid (VRLA), maintenance-free
• Battery Configuration: 2 × 12V / 10Ah
• Battery Voltage: 24V DC
• Recharge Time: 4–6 hours to 90% capacity
• Battery Life Expectancy: 3–5 years
• Replacement Battery: APCRBCV207
• Extended Runtime: Not supported
🧩 Features & Connectivity
• Display: LCD panel with real-time status indicators
• Control Panel Modes:
• AC Mode
• AVR Mode
• Battery Mode
• Battery Level
• Load Level
• Input/Output Voltage
• System Error
• Battery Malfunction
• Audible Alarms:
• Battery mode
• Low battery
• Overload

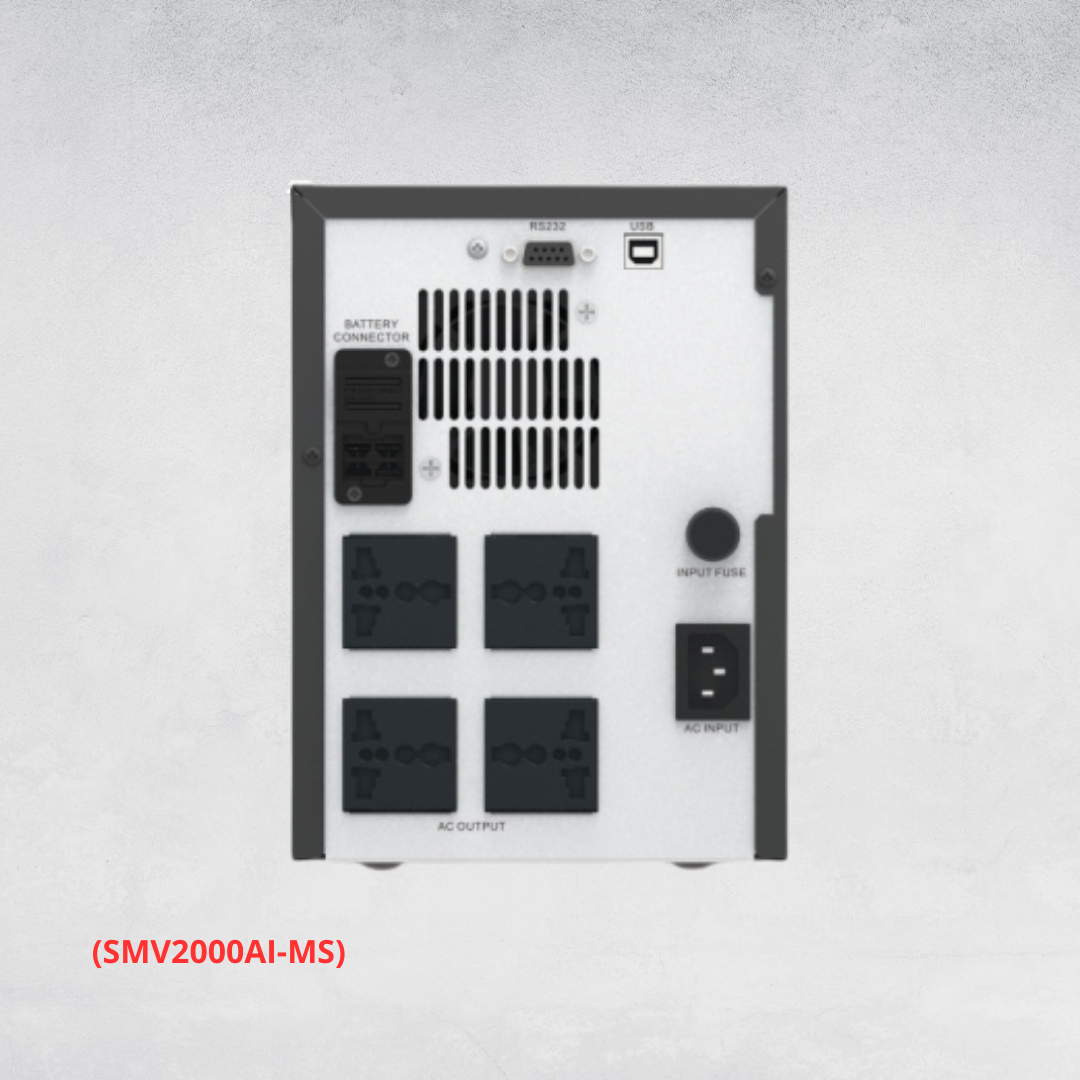

• Interface Ports: USB, RS-232
• Surge Protection: 190 Joules
• Output Connections: 4 × Universal battery backup outlets
• Input Connection: IEC C14
📦 Dimensions & Weight
• Unit Dimensions (HxWxD): 220 × 160 × 410 mm
• Shipping Dimensions: 339 × 272 × 508 mm
• Net Weight: ±18.5 kg
• Shipping Weight: ±21.5 kg
• Mounting Mode: Tower only (non-rackable)
• Color: Black
✅ Certifications & Environment
• Certifications: CE, TISI
• Protection Class: IP20
• Operating Temperature: 0–40°C
• Humidity Range: 0–95% (non-condensing)
• Altitude: Up to 3000 m
• Noise Level: ≤ 45 dBA
• Warranty: 2 years repair or replace
