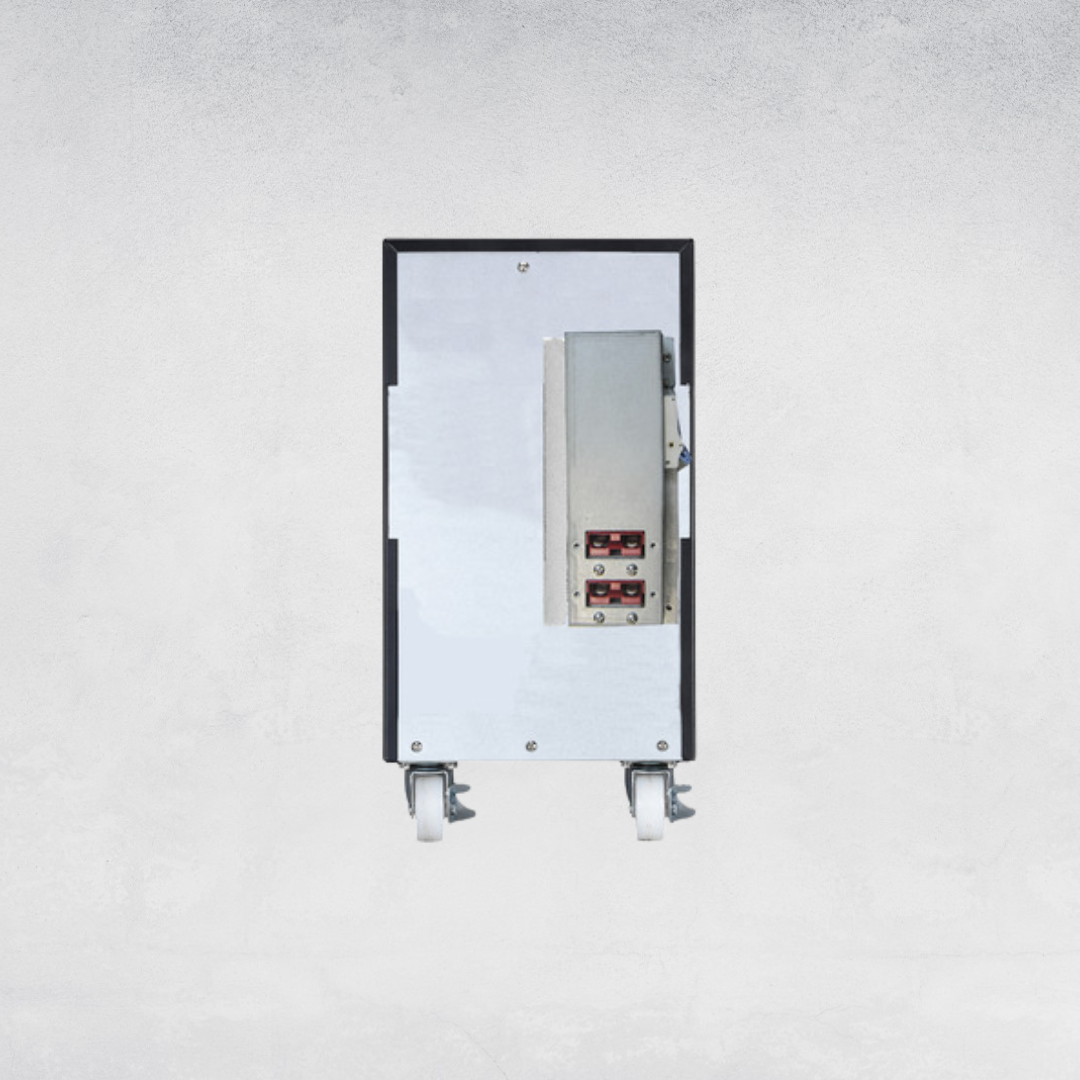

APC Easy UPS SRV 240V Battery Pack for 6&10kVA Tower No Battery Model (SRV240BP-9A)

APC Easy UPS SRV 240V Battery Pack for 6&10kVA Tower (SRV240BP-9A) External tower-style battery enclosure designed for APC Easy UPS SRV 6kVA and 10kVA models. Supports 240V DC configuration with up to 20 sealed lead-acid batteries (user-installed). Ships without batteries, enabling flexible runtime customization for critical power applications.

Description

⚙️ Key Specifications
• Model: SRV240BP-9A
• Product Type: External Battery Pack (Empty)
• Compatible UPS Models: APC Easy UPS SRV6KIL / SRV10KIL
• Battery Voltage: 240V DC
• Battery Type: Sealed Maintenance-Free (SMF) Lead-Acid, 12V 9Ah (user-installed)
• Battery Quantity (Max): 20 batteries
• Battery Capacity (Max): 2160VAh
• Battery Slots (Filled/Free): 0 / 0
• Battery Expansion: Supports up to 4 packs in parallel
• Runtime Extension: Yes, scalable with multiple packs
🧩 Features & Equipment
• Form Factor: Tower
• Mounting Mode: Floor-mounted (not rack-mountable)
• Included Accessories:
• Battery cable
• User manual
• Color: Black
• USB Compatible: No
📦 Dimensions & Weight
• Unit Dimensions (HxWxD): 368 × 190 × 485 mm
• Net Weight: ±60 kg (without batteries)
• Shipping Dimensions: 460 × 290 × 570 mm
• Shipping Weight: ±68 kg
✅ Certifications & Environment
• Certifications: CE, UKCA, EAC, EN/IEC 62040-1
• Operating Temperature: 0–40°C
• Humidity Range (Operation & Storage): 0–95% (non-condensing)
• Altitude (Operation): Up to 3000 m
• Altitude (Storage): Up to 15000 m
• Warranty: 2 years repair or replace
