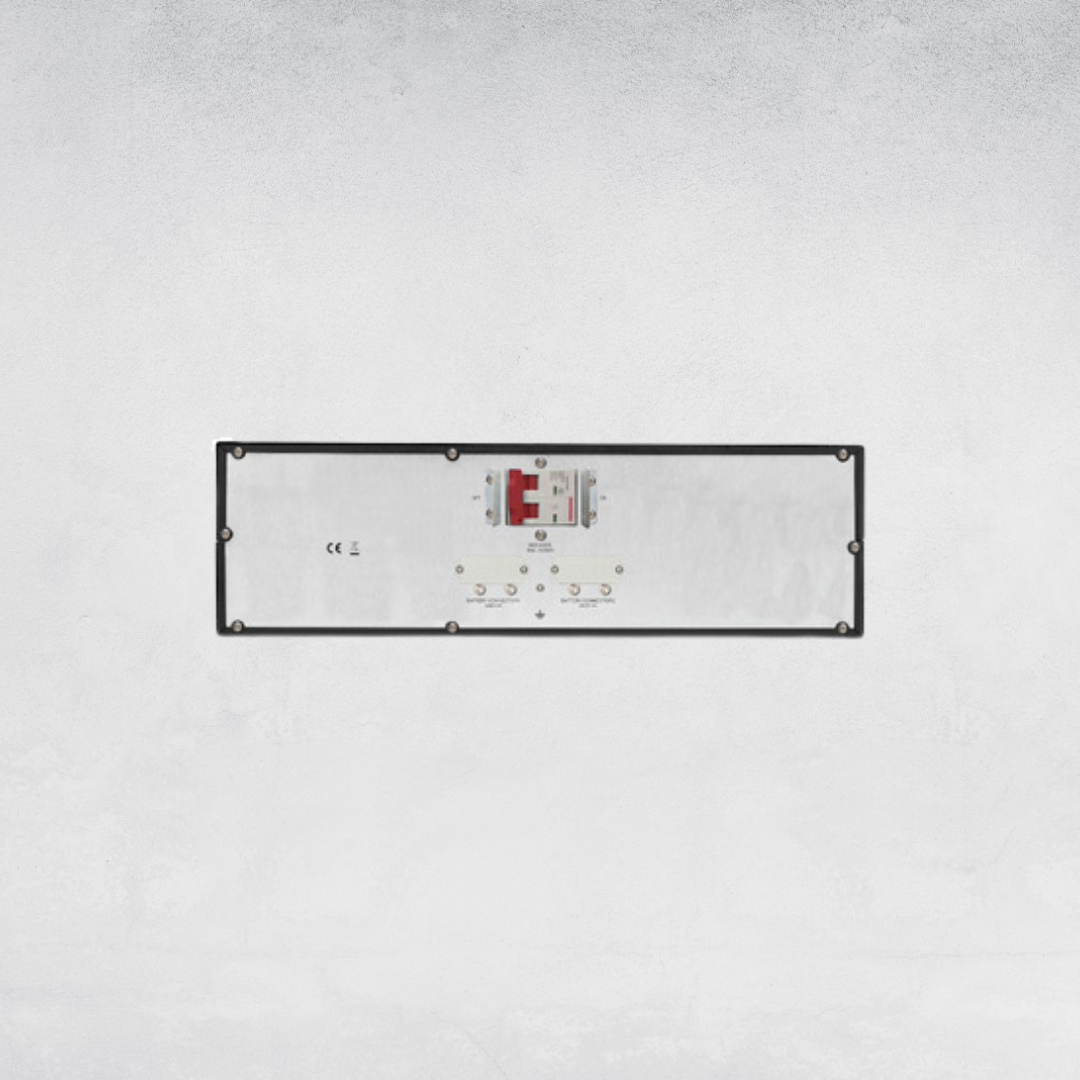

APC Easy UPS SRV 240V RM Battery Pack for 6&10kVA Rack, Extended Runtime model (SRV240RLBP-9A)
APC Smart-UPS RT 192V Battery Pack (SRTG192XLBP4) High-capacity external battery pack with 32×5Ah sealed lead-acid cells, delivering 192V DC for extended runtime. Designed for APC Smart-UPS RT 5–10kVA models. Rackmountable 3U form factor, scalable backup support, ideal for mission-critical IT environments. Rail kit not included.
Description
⚙️ Key Specifications
- Model: SRV240RLBP-9A
- Product Type: External Battery Pack
- Compatible UPS Models: APC Easy UPS SRV 6kVA / 10kVA Rackmount Extended Runtime
- Battery Type: Sealed Lead-Acid (VRLA), maintenance-free
- Battery Voltage: 240V DC
- Battery Capacity: 2160VAh
- Battery Quantity: 20 × 12V 9Ah
- Battery Slots (Filled/Free): 0 / 0
- Battery Expansion: Up to 4 packs in parallel
- Runtime Extension: Yes, scalable with multiple packs
🧩 Features & Equipment
- Form Factor: Rackmount (3U height)
- Mounting Mode: Rack-mounted with kit
- Included Accessories:
- Battery cable
- Rack mounting brackets
- User manual
- Rail Kit: Optional (not included)
- Color: Black
- USB Compatible: No
📦 Dimensions & Weight
- Unit Dimensions (HxWxD): 133 × 438 × 606 mm
- Net Weight: ±63 kg
- Shipping Dimensions: 250 × 870 × 580 mm
- Shipping Weight: ±70 kg
✅ Certifications & Environment
- Certifications: CE, UKCA, EAC, EN/IEC 62040-1
- Operating Temperature: 0–40°C
- Humidity Range (Operation & Storage): 0–95% (non-condensing)
- Altitude (Operation): Up to 3000 m
- Altitude (Storage): Up to 15000 m
- Warranty: 2 years repair or replace
