APC Easy UPS SRV RM 10000VA 230V with RailKit, External Battery Pack (SRV10KRIRK)

APC Easy UPS SRV RM 10000VA 230V with Rail Kit & External Battery Pack (SRV10KRIRK) High-capacity 3U rackmount UPS with double-conversion technology and external battery pack for extended runtime. Delivers 10kW of pure sine wave output, ideal for data centers, enterprise servers, and mission-critical systems. Includes LCD interface, USB/RS-232 ports, Smart Slot, and complete rail kit for seamless rack integration.

Description

⚙️ Key Specifications
• Model: SRV10KRIRK
• UPS Type: On-Line Double Conversion
• Power Capacity: 10000VA / 10000W
• Input / Output Voltage: 230V (configurable to 220V / 240V)
• Frequency: 50/60Hz (auto-sensing & synchronized)
• Output Waveform: Pure sine wave
• Efficiency: Up to 94% at full load

🔋 Battery System
• Battery Type: External VRLA (Valve Regulated Lead Acid)
• Battery Voltage: 240V DC
• Battery Configuration: External battery pack included
• Recharge Time: ±7 hours
• Battery Expansion: Supports additional external battery packs

🧩 Features & Connectivity
• Display: Multifunction LCD panel
• Communication Ports: USB, RS-232, Smart Slot
• Bypass: Automatic & Manual
• Emergency Power Off (EPO): Yes
• Included Accessories:
• USB & RS-232 cables

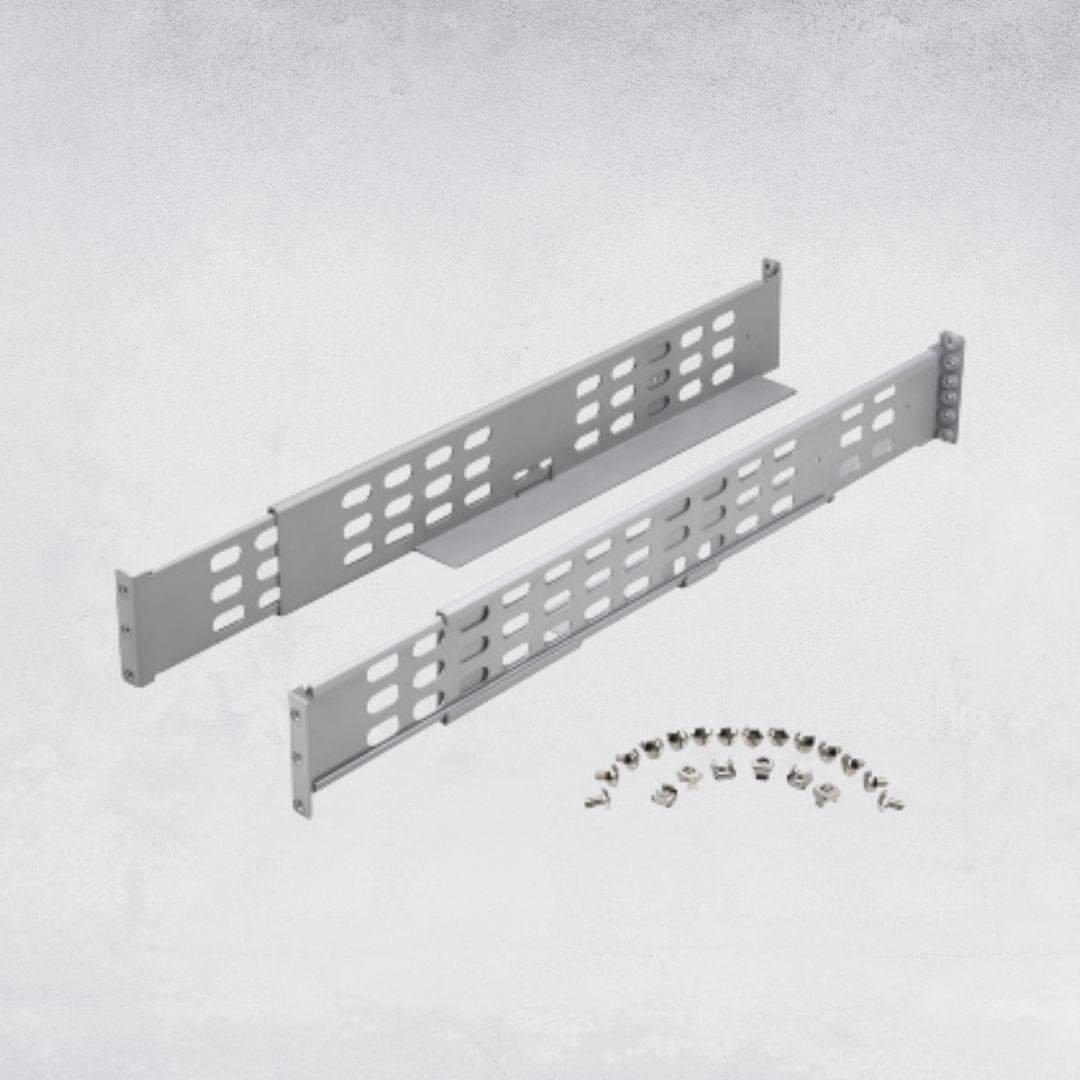

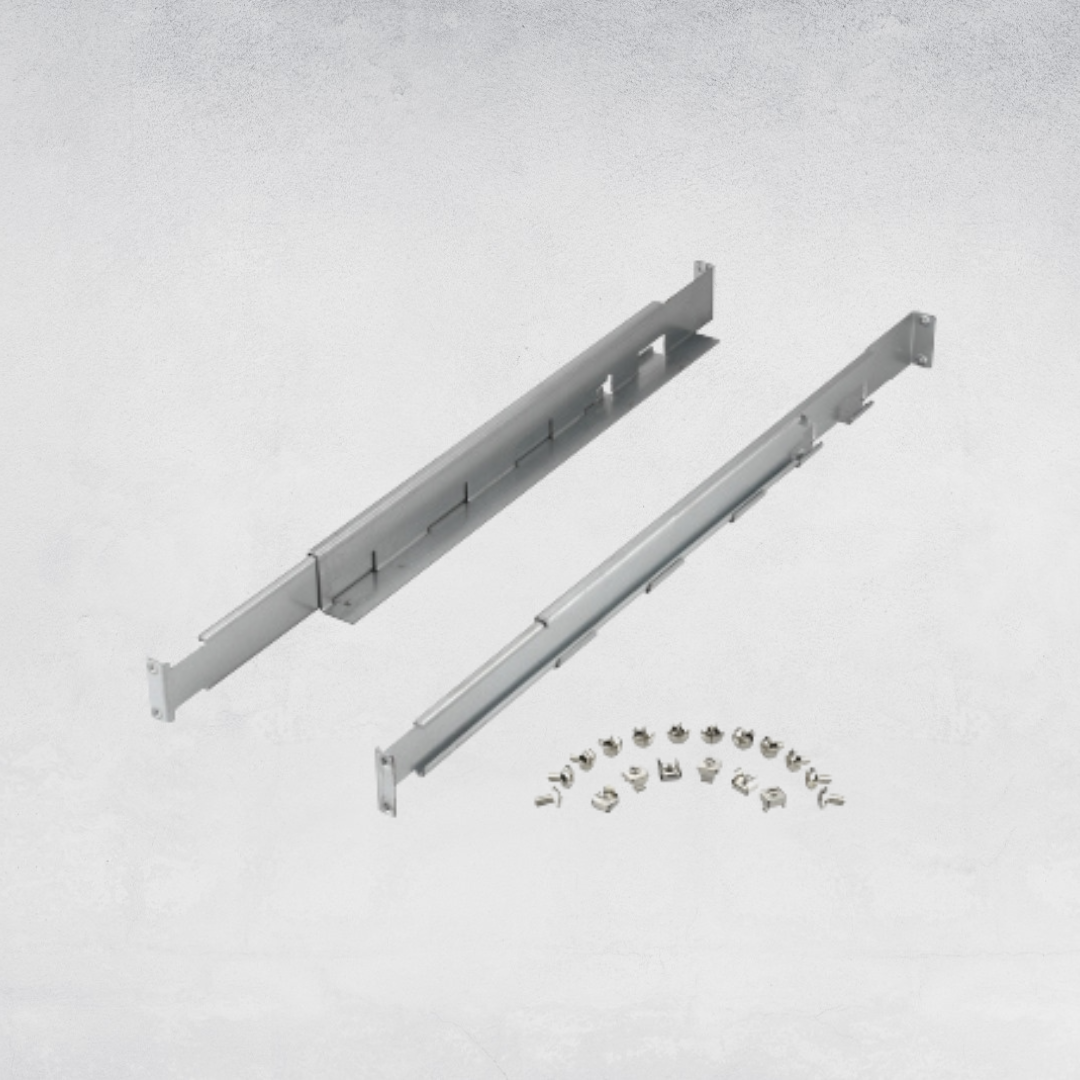

• Rack mounting brackets & rail kit

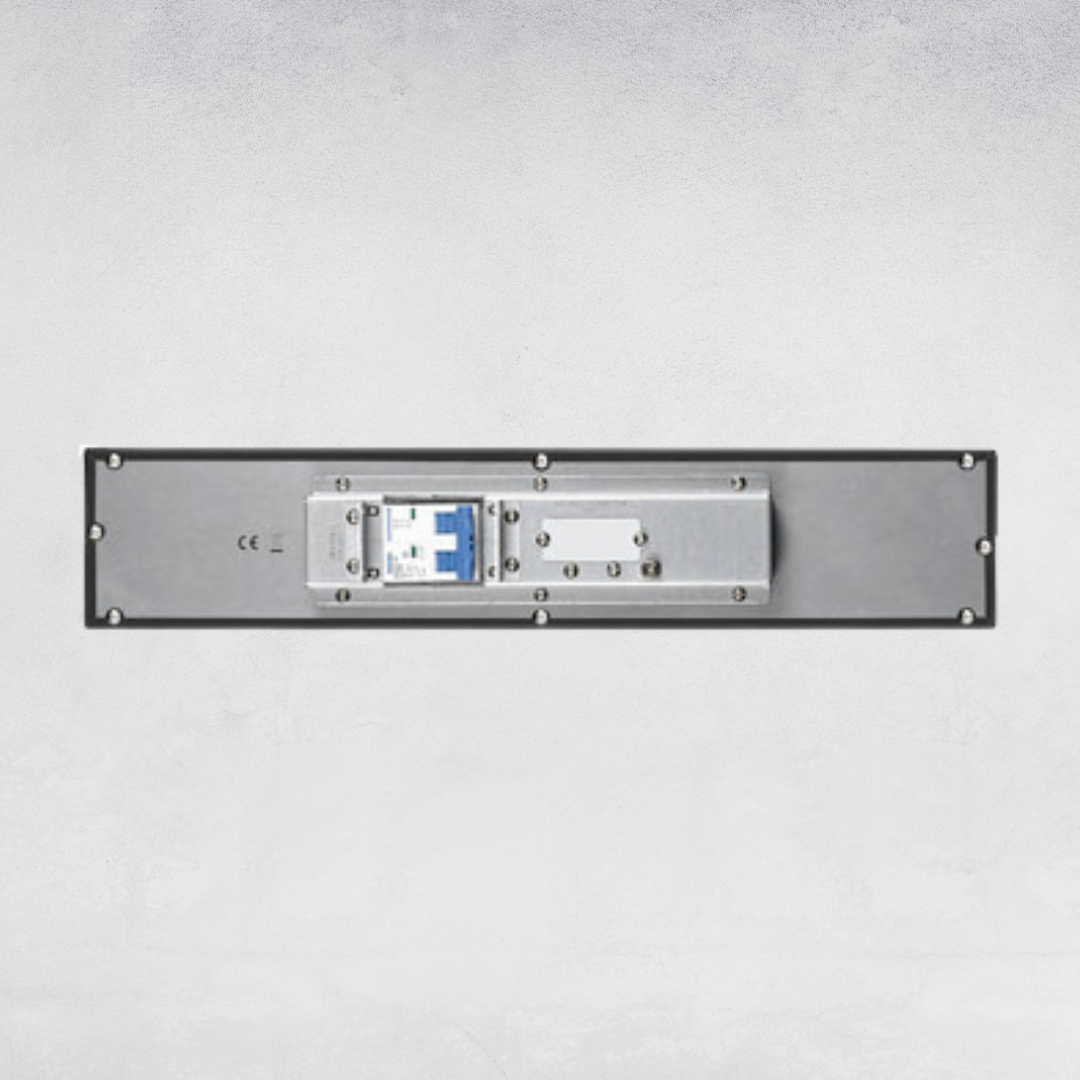

• External battery pack

📦 Dimensions & Weight
• UPS Size (HxWxD): 13 × 43.8 × 59.5 cm
• Battery Pack Size: 13 × 43.8 × 59.5 cm
• UPS Weight: ±38 kg
• Battery Pack Weight: ±90 kg
• Rack Height: 3U per unit
• Mounting: Horizontal (rack-mounted)
• Color: Black (RAL 7010)

✅ Certifications & Environment
• Certifications: CE, TISI
• Standards: EN/IEC 62040-1 & EN/IEC 62040-2
• Operating Temp: 0–40°C
• Humidity: 0–95% (non-condensing)
• Altitude: Up to 3000 m
• Noise Level: 55 dBA
• Warranty: 2 years (repair or replacement)
