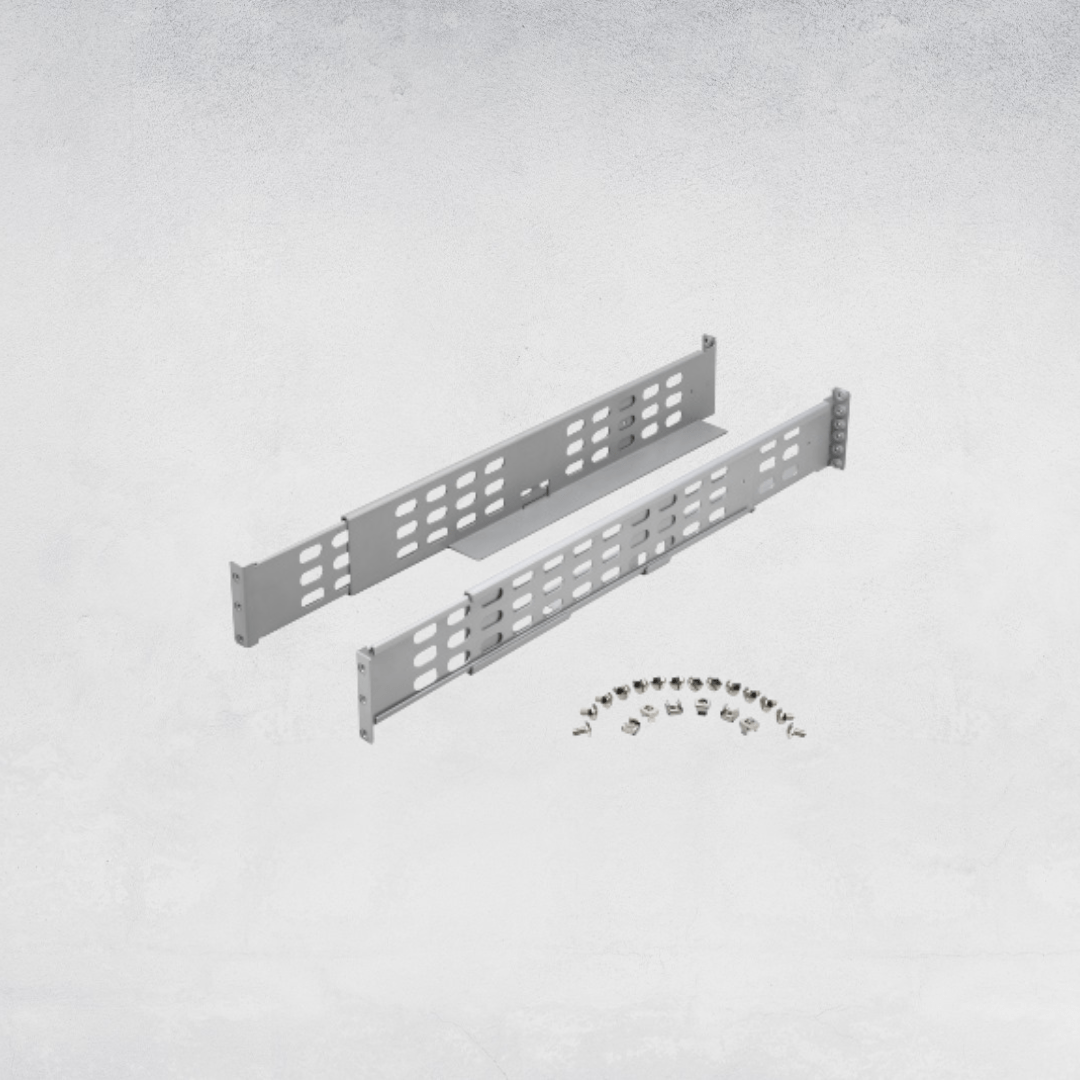

APC Easy UPS SRV RM 6000VA 230V ,with RailKit, External Battery Pack (SRV6KRIRK)

Description

Technical Specifications

Power & Output

• Rated Capacity: 6.0 kVA / 6.0 kW

• Topology: Double-conversion Online UPS (true online)

• Output Voltage (nominal): 230 V AC

• Selectable Output Voltages: 220 V / 230 V / 240 V

• Output Frequency: 50/60 Hz ±3 Hz (synchronized to mains)

• Waveform Type: Pure sine wave

• Load Crest Factor: 3:1

• Bypass: Internal bypass (automatic and manual) for fault tolerance & maintenance bypass support

Input

• Input Voltage (Nominal): 230 V AC (supports 220 / 230 / 240 V)

• Input Voltage Range: ~110 – 300 V (at half load), ~176 – 300 V (at full load) depending on configuration.

• Input Frequency Range: 40 – 70 Hz (auto-sensing)

• Input Connection: Hard-wired 3-wire (1P + N + E) for both input and output.

• Power Factor (Input): 0.99 (or close to unity), helping compatibility with generator / mains supply design.

Battery & Runtime

• Battery Type: Sealed lead-acid (VRLA), maintenance-free.

• Battery Bank Voltage: 192 V (external / extended runtime battery pack)

• Battery Recharge Time: Approx. 3–4 hours (to full charge) depending on battery pack configuration.

• Runtime (Example): > 7 minutes at 70% load (with external battery pack), variable depending on load and battery configuration.

• Battery Management: Intelligent battery management and charger for optimized battery life and reliability.

Management & Communications

• User Interface: Multifunction LCD status & control console for real-time monitoring and UPS configuration.

• Communication Ports:

  • RS-232 (DB-9)

  • USB port

  • SmartSlot / Intelligent Slot for optional network management card (e.g. network-based monitoring, remote shutdown)

  • Audible Alarms: Battery mode alarm, low battery warning, continuous tone overload warning. Emergency Power Off (EPO): Supported

• Communication & Management Software Support: Compatible with central UPS management platforms (e.g. EcoStruxure IT or third-party monitoring software) when network card is installed. Form Factor: Rack-mount (4U or 5U depending on configuration) — suitable for 19″ server racks.

• Dimensions (UPS unit): approx. Height 173 mm × Width 438 mm × Depth 710 mm (for the SRV6KRILRK version with external battery pack / rail kit)

• Weight (Net): ~61 kg (unit only)

• Color: Black (standard rack server look)

Protection & Safety

• Surge Energy Rating: 600 Joules (surge / transient protection)

• Overload Protection / Short-Circuit Protection: Yes, with automatic bypass fallback for uninterrupted power.

• EMI / RFI Filtering: Included to ensure clean power output.

• Approvals & Certifications: CE, IEC 62040-1, IEC 62040-2 (and other regional safety/ EMC standards as applicable)

• Protection Class: IP20 (standard rack environment protection)

Environment & Operating Conditions

• Operating Temperature Range: 0 °C – 40 °C

• Operating Humidity: 0–95% (non-condensing)

• Operating Altitude: Up to 3,000 meters above sea level

• Storage Temperature: –15 °C – 60 °C

• Noise Level (approx.): 55 dBA at 1 meter distance

Warranty

• Standard Warranty: 2 years (unit + battery)
