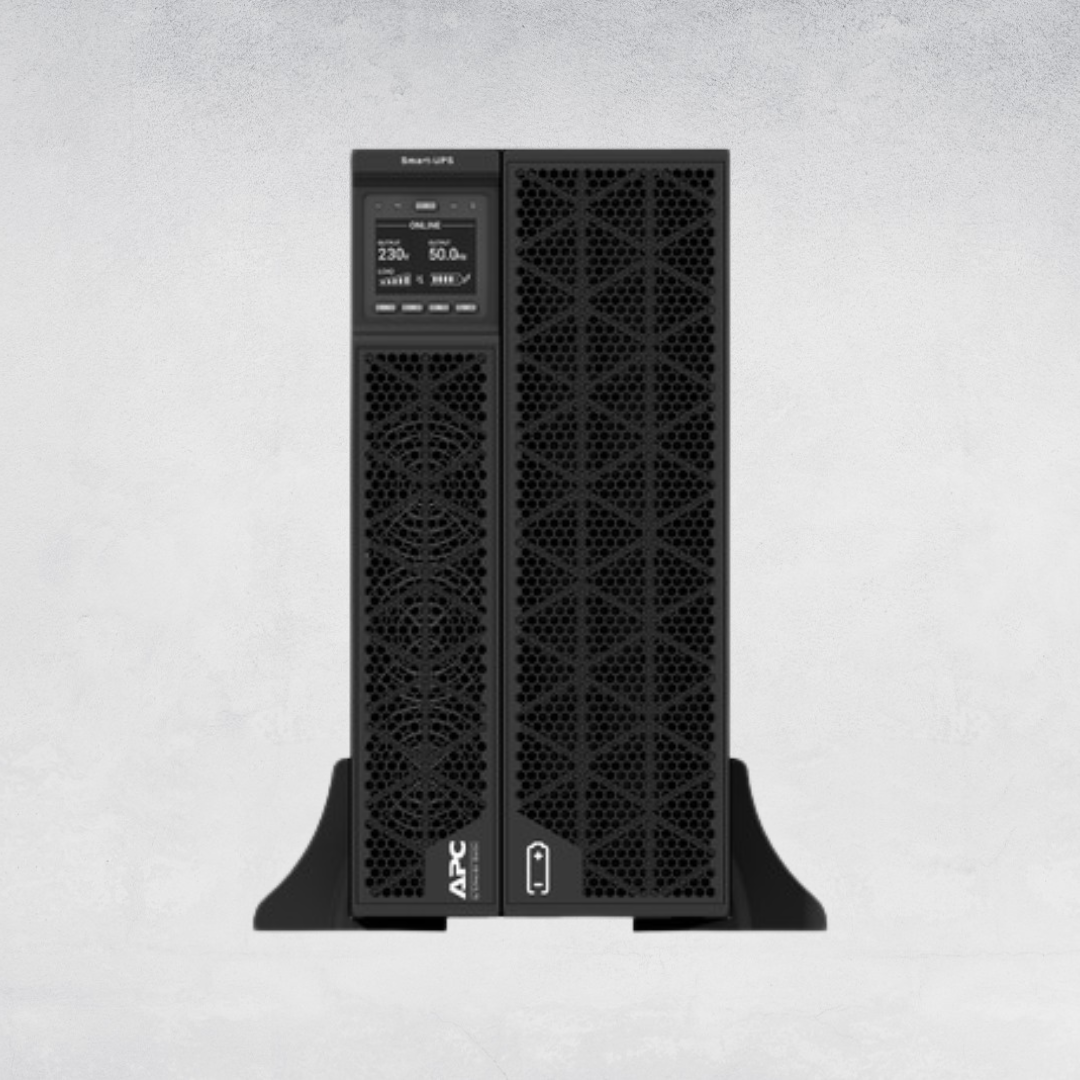

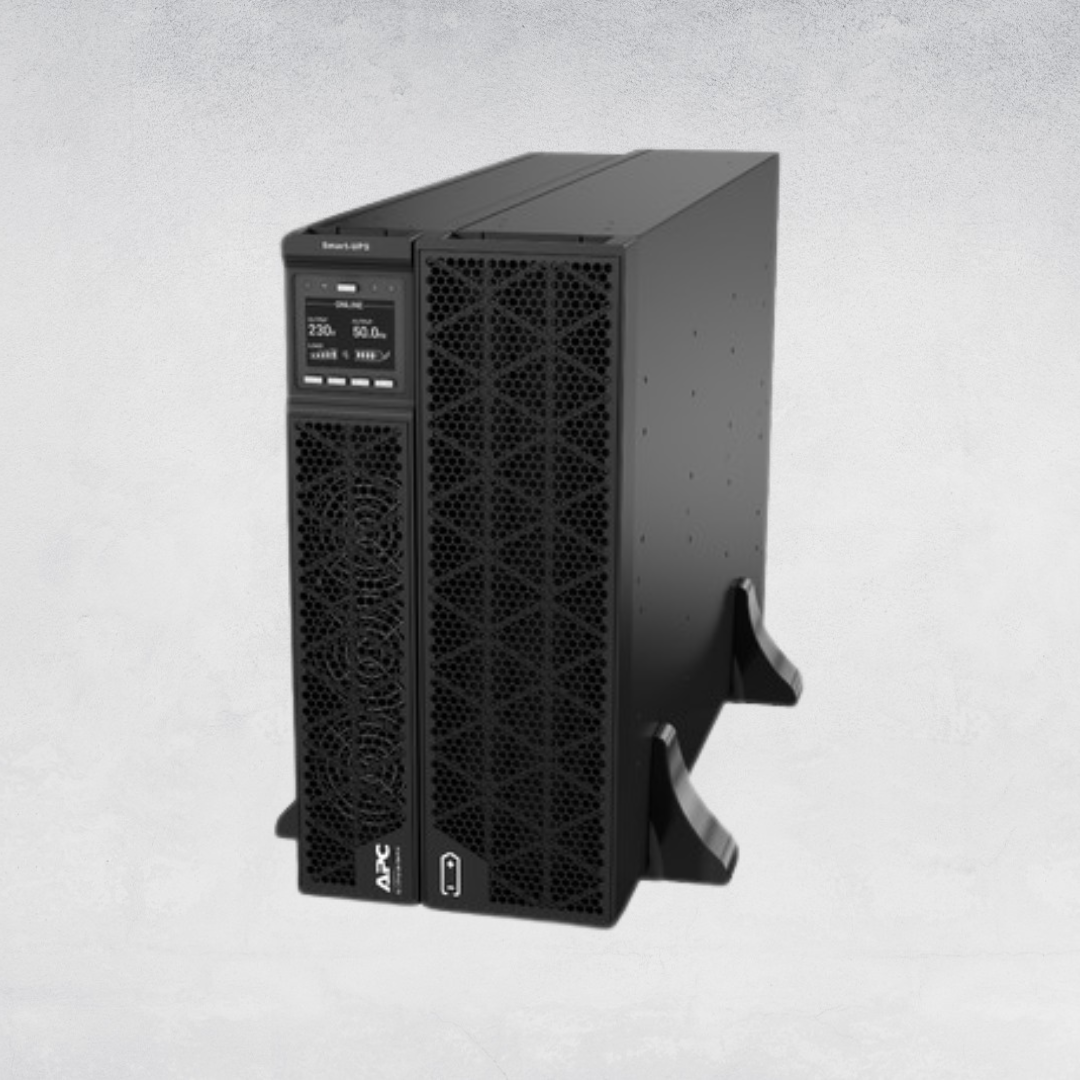

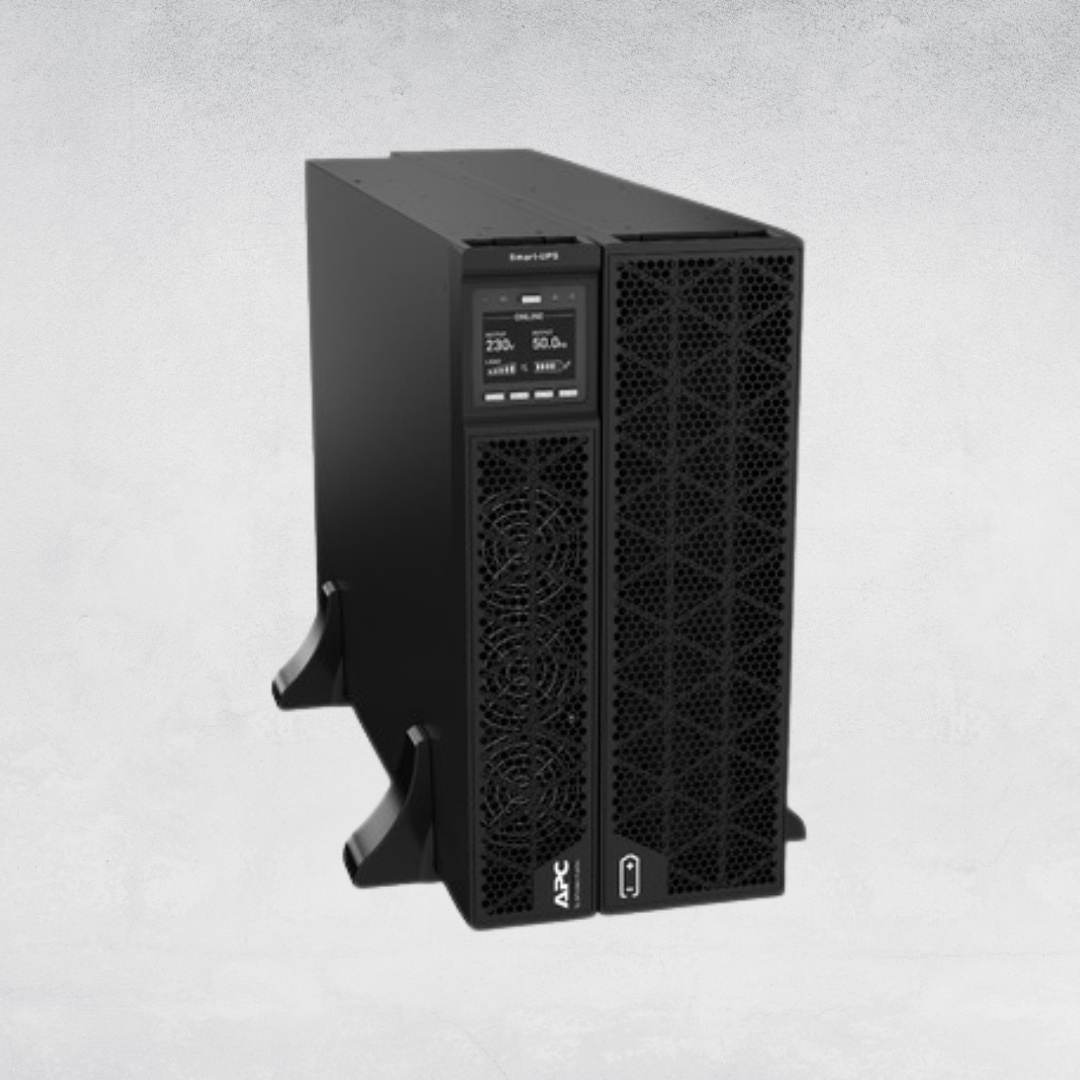

APC Smart-UPS RT 10kVA 230V (SRTG10KXLI)

APC Smart-UPS RT 10kVA 230V (SRTG10KXLI)
High-capacity online UPS delivering 10kW of pure sine wave power for enterprise-grade IT, industrial, and medical applications. Features advanced battery management, LCD control panel, and flexible rack/tower installation. Ideal for servers, data centers, and sensitive equipment requiring uninterrupted, clean power.

Description

⚙️ Key Specifications
• Model: SRTG10KXLI
• UPS Type: Online Double Conversion
• Power Capacity: 10000VA / 10000W
• Input Voltage: 230V (compatible with 220V / 240V)
• Output Voltage: 230V (configurable to 220V / 240V)
• Input Frequency: 40–70 Hz (auto-sensing)
• Output Frequency: 50/60 Hz ±3 Hz (synchronized to mains)
• Output Waveform: Pure sine wave
• Efficiency: Up to 94% at full load
• Crest Factor: 3:1
• Total Harmonic Distortion: ≤ 3%
🔋 Battery System
• Battery Type: VRLA (Valve Regulated Lead Acid)
• Battery Voltage: 192V DC
• Battery Runtime: ~3 minutes at full load (9000W)
• Recharge Time: ±1.5 hours
• Battery Capacity: 1352 VAh
• Replacement Battery: APCRBC140
• Battery Life Expectancy: 3–5 years
• Battery Expansion: Supports external battery packs
🧩 Features & Connectivity
• Display: Multifunction LCD panel with real-time status and control
• Communication Ports: USB, RS-232
• SmartSlot: Compatible with Network Management Card (NMC)
• Bypass Function: Internal (automatic and manual)
• Emergency Power Off (EPO): Yes
• Surge Protection: Integrated
• Included Accessories:
• USB cable
• RS-232 configuration cable
• Temperature probe
• Removable support feet
• Documentation CD
• Web/SNMP management card
📦 Dimensions & Weight
• Size (HxWxD): 43.2 × 13 × 71.9 cm
• Rack Height: 3U
• Net Weight: ±54.4 kg

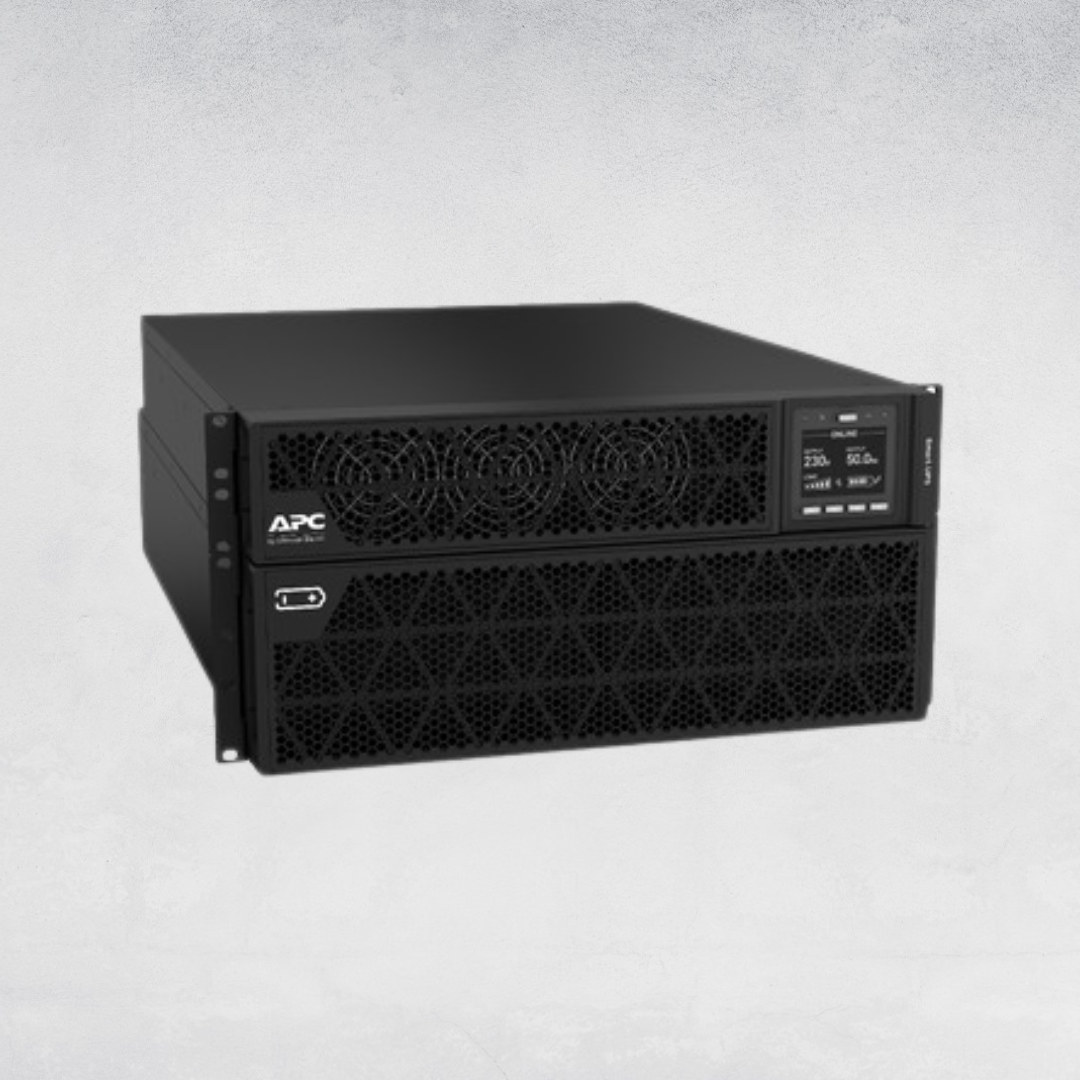

• Mounting Options: Rack or tower convertible
• Color: Black (RAL 7010)
✅ Certifications & Environment
• Certifications: CE, EAC, RCM, VDE, IRAM
• Compliance Standards: EN/IEC 62040-1 & EN/IEC 62040-2
• Operating Temperature: 0–40°C
• Humidity Range: 0–95% (non-condensing)
• Maximum Altitude: Up to 3000 m
• Noise Level: 55 dBA
• Warranty: 3 years UPS / 2 years battery
