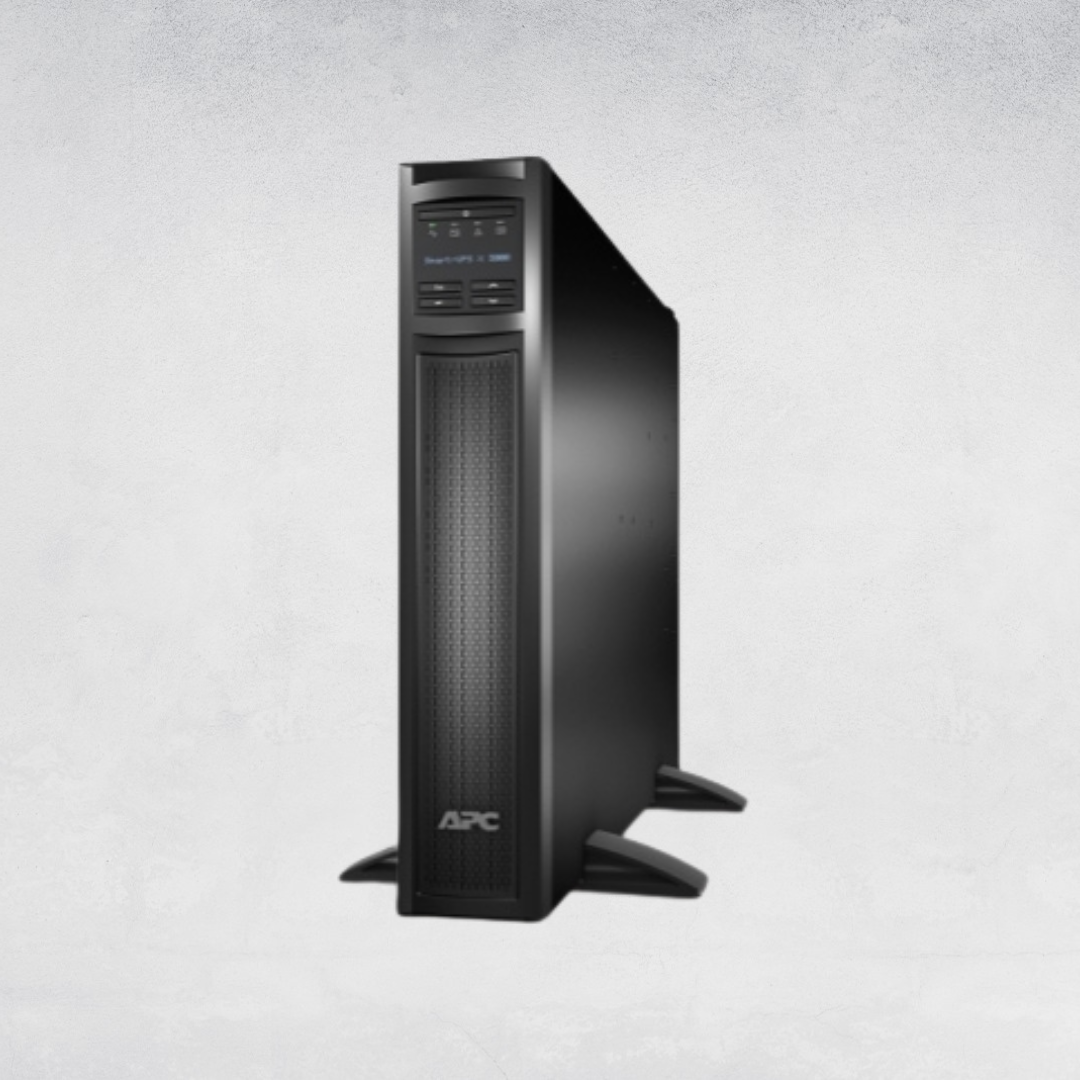

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card (SMX3000RMHV2UNC)

Description

⚙️ Key Specifications
• Model: SMX3000RMHV2UNC
• UPS Type: Line-Interactive
• Power Capacity: 3000VA / 2700W
• Nominal Output Voltage: 230V (user-selectable: 220V / 240V)
• Nominal Input Voltage: 230V
• Input Frequency: 50/60 Hz ±3 Hz (auto-sensing)
• Output Frequency: 50/60 Hz ±3 Hz (sync to mains)
• Waveform Type: Pure sine wave
• Voltage Regulation: Automatic Voltage Regulation (AVR)
• Transfer Time: 2–6 ms typical, 10 ms max
• Efficiency: Up to 98% in AVR mode
• Topology: Line-Interactive
🔋 Battery System
• Battery Type: Maintenance-free sealed lead-acid (VRLA)
• Battery Configuration: Internal APCRBC115
• Battery Voltage: 48V DC
• Battery Runtime: ~6 minutes at full load (2700W)
• Recharge Time: ±3 hours

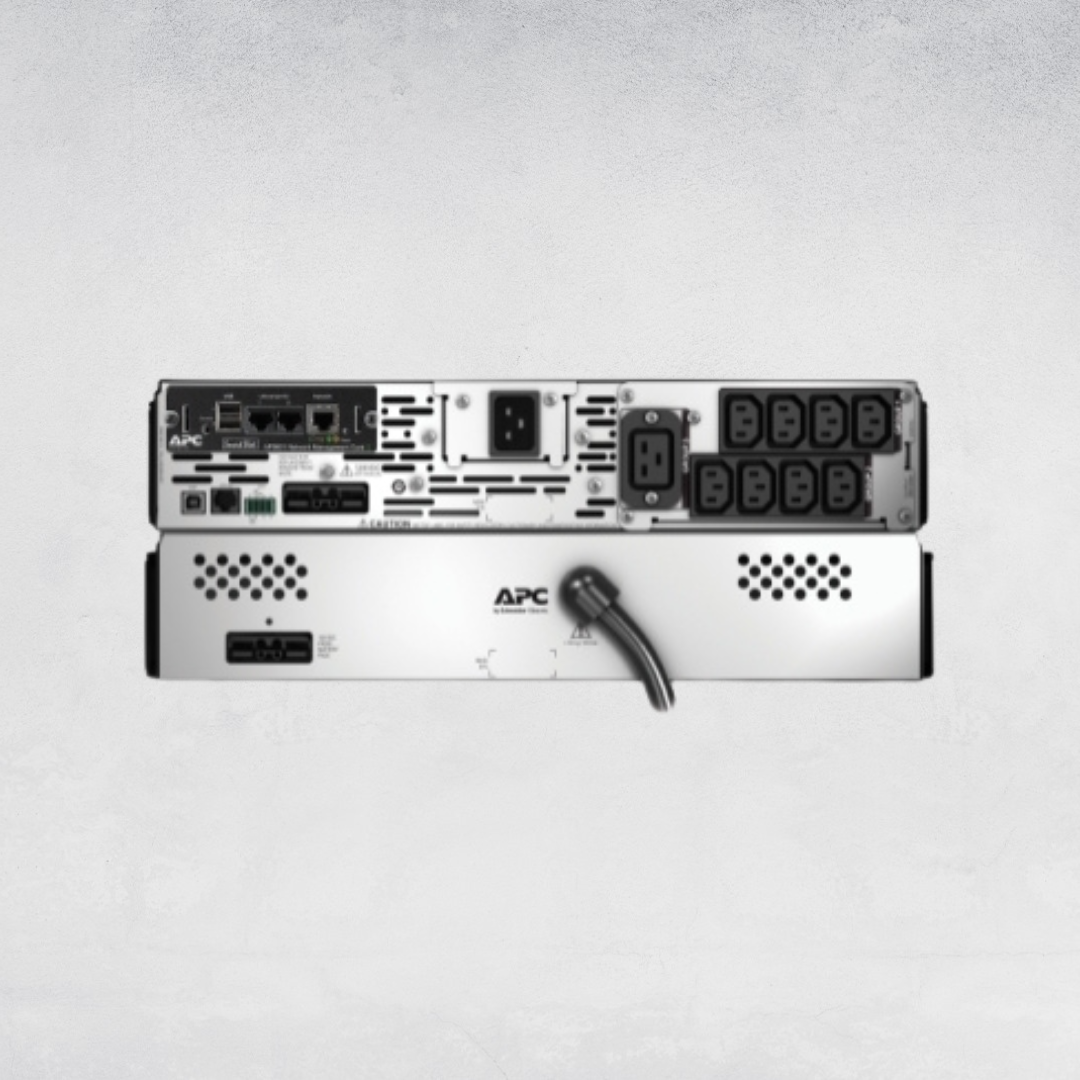

• Battery Expansion: Supports external battery packs (SMX48RMBP2U)
• Expected Battery Life: 3–5 years
🧩 Features & Connectivity
• Display: Multifunction LCD panel with real-time status and control
• Interface Ports: USB, Serial (RS-232), SmartSlot
• Network Card: Pre-installed Network Management Card (AP9641)
• SmartSlot: 1 slot for optional accessories
• Audible Alarms:
• On battery
• Low battery
• Overload
• Emergency Power Off (EPO): Yes

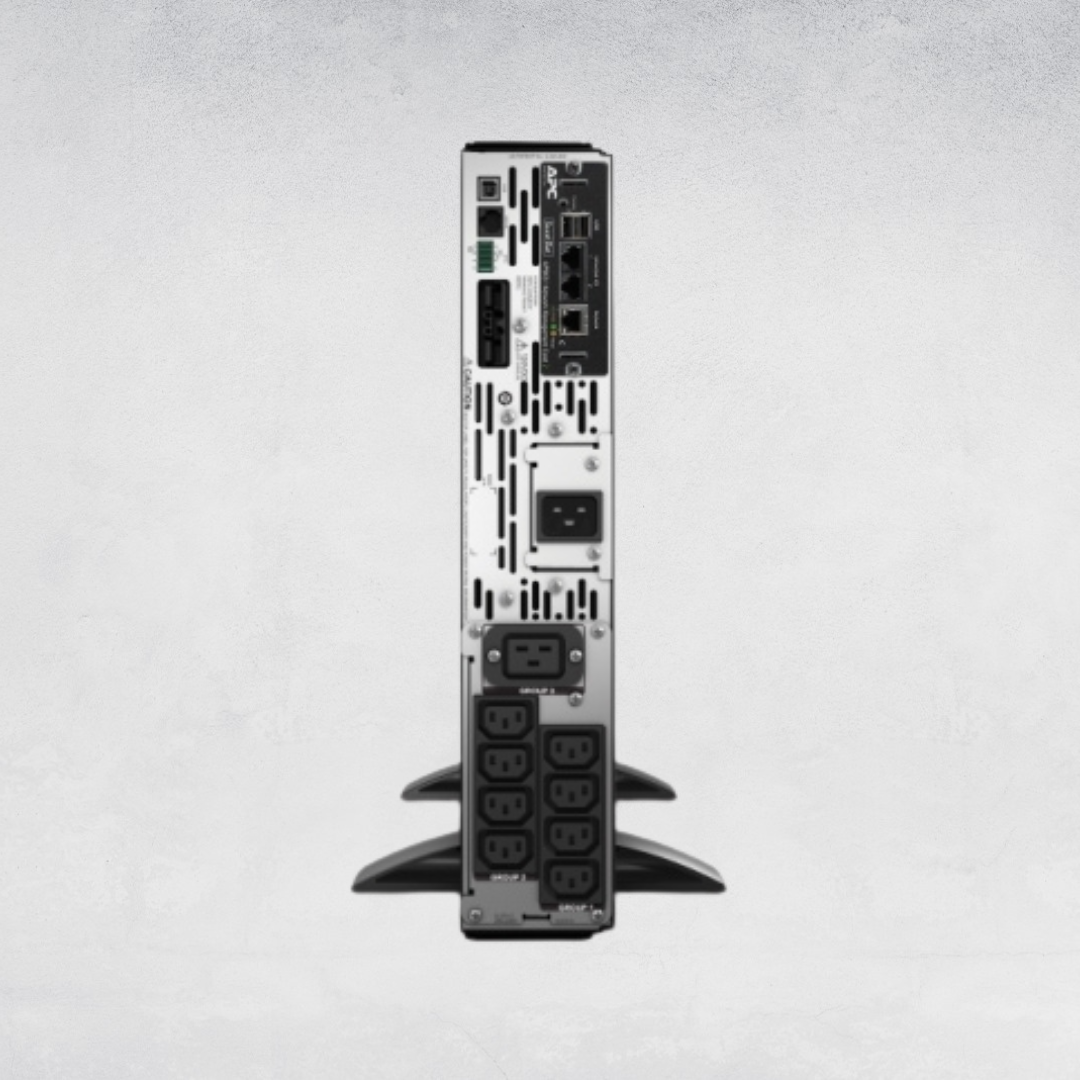

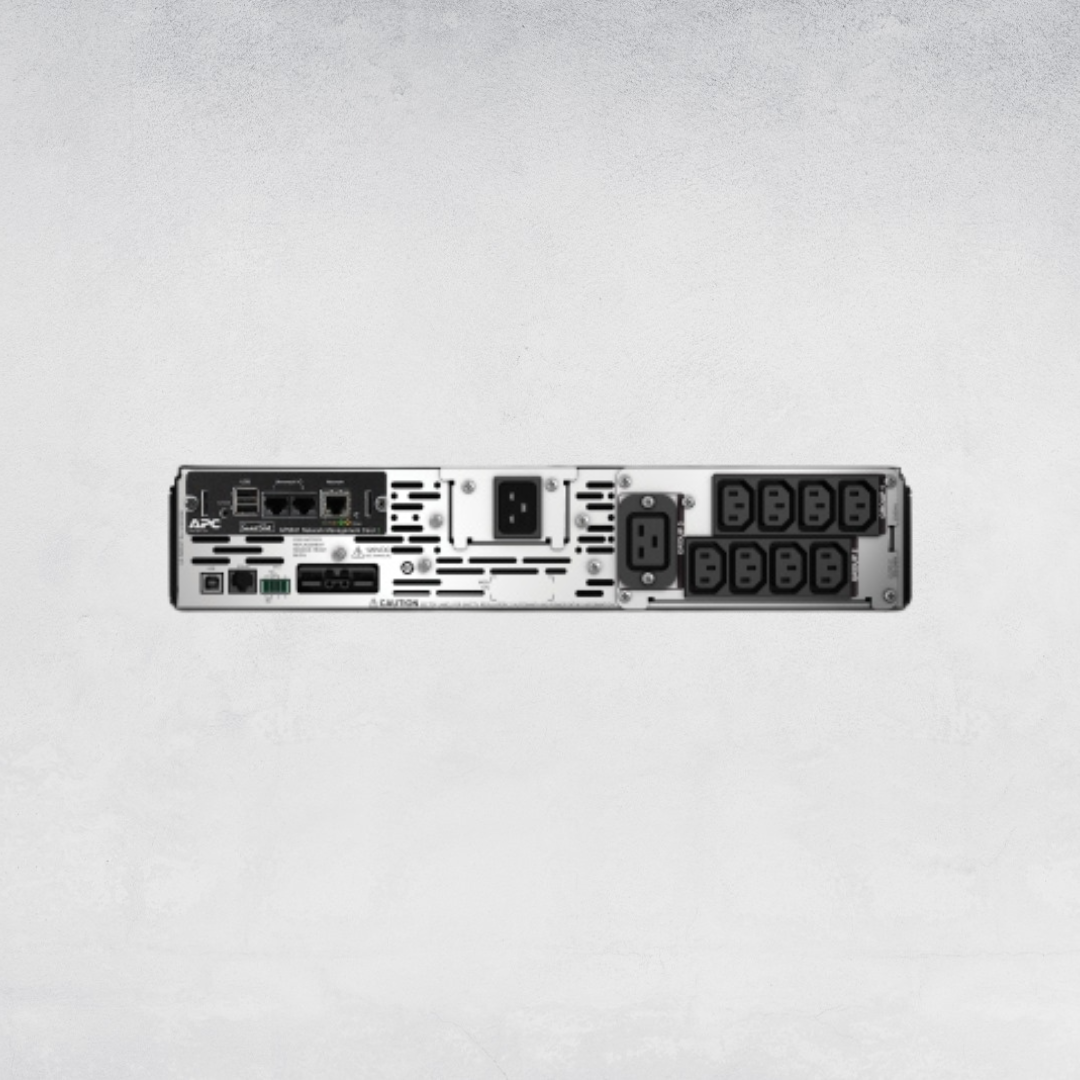

• Output Connections:
• 8 × IEC 320 C13
• 2 × IEC 320 C19
• Input Connection:
• IEC-320 C20
• Cord Length: 2.44 meters
📦 Dimensions & Weight
• Unit Dimensions (HxWxD): 178 × 432 × 483 mm
• Rack Height: 4U
• Net Weight: ±38.6 kg
• Shipping Weight: ±45.0 kg
• Mounting Options: Rack or tower convertible (rail kit included)
• Color: Black
✅ Certifications & Environment
• Certifications: CE, UL 1778, VDE, FCC Part 15 Class A, EN/IEC 62040-1/2
• Operating Temperature: 0–40°C
• Humidity Range: 0–95% (non-condensing)
• Altitude: Up to 3000 m
• Noise Level: ≤ 55 dBA
• Warranty: 3 years UPS / 2 years battery
