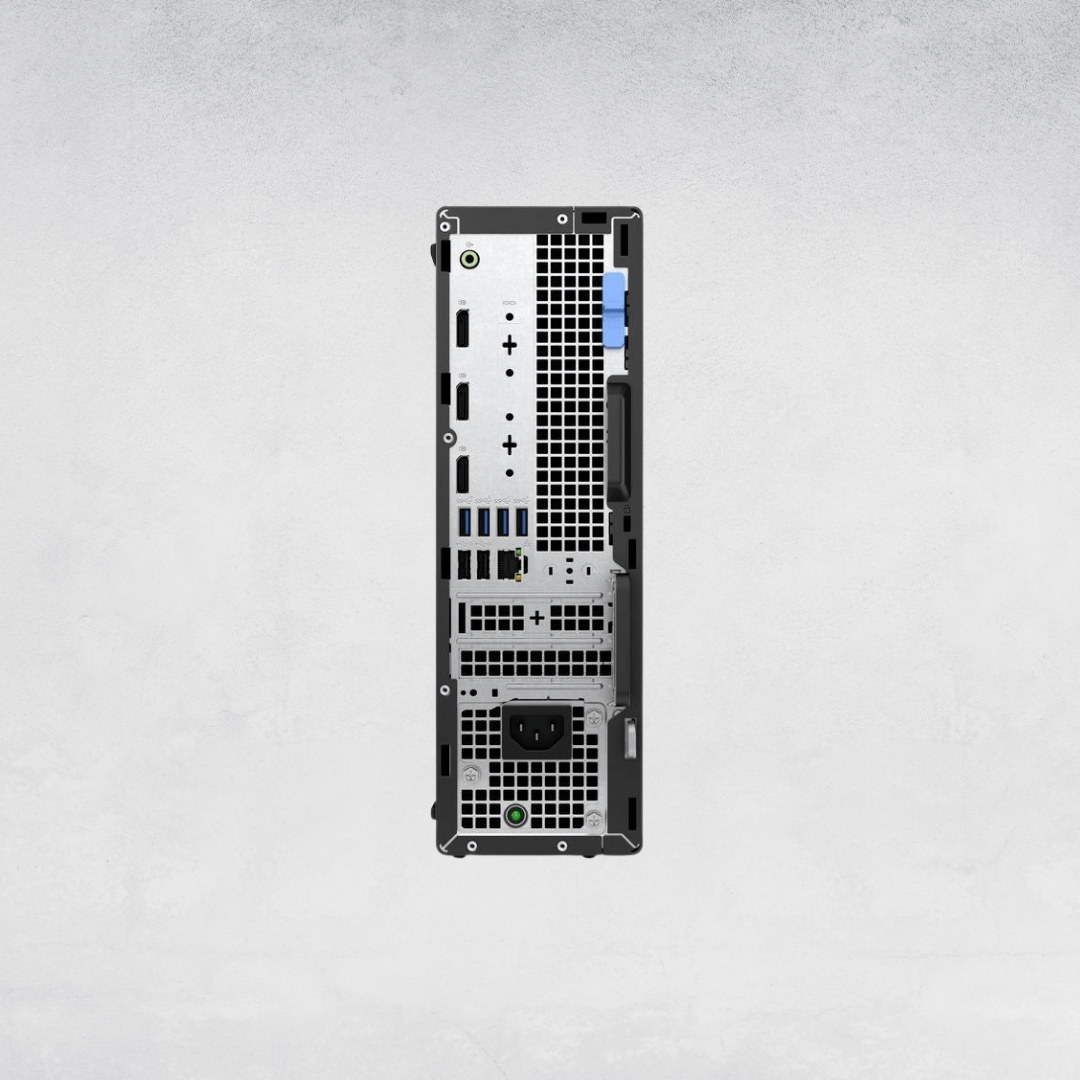

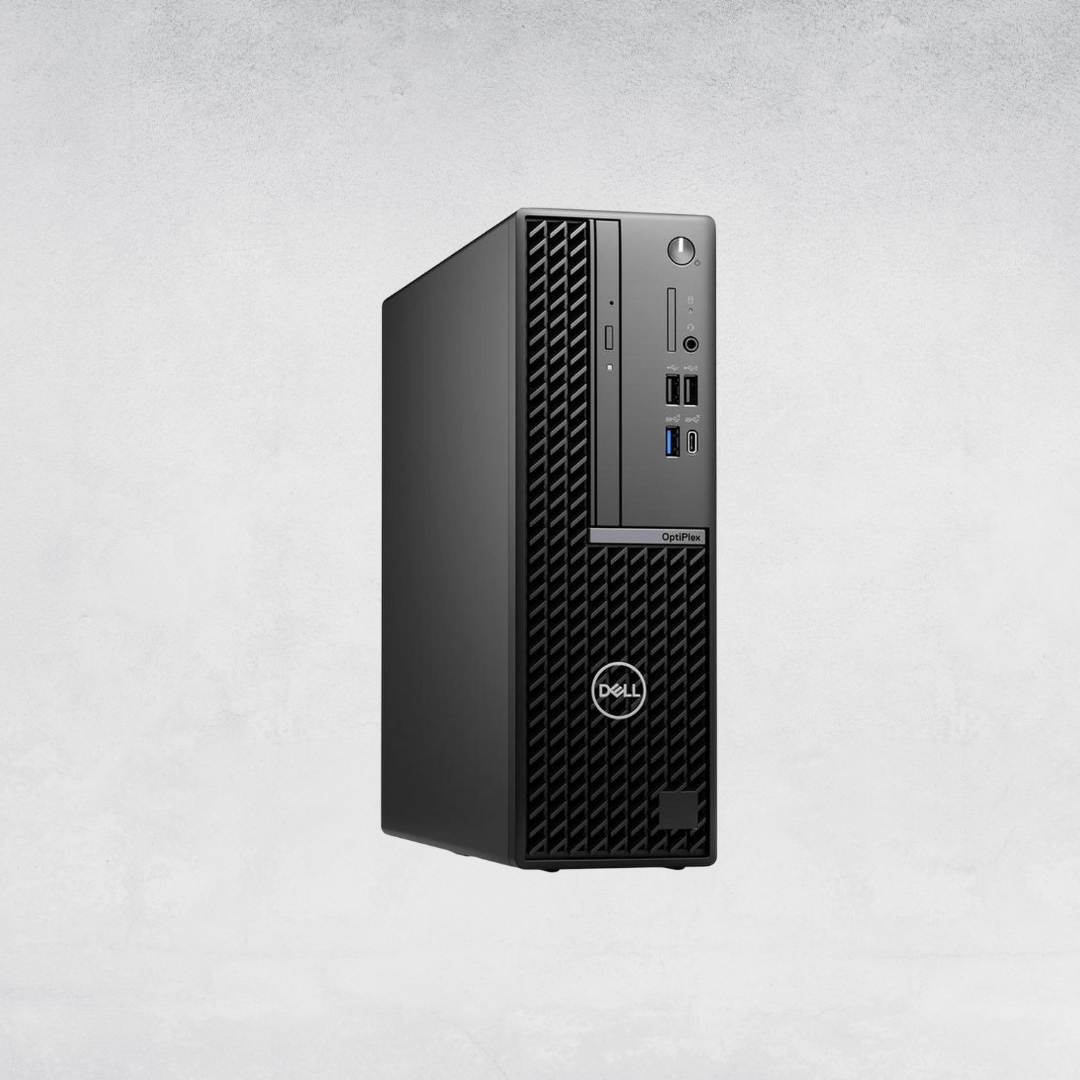

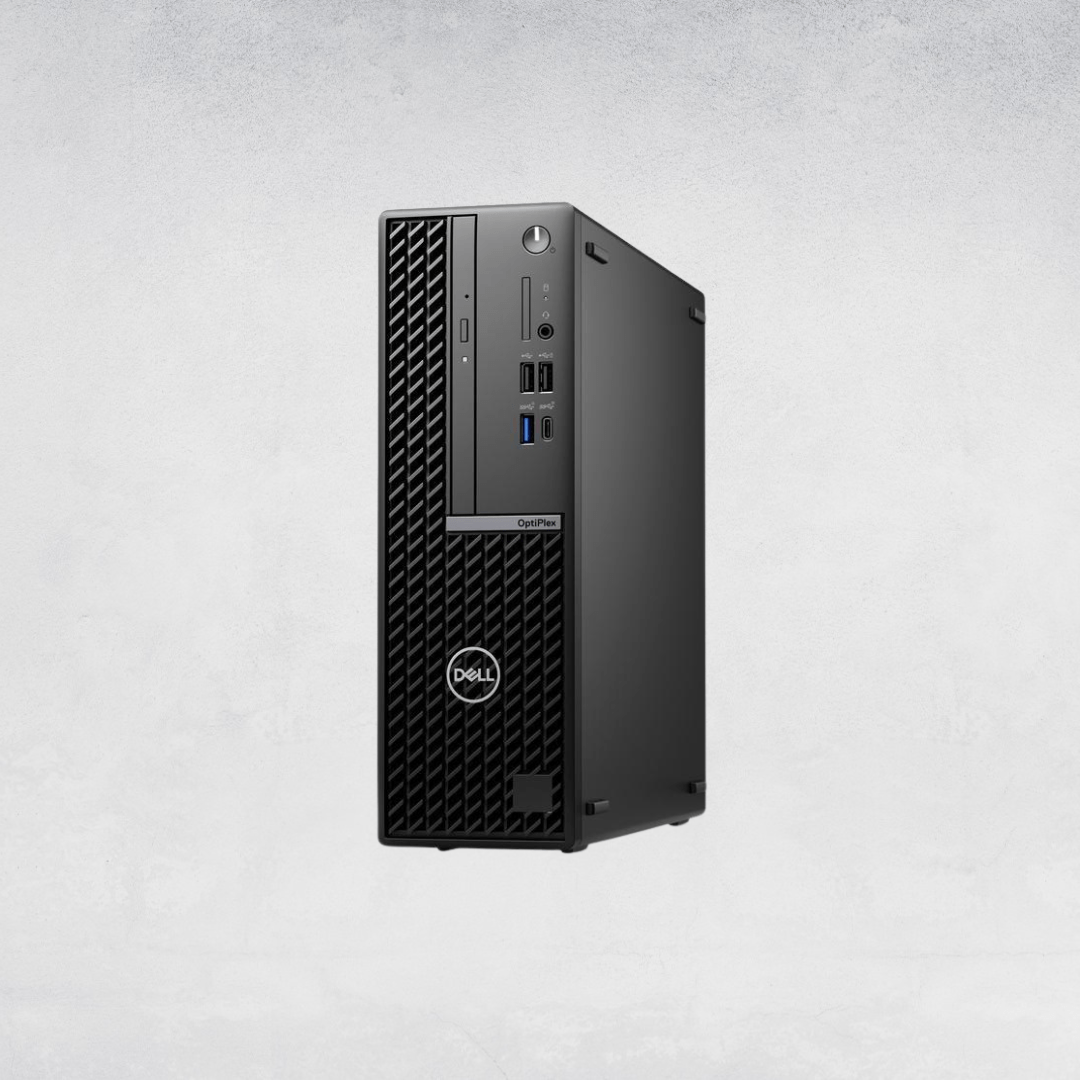

Dell OptiPlex 7010 Small Form Factor (SFF)

Description

Form Factor & Build

• Type: Small Form Factor (SFF)
• Dimensions: 290 × 93 × 312 mm (H × W × D)
• Weight: ~6.0 kg
• Chassis Material: Metal and plastic
• Cooling: Active cooling with optimized airflow
• Expansion Slots:
  • 1 × PCIe x16
  • 1 × PCIe x1
  • 1 × PCI slot
• Drive Bays:
  • 1 × 3.5″ internal
  • 1 × 2.5″ internal
  • 1 × slim optical drive bay

Processor Options

• Supported CPUs:
  • Intel® 3rd Gen Core i3/i5/i7
  • Intel® Pentium and Celeron
• Chipset: Intel Q77 Express
• Socket Type: LGA 1155
• TDP Range: Up to 77W

Memory

• Type: DDR3-1333/1600 MHz
• Slots: 2 × DIMM
• Max Capacity: Up to 32GB
• ECC Support: No

Storage

• Primary: SATA HDD or SSD
• Secondary: Optional 2.5″ SSD
• Max Capacity: Up to 2TB HDD + 512GB SSD
• RAID Support: Optional (RAID 0/1)

Graphics

• Integrated GPU: Intel HD Graphics (depends on CPU)
• Discrete GPU Options:
  • Low-profile NVIDIA or AMD cards (GT 1030, Radeon HD 7570)
• Max GPU Power: ~50W (low-profile only)

Connectivity & Ports

• Front Ports:
  • 2 × USB 2.0
  • 2 × USB 3.0
  • 1 × Headphone jack
  • 1 × Microphone jack
• Rear Ports:
  • 4 × USB 2.0
  • 2 × USB 3.0
  • 1 × RJ-45 Ethernet
  • 1 × VGA
  • 2 × DisplayPort
  • Optional serial and PS/2 ports

 Networking

• LAN: Intel Gigabit Ethernet
• Wireless (optional):
  • PCIe Wi-Fi card or USB dongle
  • Bluetooth via external adapter

Power Supply

• Wattage: 240W
• Efficiency: 80 PLUS Bronze
• Voltage Range: 100–240V AC

Security & OS

• TPM: TPM 1.2
• Lock Slot: Kensington lock support
• Operating System Options:
  • Windows 7 Pro
  • Windows 10 Pro (upgradeable)
  • Ubuntu (custom deployment)

Best For: Offices, schools, and government setups needing a compact, durable desktop for everyday business tasks.
