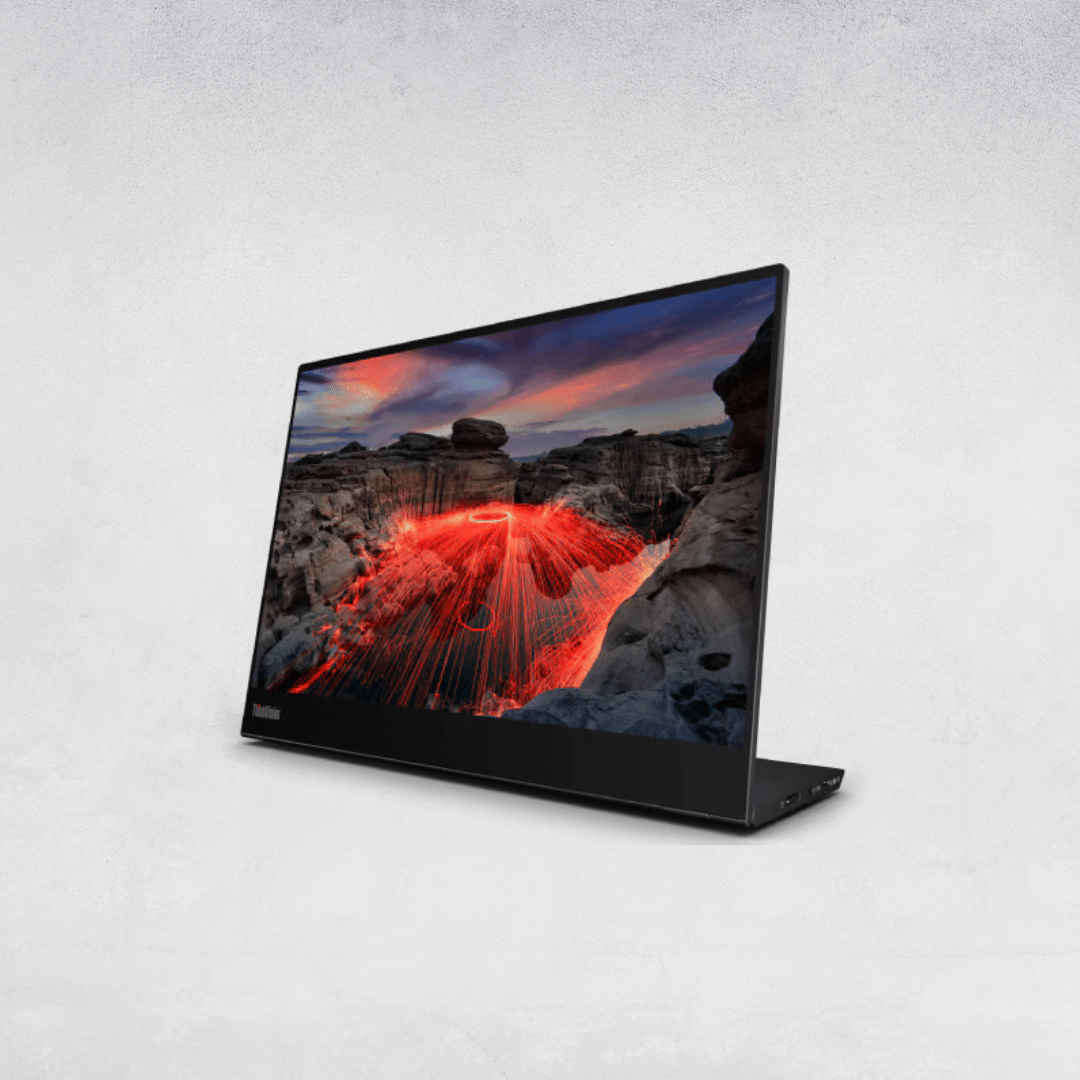

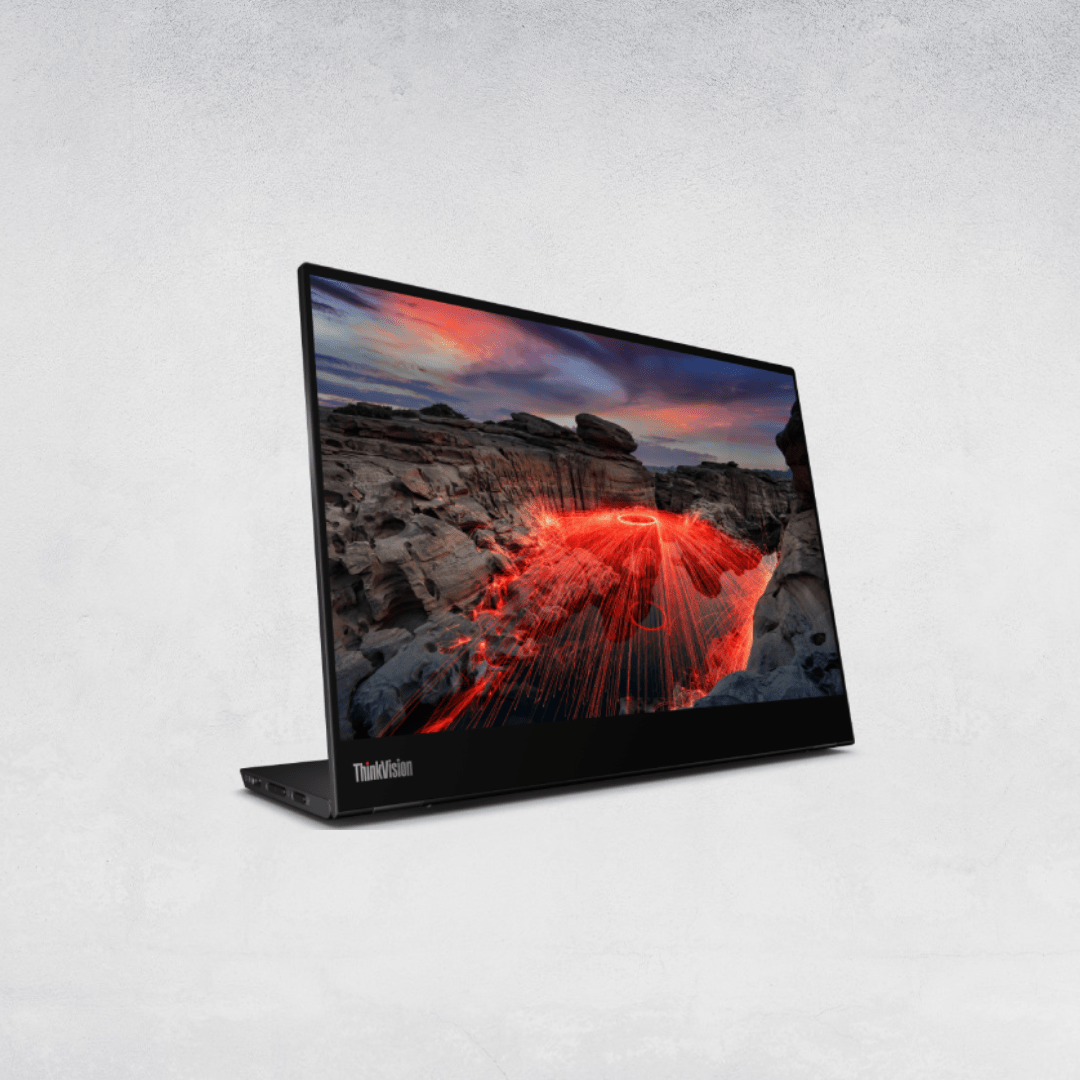

ThinkVision M14t

Description

Display

• Panel: In-Plane Switching (IPS)
• Backlight: WLED
• Size: 14-inch (screen dimension 309.31 × 173.09 mm)
• Resolution: Full HD 1920 × 1080 (16:9 aspect ratio)
• Pixel Density: 157 dpi (pixel pitch 0.1611 × 0.1611 mm)
• Brightness: 300 cd/m²
• Contrast Ratio: 700:1 (dynamic contrast 3,000,000:1)
• Viewing Angle: 178° horizontal / 178° vertical
• Response Time: 6 ms (Extreme Mode), 8 ms (Normal Mode)
• Refresh Rate: 60 Hz
• Color Gamut: 72% NTSC, 16.7 million colors, 8-bit (6-bit+FRC)

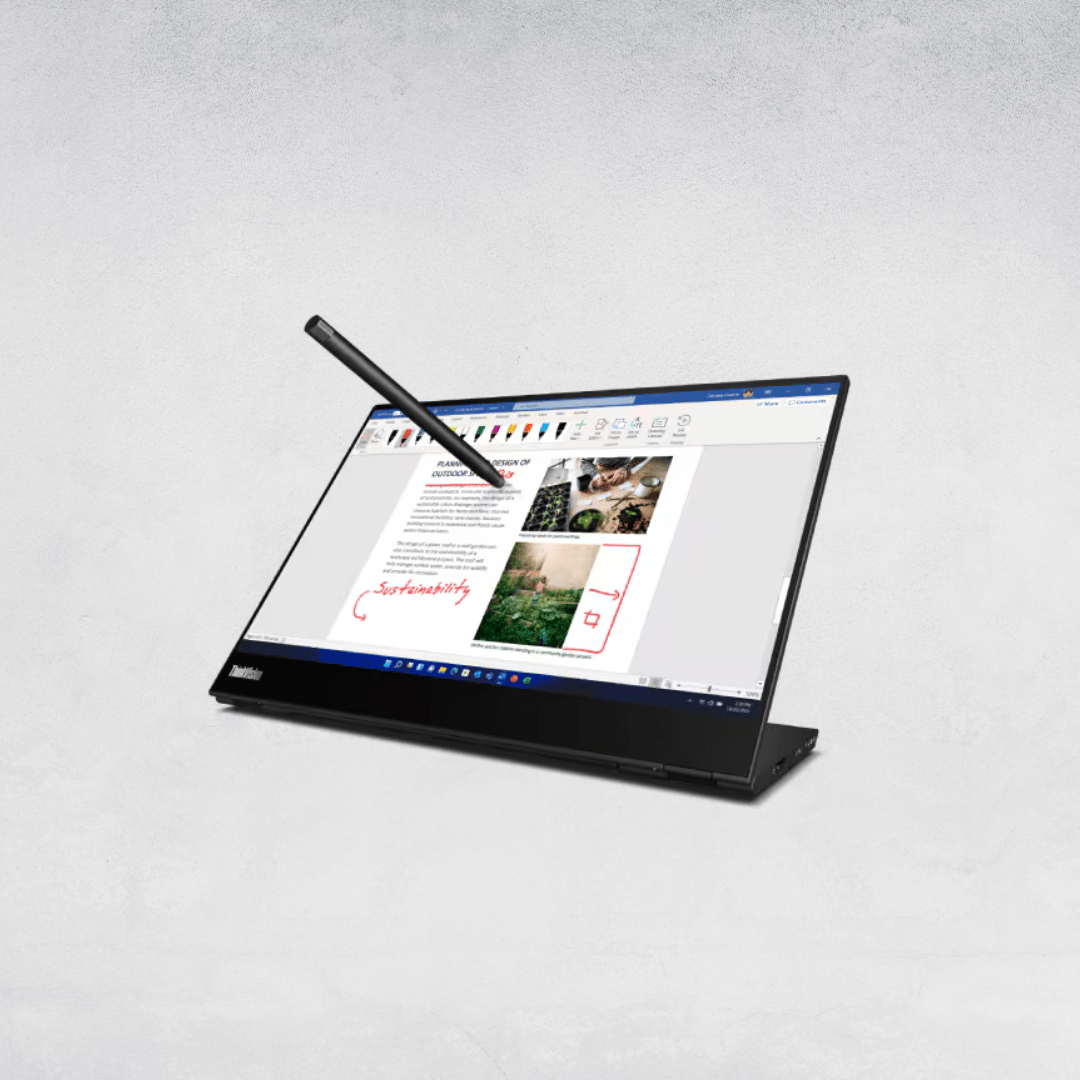

• Touch Support: 10-point multi-touch with Lenovo Active Pen stylus

Connectivity

• Ports:
  • 2 × USB-C 3.2 Gen 1 (DP 1.2 Alt Mode, power + data)
• Cable Lock Slot: Yes

Power

• Consumption: Typical 8W / Max 9.5W
• Sleep/Off Mode: <0.3W
• Energy Star Power On: 7.22W
• Power Delivery: USB-C pass-through charging supported

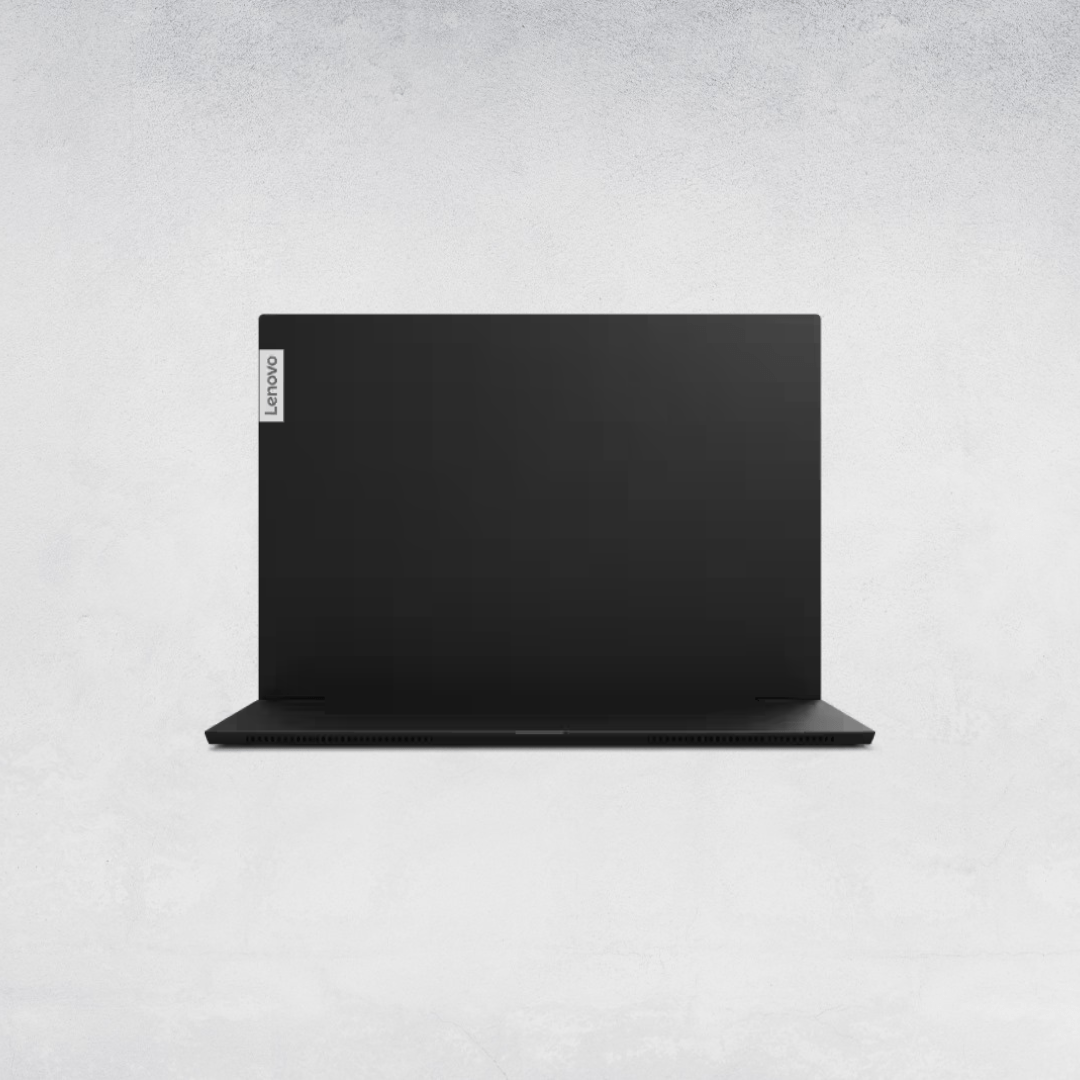

Design & Dimensions

• Case Color: Raven Black

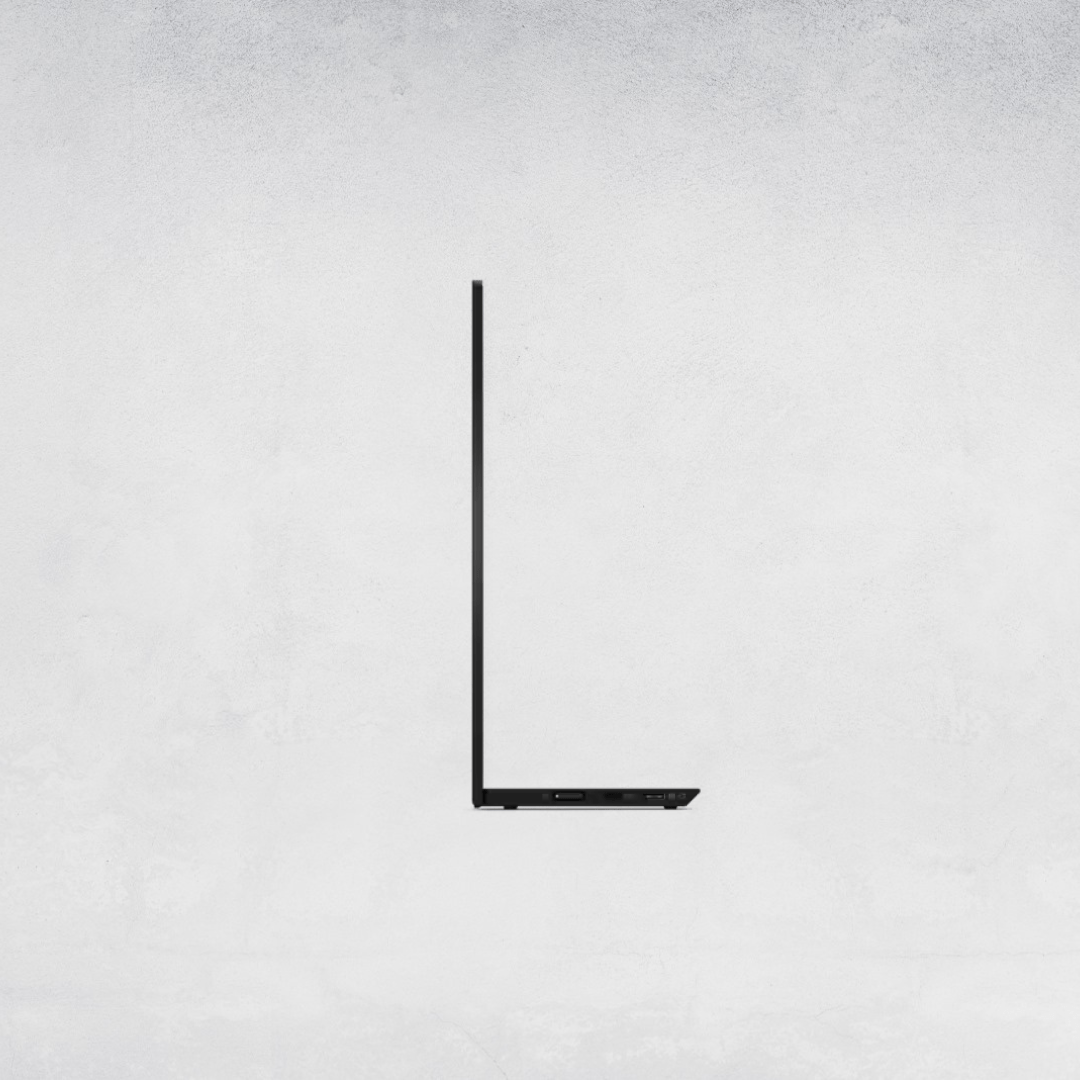

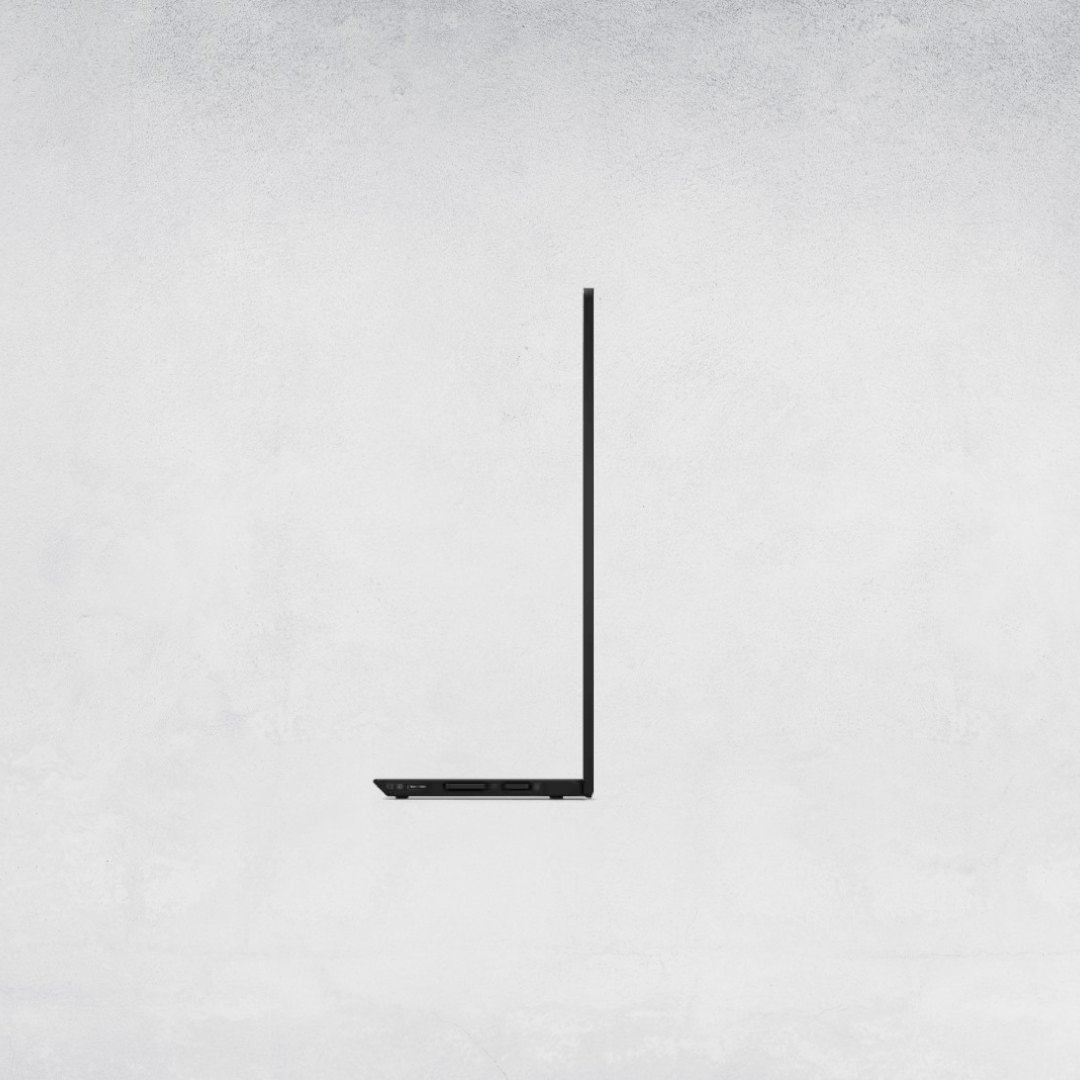

• Stand: Tilt adjustment (integrated kickstand)
• Dimensions: ~323.4 × 214.6 × 14.6 mm (without stand)
• Weight: ~698 g (1.54 lbs)
• Bezel: Slim, 6.1 mm side bezel (Gen 2 variant)
• Mounting: VESA mount support (100 mm, 2 holes)

Compatibility

• Operating Systems: Windows 7, 10, 11 supported
• Use Case: Portable secondary display for laptops, tablets, or smartphones with USB-C DP Alt Mode

📌 Summary

The ThinkVision M14t is a 14-inch portable FHD IPS touchscreen monitor with USB-C connectivity, stylus support, and lightweight design (698 g). With 300 nits brightness, 72% NTSC color gamut, and wide 178° viewing angles, it’s ideal for professionals needing a mobile dual-screen setup. Its pass-through USB-C charging and integrated kickstand make it practical for travel and flexible work environments.
