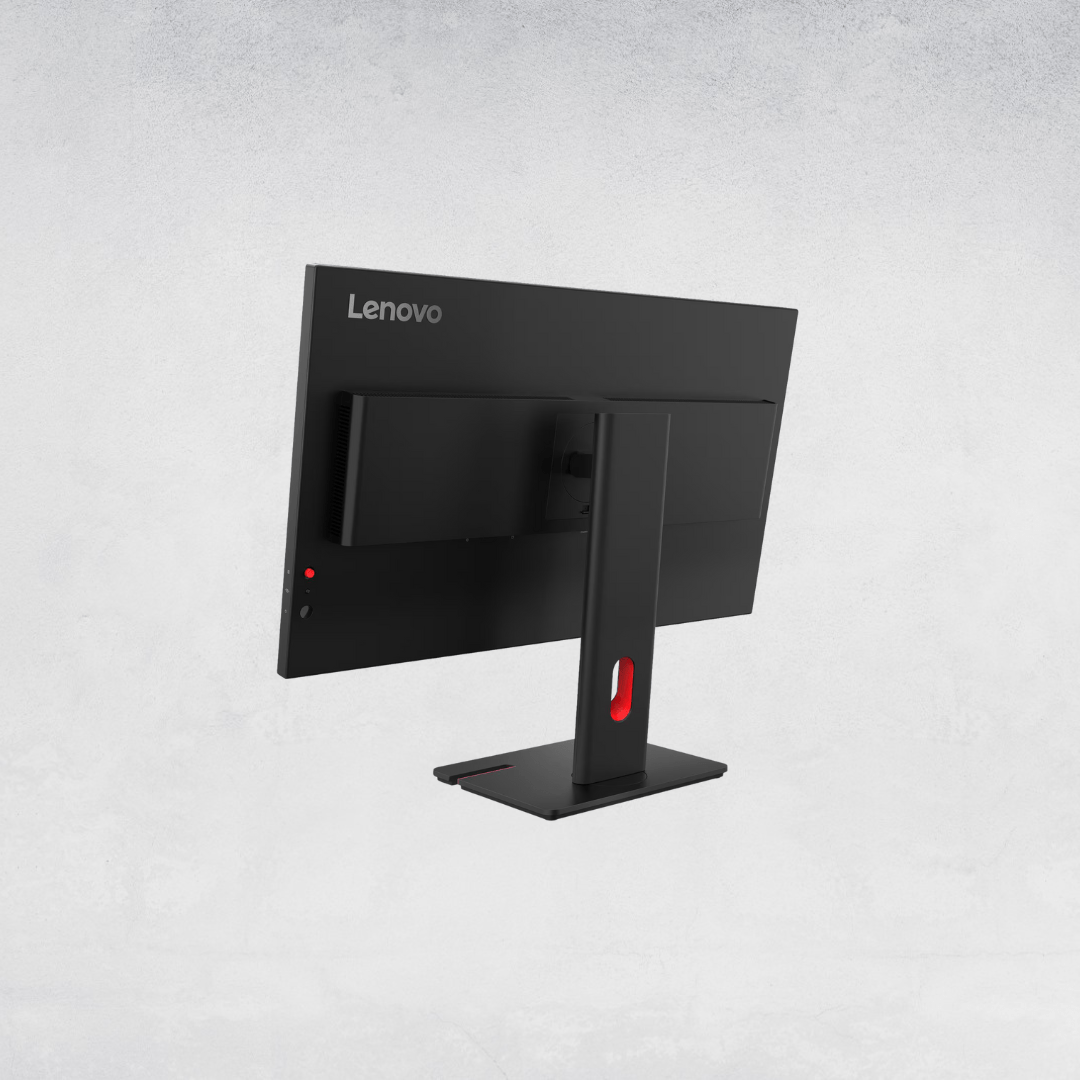

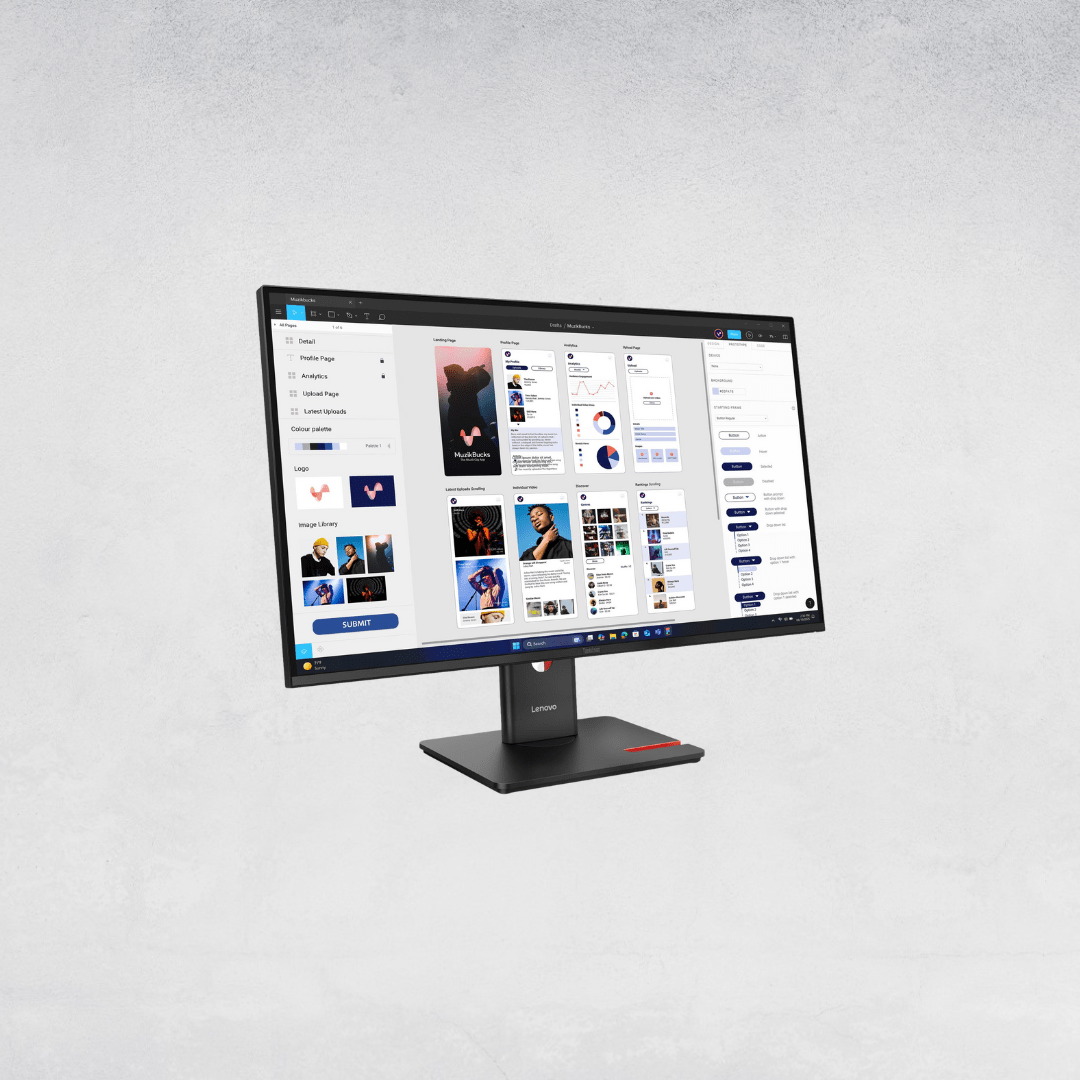

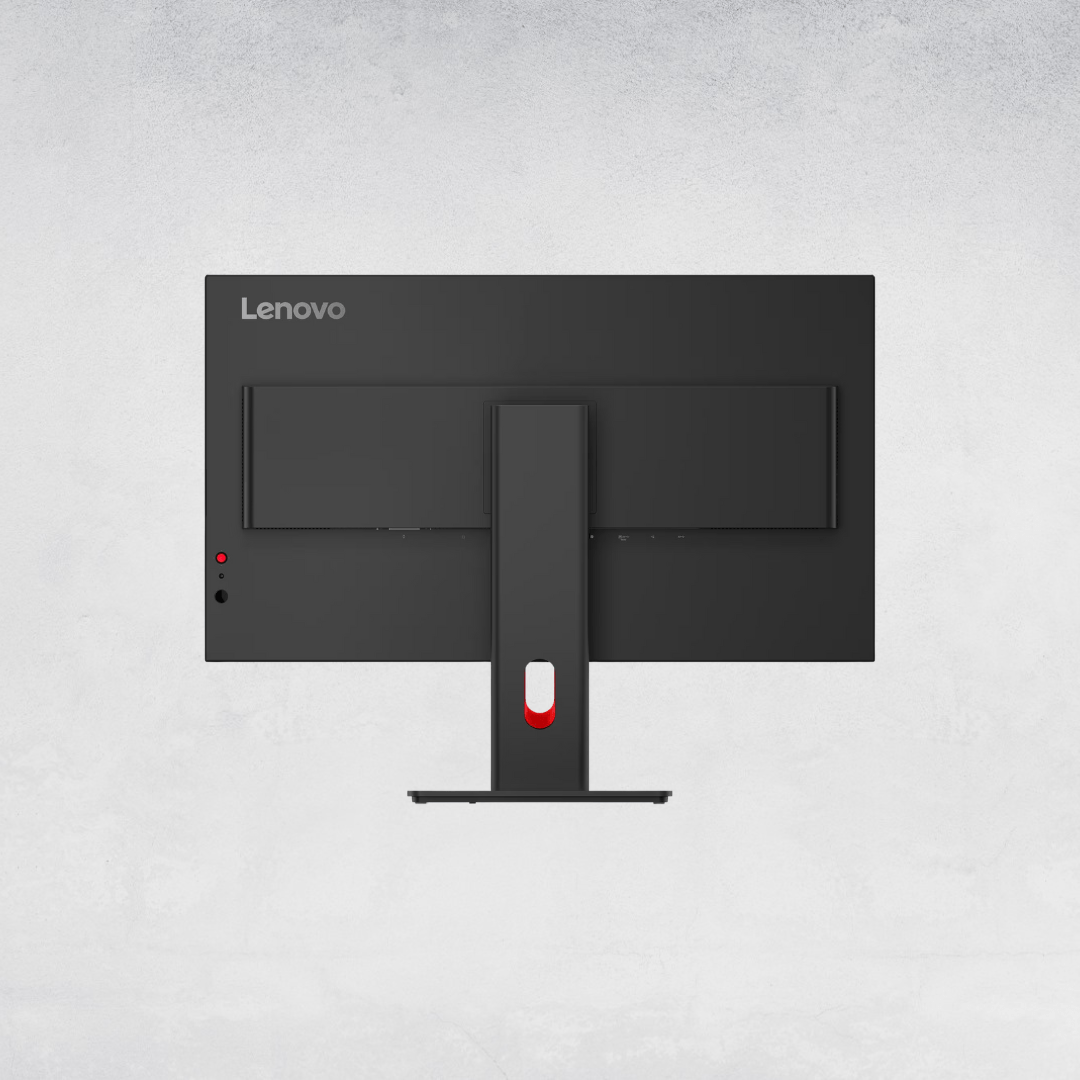

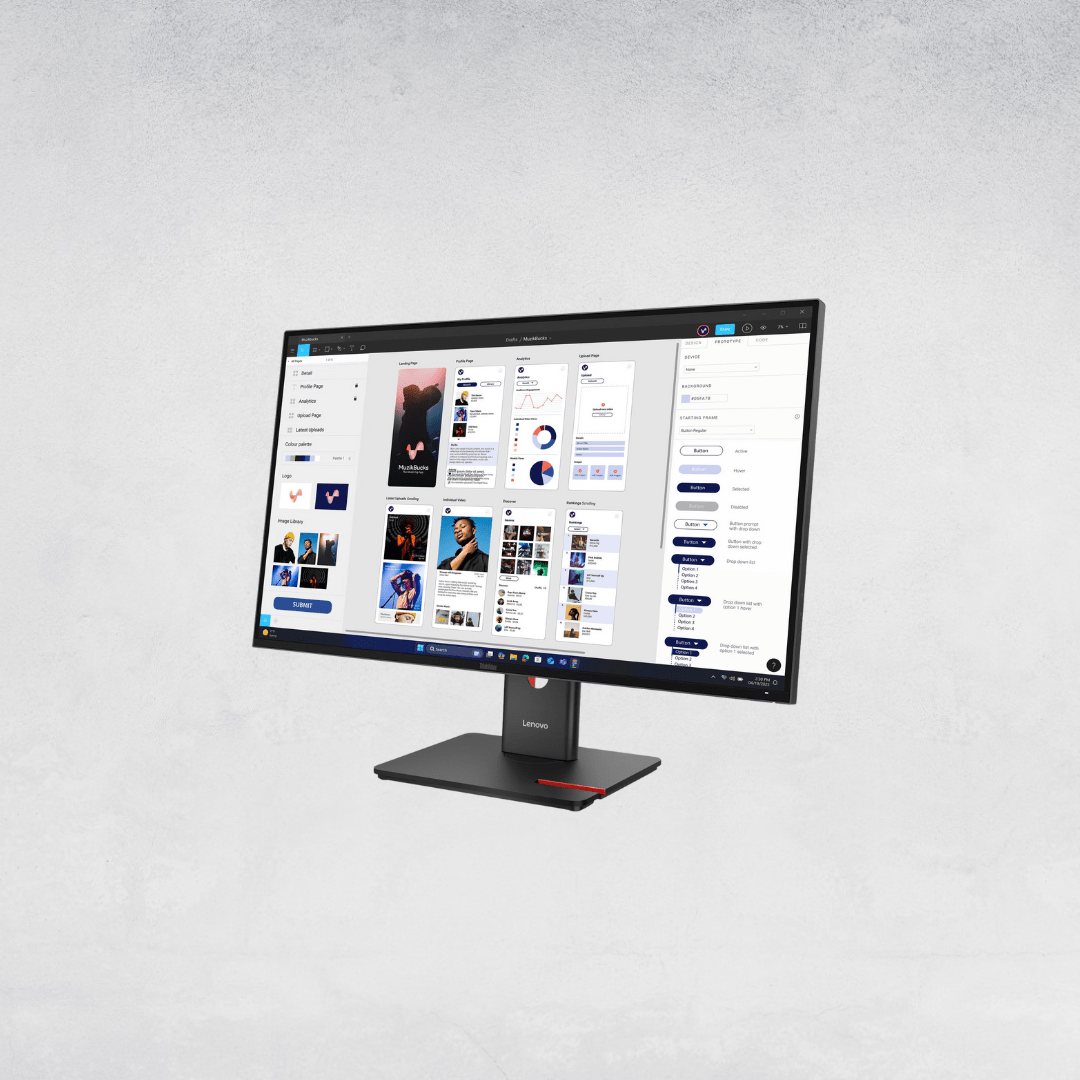

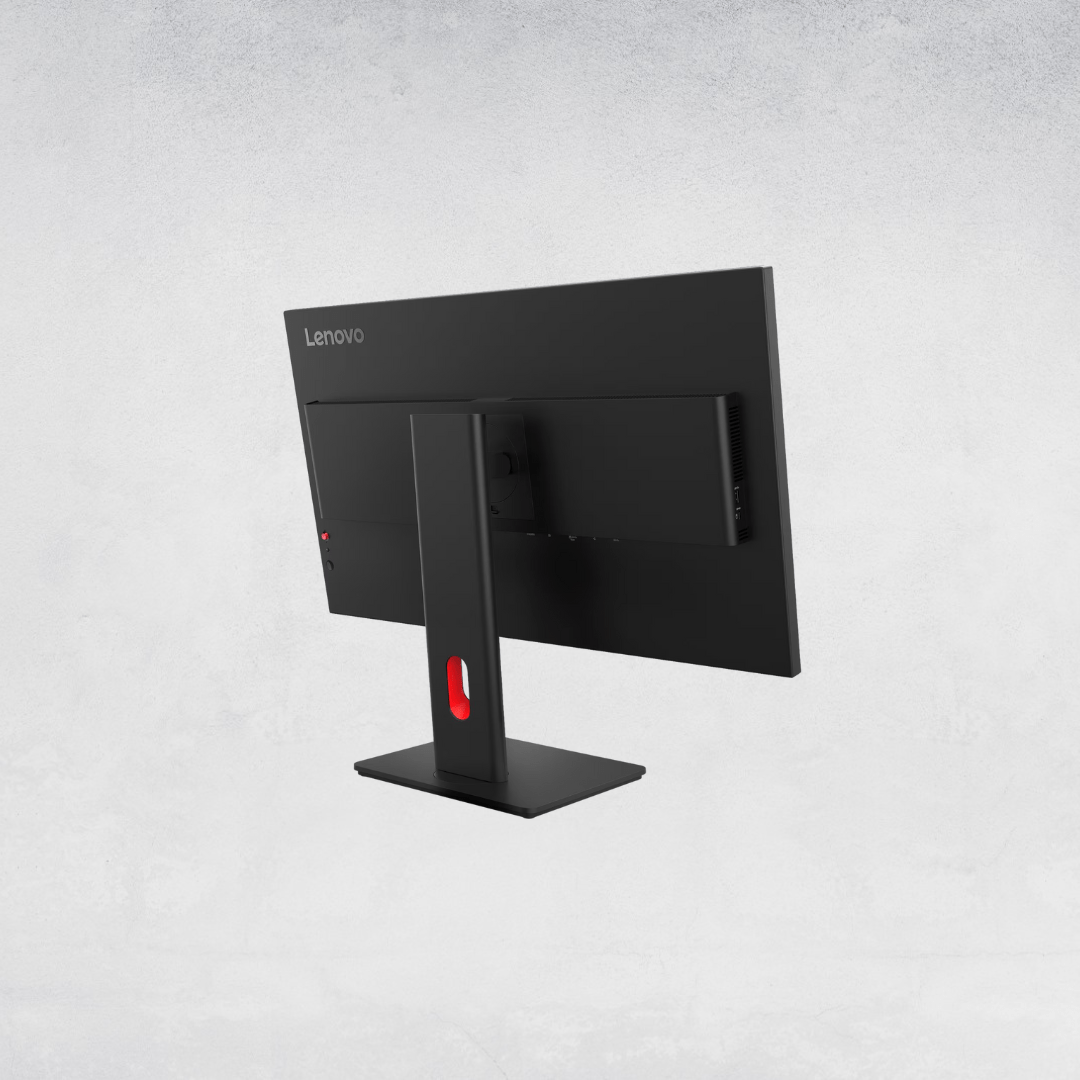

ThinkVision T32UD-40 (Above 30 inch)

Description

🎯 Key Specifications

Display & Panel

• Screen Size: 31.5 inches (active area ~697.3 × 392.2 mm)

• Panel: IPS, “4-side Ultra Thin” bezel

• Resolution: 3840 × 2160 (4K UHD)

• Aspect Ratio: 16:9

• Pixel Pitch: 0.1816 × 0.1816 mm (≈ 140 ppi)

Display Quality & Color

• Brightness (Typical): 350 cd/m²

• Contrast Ratio (Typical): 1500:1, Dynamic up to ~3,000,000:1

• Viewing Angles: 178° horizontal / 178° vertical

• Color Gamut: 99% sRGB & 99% BT.709

• Color Support: 10-bit (8-bit + FRC) – ~1.07 billion colors

• Screen Surface: Anti-glare (matte)

Response & Refresh Rate

• Response Time: ~4 ms (Extreme) / ~6 ms (Normal)

• Refresh Rate: 48–60 Hz (some sources show up to 75 Hz)

---

🧰 Design & Ergonomics

• Body Color: Eclipse Black

• Bezel: Top & sides ~2.0 mm; Bottom ~11.4 mm

• Dimensions with Stand:

  • Lowest: 714.2 x 218.0 x 439.3 mm

  • Highest: 714.2 x 218.0 x 594.3 mm

• Weight:

  • With Stand: ~9.2 kg

  • Head Only: ~6.3 kg

• VESA Mounting: 100 × 100 mm

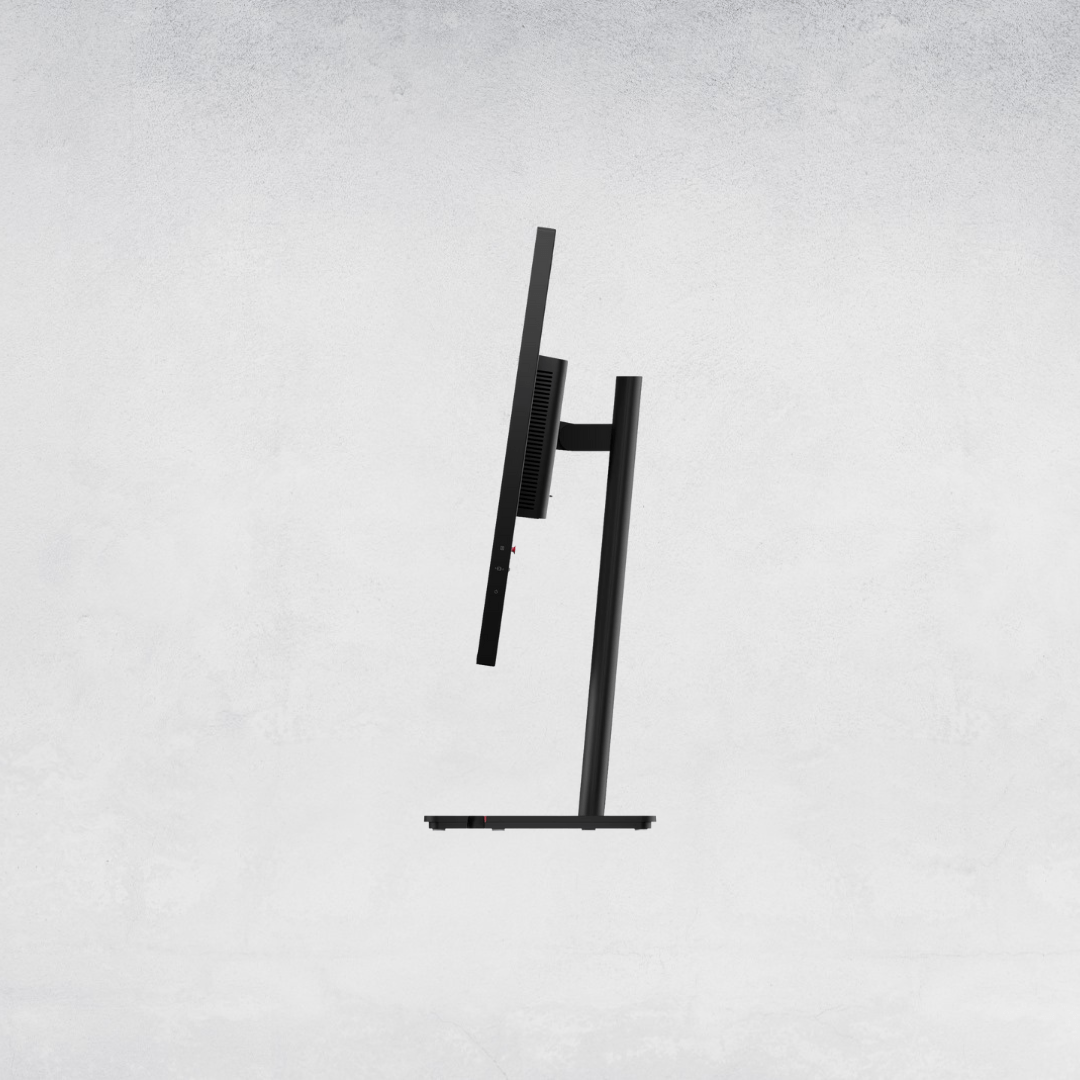

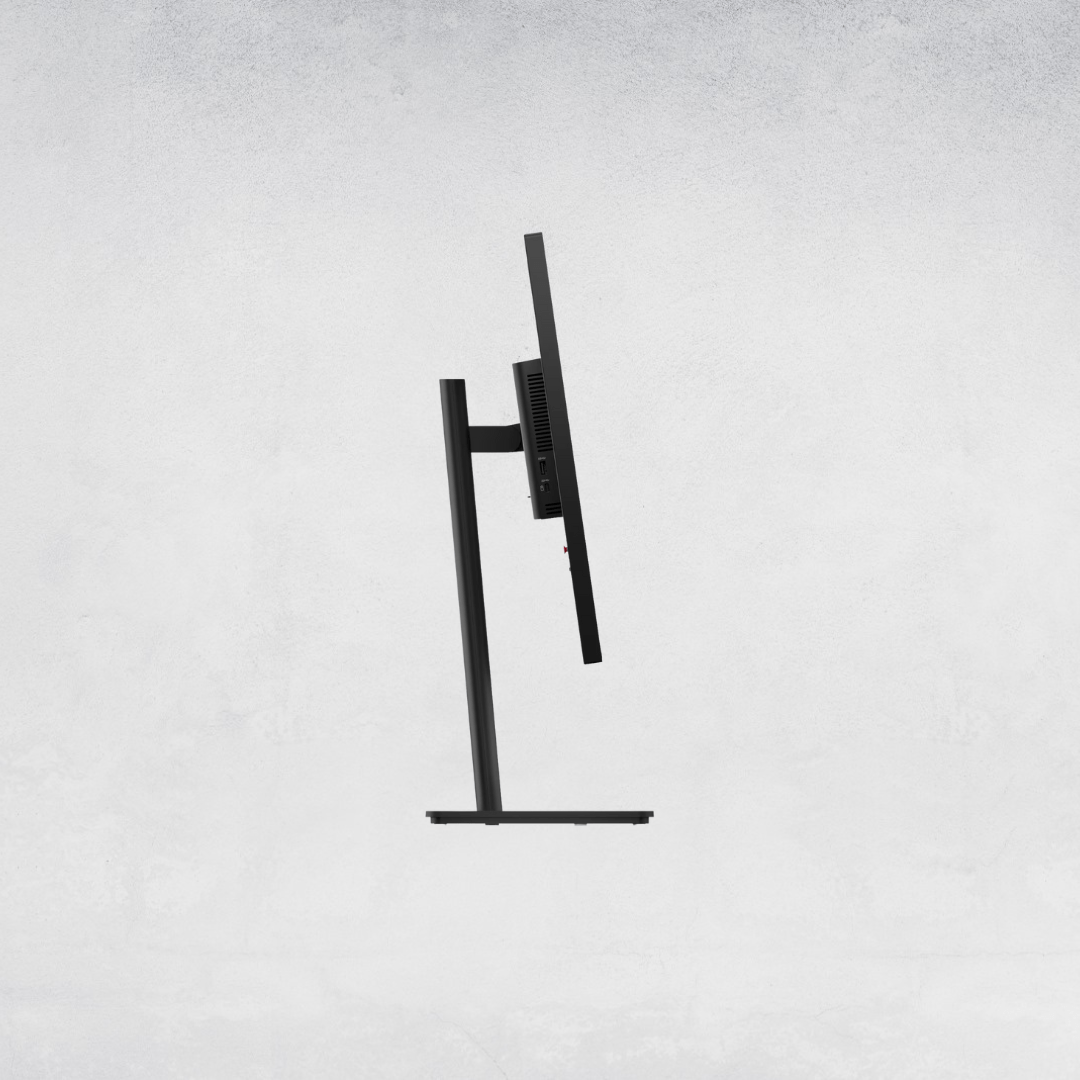

• Stand Adjustment:

  • Tilt: ‑5° to +23.5°

  • Swivel: ±45° (left/right)

  • Pivot: ‑90° to +90° (portrait-landscape)

  • Height Adjustment: up to ~155 mm

---

🔌 Connectivity & Additional Features

• Main Ports:

  • 1× USB-C upstream (10 Gbps / USB 3.2 Gen 2) with PD up to 100 W + DisplayPort 1.4 Alt Mode HBR3

  • 1× USB-C downstream (5 Gbps) with PD 15 W (data only)

  • 3× USB-A downstream (5 Gbps / USB 3.2 Gen 1) (1 port BC 1.2)

  • 1× HDMI 2.1 TMDS (supports 3840×2160@60Hz)

  • 1× DisplayPort 1.4 HBR3 (max bandwidth ~32.4 Gbps)

  • 1× RJ-45 Gigabit Ethernet (network hub)

• Audio & Multimedia: No built-in speakers (optional soundbar)

• Additional Features: HDR10 compliance, Eye-care (Low Blue Light hardware solution), ThinkColour software support

---

⚡ Power & Environmental

• Power Consumption: Typical ~25.5 W; Max ~195 W

• Sleep/Off Mode: <0.5 W; Switch-off: <0.3 W

• Input Voltage: AC 100-240 V, 50-60 Hz

• Environmental Certifications: ENERGY STAR, EPEAT Gold, TCO Certified Gen 10 / TCO Edge

---

✅ Key Benefits & ❗Things to Note

Benefits:

• 4K UHD resolution on a 31.5″ panel → offers ample and sharp workspace.

• High color gamut (99% sRGB / BT.709) → ideal for creative work.

• Comprehensive connectivity hub including USB-C with PD 100 W → perfect for docking laptops.

• Full ergonomics: tilt, swivel, pivot, height adjust.

• Eye-care features and strong environmental certifications.

Things to Consider:

• Maximum refresh rate is relatively standard (~60Hz) → may be less ideal for competitive gaming.

• Large size (31.5″) → requires ample desk space.

• Power consumption can be high under maximum load.
