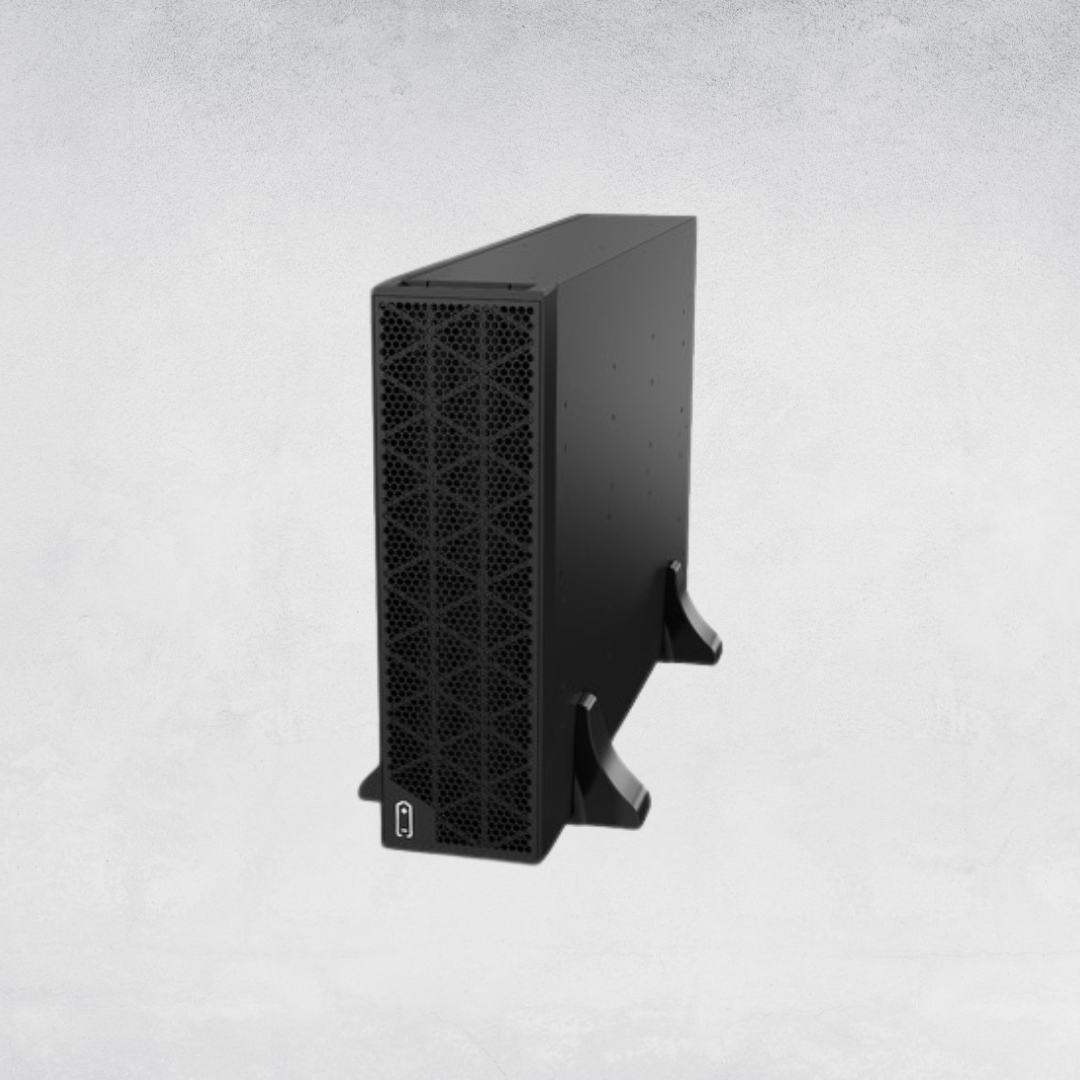

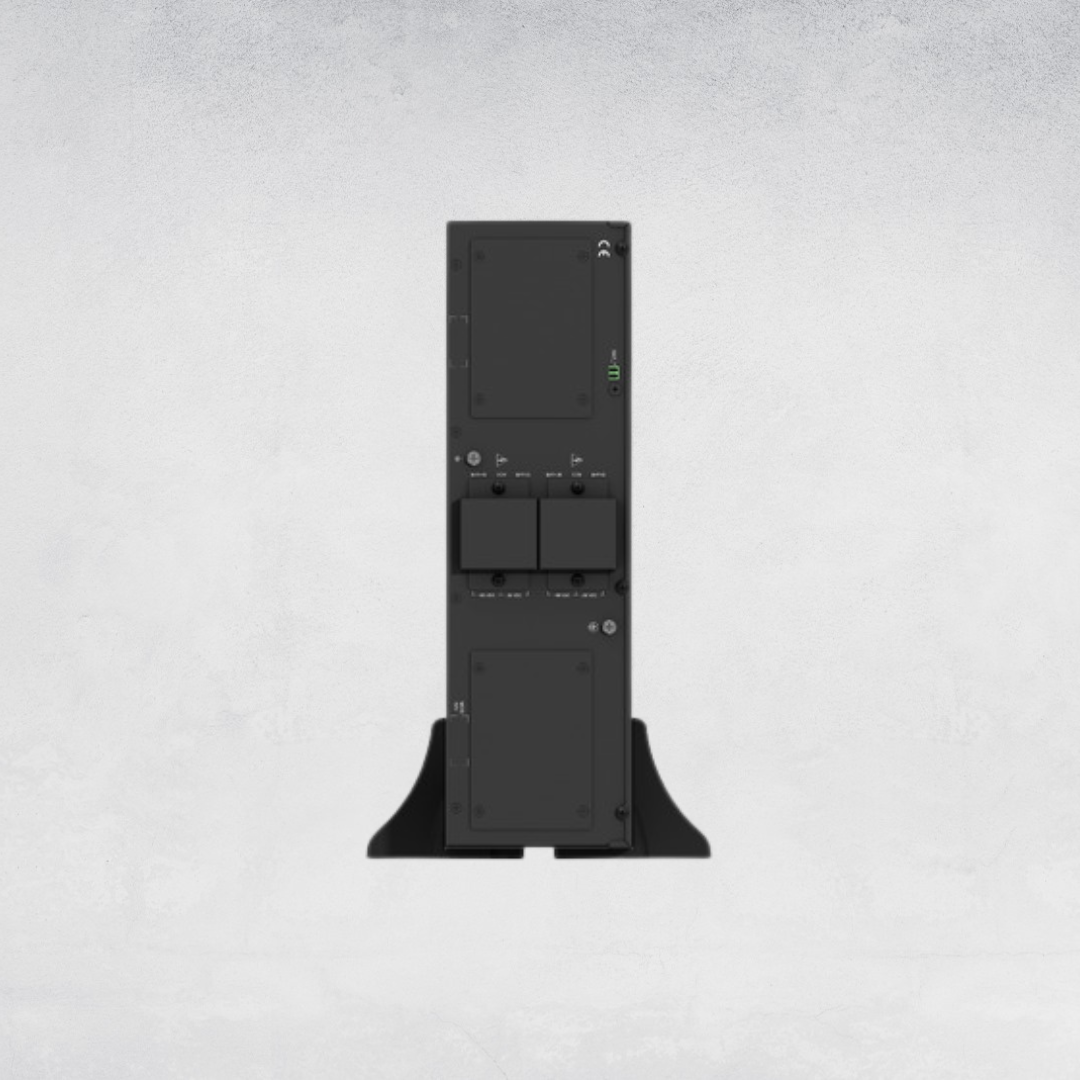

APC Smart-UPS RT 192V 32*5Ah BP /wo ralikit (SRTG192XLBP4)
APC Smart-UPS RT 192V Battery Pack (SRTG192XLBP4) High-capacity external battery pack with 32×5Ah sealed lead-acid cells, delivering 192V DC for extended runtime. Designed for APC Smart-UPS RT 5–10kVA models. Rackmountable 3U form factor, scalable backup support, and ideal for mission-critical IT environments. Rail kit not included.
Description
⚙️ Key Specifications
• Model: SRTG192XLBP4
• Product Type: External Battery Pack
• Compatible UPS Models: APC Smart-UPS RT 5kVA / 6kVA / 8kVA / 10kVA
• Battery Voltage: 192V DC
• Battery Type: Sealed Lead-Acid (VRLA), maintenance-free
• Battery Quantity: 32 × 5Ah cells
• Battery Slots (Filled/Free): 4 / 0
• Battery Replacement Cartridge: APCRBC174
• Battery Expansion: Supports up to 4 packs in parallel
• Runtime Extension: Yes, scalable with multiple packs
🧩 Features & Equipment
• Form Factor: Rackmount (3U height)
• Mounting Mode: Rack-mounted or standalone stack
• Rail Kit: Not included
• Included Accessories:
• Installation guide
• Warranty card
• USB Compatible: No
• Color: Black
📦 Dimensions & Weight
• Unit Dimensions (HxWxD): 13 × 44 × 68.3 cm
• Net Weight: ±91 kg
• Shipping Dimensions: 33.5 × 78 × 58 cm
• Shipping Weight: ±101.5 kg
✅ Certifications & Environment
• Certifications: CE, EN/IEC 62040-1
• Operating Temperature: 0–40°C
• Humidity Range (Operation & Storage): 0–95% (non-condensing)
• Altitude (Operation): Up to 2000 m
• Altitude (Storage): Up to 15240 m
• Warranty: 2 years repair or replace
